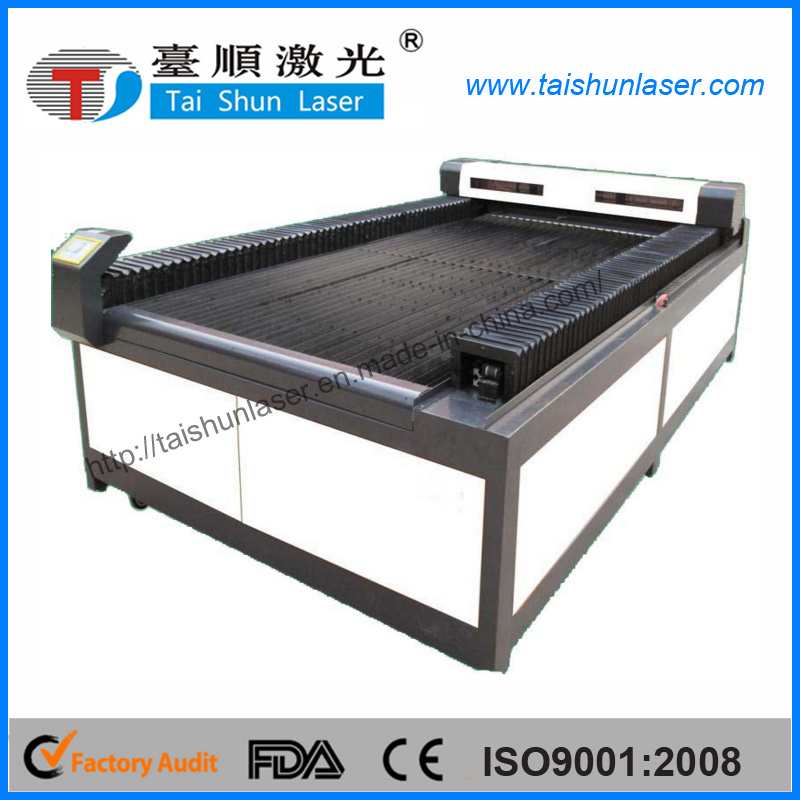

Home Textile CO2 Laser Cutting Machine with Conveyor System
Price: |
US $ 4000-6500/Piece |
Trade Terms: |
FOB,CIF,EXW |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union,Paypal |
Prod Model: |
TSC-300210LD |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Applied Material: |
Fabric, Leather, PU, Textile, Inflatables |
Applied Field: |
Toy, Auto Accessories, Home Textiles |
Working Table: |
Conveyor |
Working Side: |
3000mmx2100mm |
Laser Type: |
CO2 Glass Laser Tube |
Graphic Format Supported: |
Ai, BMP, Dxf, Plt, etc |
Cutting Depth: |
25mm Leather |
Laser Power: |
80W |
Cooling Way: |
Water Chiller Cw3000 |
Guarantee: |
One Year Fee Maintenance |
Product Description
Feature:Hardware partsAdopt imported patent guide rail for critical sections,which has special adjust & calibration method.It has characteristic for small kerf ,high speed and high accuracy Movement partsIt has unique patented transmission system,improve the stability of transit system to achieve instantaneous liner speed and self-regulation function according to liner to curve,ensure the cutting edge is smooth and the curve natural Optical PathIt adopt imported focus lens and reflecting mirrors,and it can reach mininum energy lost. Cooling systemIt adopted closed water cooling system to ensure stable operation of laser tube for a long time.It also can choose professional water chiller,to ensure recycling water temperature,making sure laser beam stably and working long Software systemAutomatic intelligent layout functions,double head shiftAutomatic typesetting files to achieve continuous feeding and cutting Through a simple copy collection devices to achieve fast copy and marker function,convenient for staff operationTechnology parameter:Laser type | Glass Co2 laser tube | Movement system | Servo system |
Output power | 80W | Cooling system | Water cooling |
Working area | 3000mmx2100mm | Electrical Voltage | AC220V+-5% 50/60hz |
Working table | Conveyor working table | Supported file format | AI,BMP,PLT,DXF,DST,AI,BMP,PLT,DXF |
Working speed | Adjustable | Standard accessories | 2 set 550W exhuast fans |
Position accuracy | plus minus 0.1mm | Optional accessories | 100w,110W,130w,150w laser tube,auto feeding system |
Sample
We have also 160300,160250,180300,320600 working format
Laser cutter application:
1. Industrial textile: filter cloth, bolting cloth, filter fabric, nonwoven, glass fiber, felt, synthetic fibre, fabric ducting, polypropylene (PP), polyethylene (PE), polyester (PES), polyamide (PA), cement packing, geotextile, coated fabric, sponge, insulating material and other industrial flexible materials.
2. Non-woven fabrics for health & medical: insulating material, glass fibre, polyester fibre, Microfiber, Cleanroom Wiper, Glasses cloth, Micro-fiber Wiper, non-dust cloth, clean wiper, paper diaper, etc.
3. Home furnishing fabrics: upholster, carpet, mat, floor rug, mattress, curtain, doormat, valance, wall paper, tablecloth, bed sheet, bedspread, counterpane, dust cover, sofa fabric, etc.
4. Garment fabrics: sportswear, swimwear, diving suit, exposure suit, liner, lining, adhesive interlining, wadding piece, case-hardened cotton, synthetic leather, genuine leather, etc.
5. Automotive interiors: car seat cover, car cushion, car mat, car carpet, car rug, pillowcase, air bag, auto dustproof cover, seat belt (safety belt), etc.
6. Outdoor products: polyester, nylon, PE/PVC/TPU/EVA/Oxford fabric, Oxford polyester cloth, PVC coated fabric, Tarpaulin, canvas, PVC tarpaulin, PE tarpaulins, Sail cloth, Inflatable products, tents, Inflatable toys, Inflatable castle, Inflatable boats, surf kites, fire balloon, parachute, paraglider, parasail, rubber dinghy, canopy, awning, etc.
Order Notice:
Please let us know following informations:
1. What materials you want to cut ?
2. What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials ?
4. After cutting, what will be the material used for?
5. Are you an end user or retailer?
According to your above information,we'll recommend the most suitable machine to you.
FAQ:
Q1.What's the guarantee for the product quality?
A:We offer one-year free maintenance services for our machines. Fault parts with the valid period will be replaced for free except for consumable parts.
Q2. Is it easy to operate for the new user ?
A: It is very easy ,we offer you operating manual in English ,also our technician can help you via MSN ,Skype or other instant communication tools.If problems in the process of operation,pls keep your lens and mirrors be clean ,then check your laser tube and talk details to us.
Q3. How to maintain the machine?
A: After 3 hours working, it's better close 10 minutes.
B, Keep lens and mirrors clean.
C, The water for laser tube should keep clean and lower temperature, in winter you need input antifreeze.
Q4 .How about the life-span of the laser tube ?
A: If you operate the machine rightly, it can reach to 1500 or 3000hours.(RF metal laser tube can max to 10000hours),It depends on your usage
For example, if it works 8 hours per day, the detailed data as follows:
1, If you set the power at 20%-30% of the total power, the service life is about 1-2years
2, If you set the power at 40-50% of the total power, the service life is about 1 year
3, If you set the power at 70%-80% of the total power, the service life is about 6-8 months
Q5: How can I know the power of the laser tube has been exhausted?
A: you can check the color of the laser beam ,new and strong laser tube is purple when working, otherwise it will be white color.
Q6: Is it harmful to human body when in operation ?
A: It is not harmful, as long as avoid to see it directly
7:How to distinguish laser tubes with different powers and applications?
A: 1. Laser tube length(relatively speaking, the longer, the bigger/stronger)
2. Laser tube diameter(relatively speaking, the thicker,the stronger)
3.The machine with bigger laser tube can cut deeper&more quickly, also its light spot is bigger, So, it is better to choose low-power for engrave, such as 40w, 50w, or 60w and strong power for cutting.
Guarantee&After-sale service
1, Best components, perfect technics and strictly ex factory inspection.
2, 1 year guarantee for whole machine.
3, 24 hours (all days) technical support by call ,e-mail, skype or computer
remote control service by engineer.
4, Multi-language software, operation CD and detailed User Manual together with machine.
5, We offer free training in our factory, engineer oversea service is available if you like.
![](/proimages/44f3j00WERaGfokIcqB/home-textile-co2-laser-cutting-machine-with-conveyor-system.jpg)

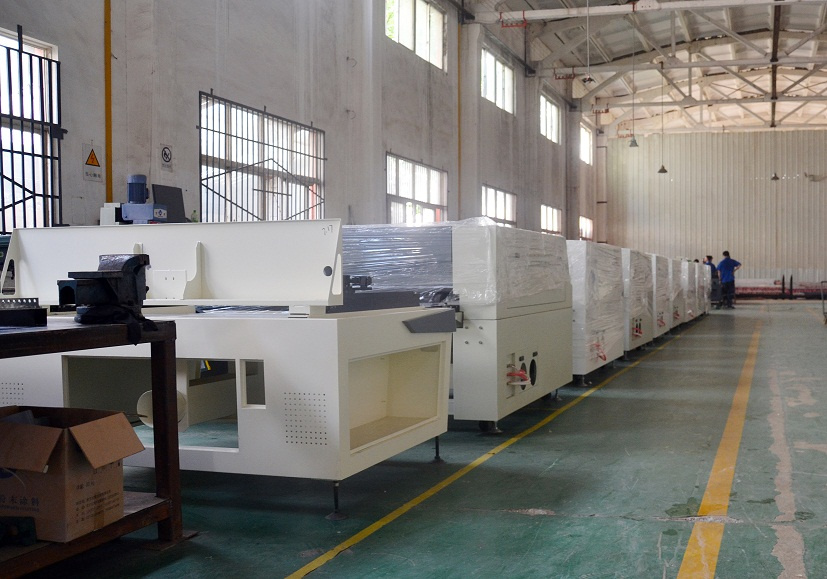

Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.
Taishun company has strong Technical force and established set of perfect quality Management system, passed ISO9001: 2008 Quality Management System Certification, BV authentication, SGS and National Mandatory Product "3C" certification, which has reliable quality.
We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser metal cutting machine, YAG laser metal cutting machine, CO2 laser cutting and engraving machine, Fabric Flatbed laser cutting machine, Conveyor working table machine, laser marking machine and so on.
Taishun laser are good at produced medium and small laser power laser cutting machine, specially to supply one whole sets of laser processing solution scheme and related facilities for customers in plush toys, leather cutting, plush fabrics, automobile, textile, textile clothing, advertising handicrafts, electronics, medical equipment and etc. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. To create a new Second-Generation small power laser cutting machine with more rapid and refinement manufacturing.
