Household Carpet Hotel Carpet CO2 Laser Cutting Machine 3200mmx6000mmm
| Price: |
US $ 4000-5500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |
Product parameter:
Laser Type:CO2 glass laser tube

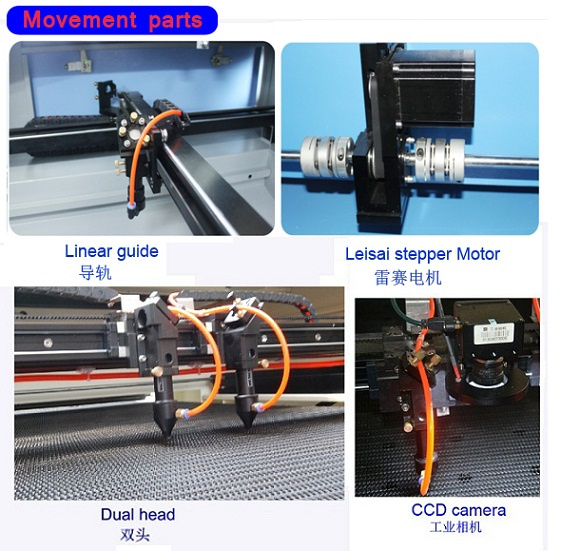

Laser head:dual head to cut faster,single head to cut for large format,available to choose according to the production demand
Type setting software:intelligent Taishun typesetting software to achieve continuous feeding material
Water Chiller:standard industried water cooling system CW3000/make sure the laser tube work in ambient temperature.
Fume extractor: 2 sets 550W exhaust fan
Linear guide Rail:imported brand of Hiwin or others
Parameter:| Laser type | Glass CO2 laser tube | Movement system | stepping motor system |
| Output power | 100W | Cooling system | Water cooling |
| Working area | 3200mmx6000mm | Electrical Voltage | AC220V+-5% 50/60hz |
| Working table | Conveyor working table | Supported file format | AI,BMP,PLT,DXF,DST,AI,BMP,PLT,DXF |
| Working speed | Adjustable | Standard accessories | 1 set 550W exhuast fans |
| Position accuracy | plus minus 0.1mm | Connect interface | USB |
Feature:
1.Humanized and most modernized design of appearance reflects caring idea of Tai Shun Design department
2.Advanced DSP control system and special motion control ship make the machines cut curve continuously
and rapidly,the selection function of the shortest path makes efficiency higher.
3.All machined are configurated with U-disk offline control system,so it is more simple and easier to operate.
4 Strong steel frame structure body makes the engraving process stable with no moving or deformation
5,Converyor working table with negative pressure adsorption function can cut long size fabric continuously and to impress you, thus the fabrics still kept flatly and smoothly.
6,The following-up fume extractor system is going with laser head to save power consumption and good fume chasing effect.
Samples
Our strength:1. We use ball screw rod to make the up and down table, which ensure its long-term using and precision. While other company may have less precision, and will be noise after a period using.2. We use American IIV company's reflect mirror and focus lens, which prolong the lifetime of the spare parts.3. For laser tube, we use the Chinese top brand laser tube, have very stable performance, lifetime can reach 3000 hours. Also, we have another brand laser tube with 10000 hours lifetime.4. For water chiller, we use CW3000 CW5000 for single head, and CW5200 for double head laser machine.5. Good quality and unique design for red pointer and auto feeder6. All the machine have LCD offline control system + USB port.7. The bearing we use Japan import NSK brand, which ensure the long time performance and accuracy.8. the transforming belt adopt the famous FULONG brand, it have the metal inside, so it is fasten and not easy to loosen.9. All the power supply and laser device are kept on running for at least 24 hours testing to ensure it's in good performance.Full services
1. service before sales: our salesman will get a full knowledge of your requirement and supply a most suitable scheme for your product. Order detailed checked and confirmed by an official procedure
2. service during production: we will send photos of machines during production.In this way customers can get updated about status
3. service before shipping: we will take photo and confirm with customers the specification of their orders to avoid the any mistakes arised
4. service after shipping: we will seed the shipping documents to you accordingly and send a shipping advice about the ETD and ETA about the goods.
5. service after arrival: we will confirm with customers if machine is in good condition. and see if any spare parts missing .
6. service of teaching: there are some manual and video about how to use machine, if some
customers have question about it. we will have professional technician to help them to install and
teach how to use through skype ,calling, video or mail.
7. service of warranty: we offer 1 year warranty for whole machine. if any parts of our machine
is broken. we will replace it for free.
8. service in longterm : we hope every customer can use our machine easily and have a good experiences during the process of operation
If customers have any problems of machine in 2 or 3 , 5 years , they can contact us .
Guarantee&After-sale service
1, Best components, perfect technics and strictly ex factory inspection.
2, 1 year guarantee for whole machine.
3, 24 hours (all days) technical support by call ,e-mail, skype or computer
remote control service by engineer.
4, Multi-language software, operation CD and detailed User Manual together with machine.
5, We offer free training in our factory, engineer oversea service is available if you like.
Order Notice:
Please let us know following informations:
1.What materials you want to cut ?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials ?
4. After cutting, what will be the metal used for? (application)
5. Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.
| Prod Model: |
TSC320600LD |
| Laser Type: |
CO2 |
| Application Area: |
Car Accessories, Garment and Shoe, Home Textiles |
| Application Material: |
Fabric, Textile, MDF, Non-Woven, Leather |
| Power Supply: |
AC220V+/-5%50Hz |
| Graphic Format Supported: |
Ai, Plt, Dxf, BMP, Dst, Dwg, Dxp |
| Cutting Area: |
3200mmx6000mm |
| Output Power: |
100W |
| Cutting Speed: |
Adjustable |
| Working Table: |
Conveyor Working Table |
| Guarantee: |
One Year Free Maintenance |

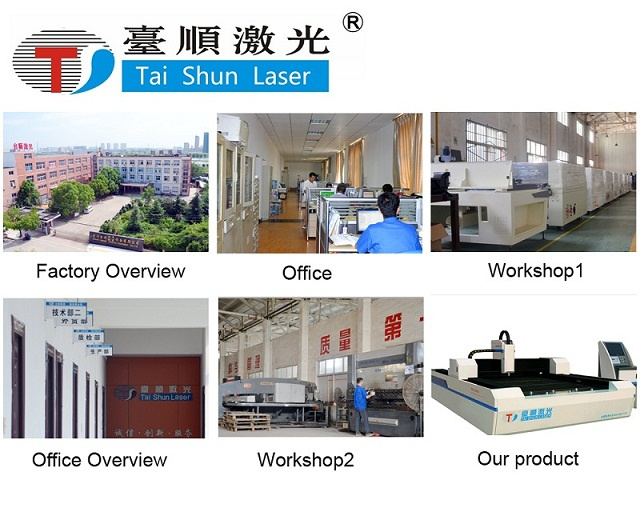

Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.

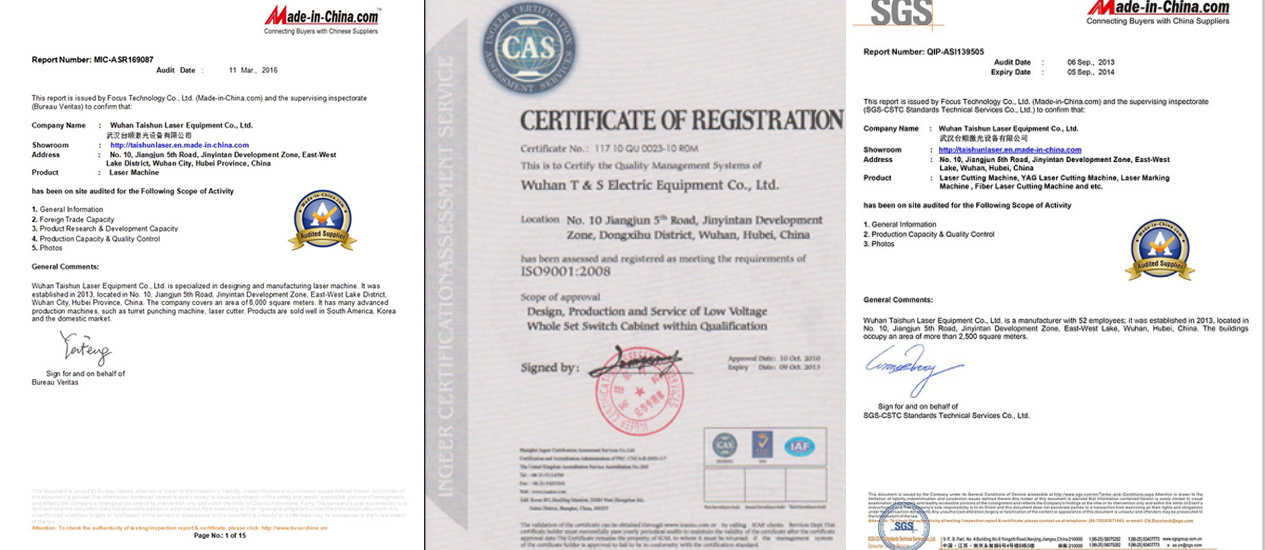

Taishun company has strong Technical force and established set of perfect quality Management system, passed ISO9001: 2008 Quality Management System Certification, BV authentication, SGS and National Mandatory Product "3C" certification, which has reliable quality.
We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser metal cutting machine, YAG laser metal cutting machine, CO2 laser cutting and engraving machine, Fabric Flatbed laser cutting machine, Conveyor working table machine, laser marking machine and so on.
Taishun laser are good at produced medium and small laser power laser cutting machine, specially to supply one whole sets of laser processing solution scheme and related facilities for customers in plush toys, leather cutting, plush fabrics, automobile, textile, textile clothing, advertising handicrafts, electronics, medical equipment and etc. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. To create a new Second-Generation small power laser cutting machine with more rapid and refinement manufacturing.
