| Prod Model: |
CB25. CB40, CB50, CB65, CB80, CB90, CB100, CB130. |
| Name: |
Laminated Chocky Bars |
| Technology: |
Vacuum Brazing |
| Hardness: |
700bhn |
| Rockwell Hardness: |
63HRC |
| Certification: |
ISO9001: 2000 |
| Condition: |
New |
Product Description

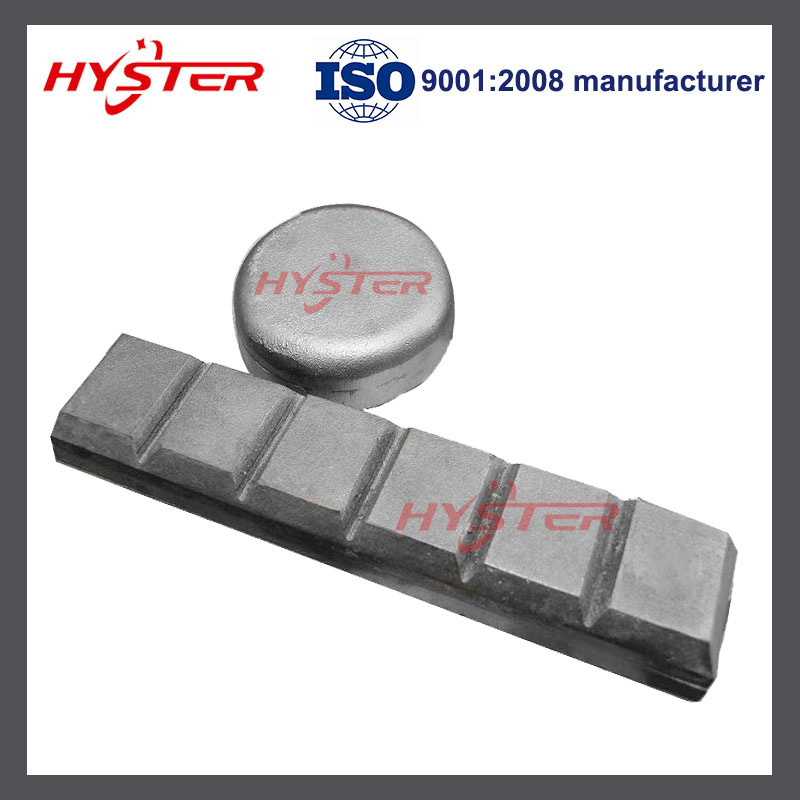

Laminated Chocky Bars (notched or non-notched) and Wear buttons
Chocky Bars are easy to use and install. They can be bent, cut and formed to suit different surfaces.
The unique, formable design of Hyster-Wear chocky bars are available in various lengths, grades and sizes and can also be customized as per the clients specific need. Applications for Chocky Bars are wide and varied, ranging from specific wear protection on buckets for loaders, excavators and draglines machines, or for weld-on hammer tips for the re-cycling industry, or chute linings and rock box edges.
Types:
Item No. | Size(mm) | N.W.(kg) |
| CB25 | 240X25X23 | 0.9 |
| CB40 | 240X40X23 | 1.5 |
| CB50 | 240X50X23 | 1.9 |
| CB65 | 240X65X23 | 2.5 |
| CB80 | 240X80X23 | 3.2 |
| CB90 | 240X90X23 | 3.5 |
| CB100 | 240X100X23 | 3.9 |
| CB130 | 240X130X23 | 5.4 |
| CB150 | 240X150X23 | 7.3 |
Dome&Flat Shaped Round: Perfect solution for ground engaging applications as on adaptor teech, shovels, buckets, heavy earth moving equipment etc. Can well use them in conjunction with Chocky Bars, Wear Plates or individually to provide protection or security under the toughest impact and wear abrasion circumstances.
Types:
ITEM | SIZE(mm) | Net weight(kg) |
| WB60 | 60x27 | 0.7 |
| WB75 | 75x27 | 0.8 |
| WB90 | 90x27 | 1.4 |
| WB110 | 110x32 | 2.1 |
| WB115 | 115x32 | 2.5 |
| WB150 | 150x41 | 5.7 |
Material:
Wear portion is white iron(high chrome carbide). ASTM 532 15/3CrMo.
Impact portion is mild steel.
Chemical:
C Cr Mn Mo
2.5-3.5 15-18 0.5-1.0 0.5-2.5
Cu P Si S B. V. Nb
0.5-1.0 0.02max 0.5-1.0 0.02max 0.1-0.5
Mechanical Property:
1) Tensile Strength 630Mpa Min.
2) Shearing Strength 250Mpa Min.
3) Hardness 63 HRC
