Made in China Manufacturer Tungsten Carbide Button, Carbide Button for Drill Bit

Name: Made in China Manufacturer Tungsten Carbide Button, Carbide Button for Drill Bit
Brand: FullPackage
SKU: 835280785
Availability: InStock
Rating: 4.6 (29 reviews)

Price:	US $ 4516
Min Order:	116
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	All Sizes
Thread:	R22, R25, R28, R32, R35, R38, T38, T45, T51, St58
Shape:	Spherical,Conical,Ballistic,Crested Chisel,etc.
Content:	8%Co, 92%Wc
Bit Face Shape:	Drop Center, Flat Face, Convex, Concave
Delivery Time:	20-25 Days
Raw Material:	100%
Processing:	Mining Industry
Features:	Good Wear Resistance, High Precision
Condition:	100% New
Place Of Origin:	Zhuzhou-----Carbide City
Type:	Button Bits

Product Description

Product Description

Tungsten carbide buttons are mainly used for high and low pressure DHT drill and hydraulic Screw-in drill and so on.

It is suitable for hot insert or cold pressing bit inserting process, With some of the materials used in the welding process. These products are stable in quality, Excellent in performance, can meet or exceed the domestic advanced level.

We are developing carbide grades use in crushing and recycling industry. Tire, plastic, metals and trashes that needs to break down and recycle. Weariness, toughness and resistance to acidy working environment are essential properties. Specific develop grades working with different crushing materials improves the runtime of your equipment.

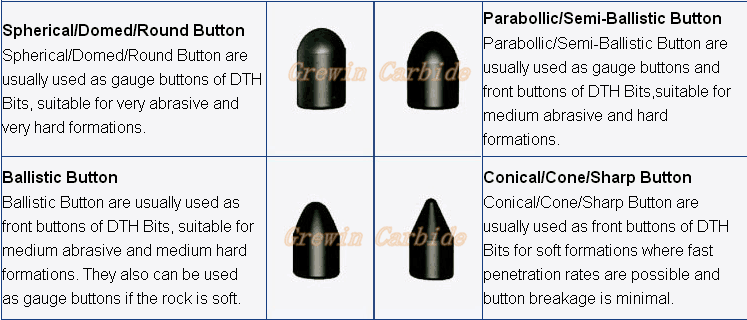

Shape: Spherical, Conical, Ballistic, Crested Chisel, Wedge Crested Chisel, Scoop Chisel Button
Thread: R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, T60
Diameter: 38-127mm.

Before official order, please confirm the information below.
(1) Type
(2) Standard or NOT
(3) Bit button shape (tip shape)--Spherical or Ballistic
(4) Bit face shape--Drop Center, Flat Face, Convex, Concave, etc.

Grade Recommomdation

Grade	Density g/cm3	TRS MPa	Hardness HRA	Performance & application recommended
YG4C	15.10	1800	90.0	Mainly used as small buttons for percussion bits to cut soft and medium hard formations.
YG6	14.95	1900	90.5	For coring crowns, electric coal drill bits, coal cutting picks, oil cone bits and scraping knife bits, used in geological prospecting, coal mining and oil well boring.
YG8	14.80	2200	89.5	For coring crowns, electric coal drill bits, coal cutting picks, oil cone bits and scraping knife bits, used in geological prospecting, coal mining and oil well boring.
YK05	14.95	2500	90.5	Mostly used as the buttons of small and medium sized percussion bits and as the inserts of rotary prospecting bits to cut soft and medium hard formations.
YG8C	14.80	2400	88.5
YK15	14.60	2450	87.6	Suitable to strips, conical buttons for rotary percussion-resistant, geological prospection buttons, cut soft and medium hard formations.
YK20	14.40	2500	86.8	Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and hard formations.
YK25	14.40	2550	87.2	Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and very hard formations.
YG11C	14.40	2700	86.5	Largely for the inserts and buttons of percussion bits and tricone bits to cut medium-hard, hard, and very hard formations.
YG13C	14.2	2850	86.0	Primarily for the buttons of tricone bits and inserts of rotary percussion bits to cut hard and very hard formations.
YG15C	14.0	3000	85.5	For oil cone drill bits, for medium soft and medium-hard rocks.
