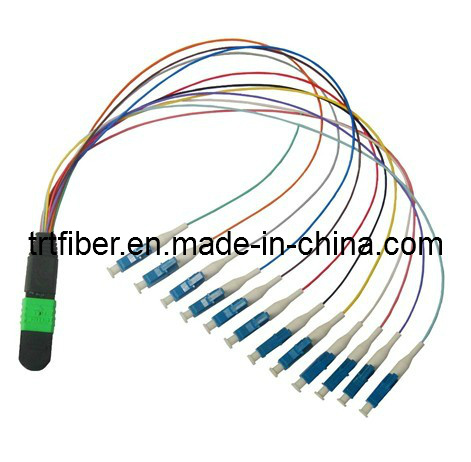

Fiber Optic Patch Cord, MTP/MPO-LC/UPC /SM / MM 10G OM3 12 fiber or 24 fiber, with MTP/MPO and LC Fiber Optical ConnectorFiber patch cord Complies with IEC, Telcordia GR-326-CORE standard
Low insertion loss and high return loss
PC/UPC/APC polishing
Diameter:0.9, 2.0, and 3.0mm
Fiber jumper of the Single or multi mode is available
Simplex or duplex is available
PVC or LSZH cable is available
Excellent changeability and repeatability
Tensile strength:10N
Fiber patch cord operating temperature range:-40 to 80°C
Storage temperature range:-40 to 80°C
Color of fiber optic cable:Yellow (SM), Orange (MM), and Aqua (OM3)
|
Spec. |
MTP-LC fiber optic patch cord |
|
Insertion loss |
Less than 0.5 dB |
|
Return loss |
UPC more than 55 dB,APC more than 60dB |
|
Repeatability |
Less than 0.2 dB |
|
Changeability |
Less than 0.1 dB |
|
Operating temperature range |
-40 to 80°C |
|
Storage temperature range |
-40 to 80°C |
|
Tensile strength |
100N |
|
Min. bending radius |
35mm |
|
Length |
Customed |
Shenzhen TRT Fiber Tech. Co., Ltd is specialized in R&D, manufacturing and marketing of fiber optic such as fiber optic cable, fiber optic patch cord/jumper, fiber pigtail, fiber connector, fiber adapter, fiber attenuator, fiber patch panel, ODF, fiber splice closure and other related fiber products.
With a powerful R&D team, TRT Fiber is able to manufacture products according to customer's specifications and requests, even with customized raw materials. We not only offer OEM service, but also help many partners from all over the world to win in the market with professional technical support, excellent product solution, competitive prices, fast delivery and good service. We ensure every piece of our fiber optic products is with excellent performance and appearance.
TRT has been putting a lot of investments to keep pace with fiber optic industry standard. With high quality raw materials, advanced manufacturing equipments and highly skilled workers, we ensure every piece of our fiber optic products is with excellent performance and appearance.
Welcome to be TRT business partners, we are sure to bring you more profits. Thank you.
