Multitapes Nylon Bra Tapes Continuous Dyeing&Finishing Machine

Name: Multitapes Nylon Bra Tapes Continuous Dyeing&Finishing Machine
Brand: FullPackage
SKU: 758824515
Availability: InStock
Rating: 4.8 (62 reviews)

Price:	Negotiable/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

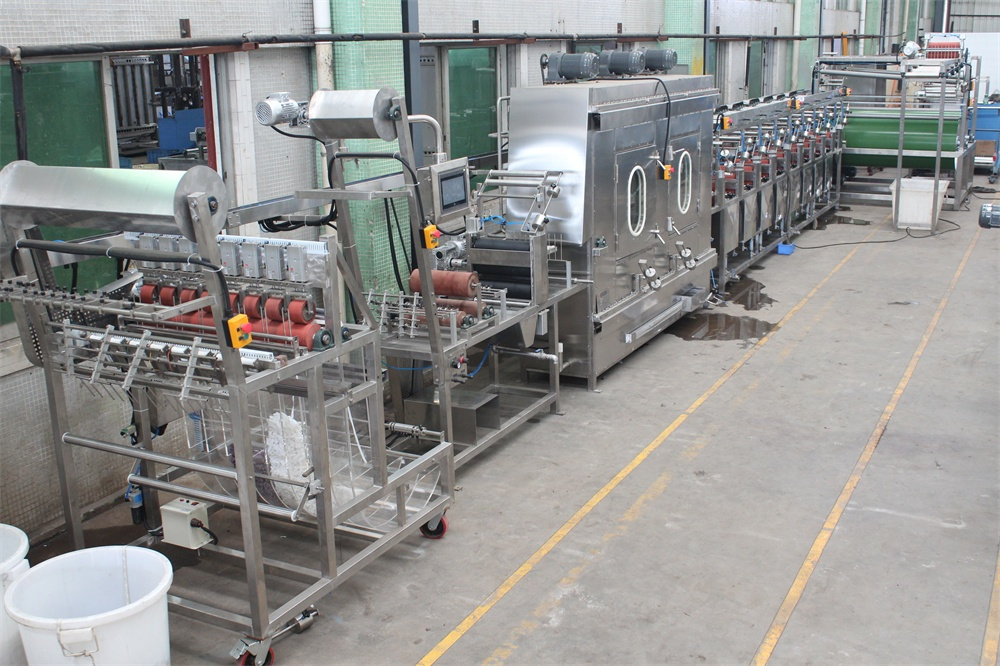

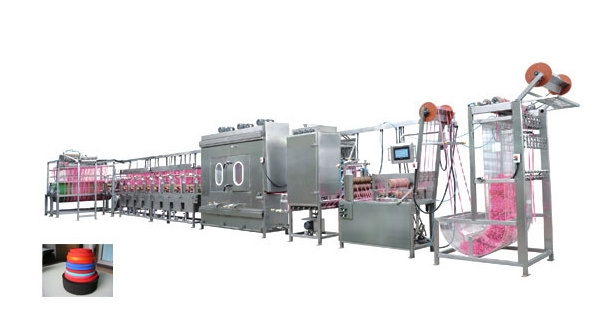

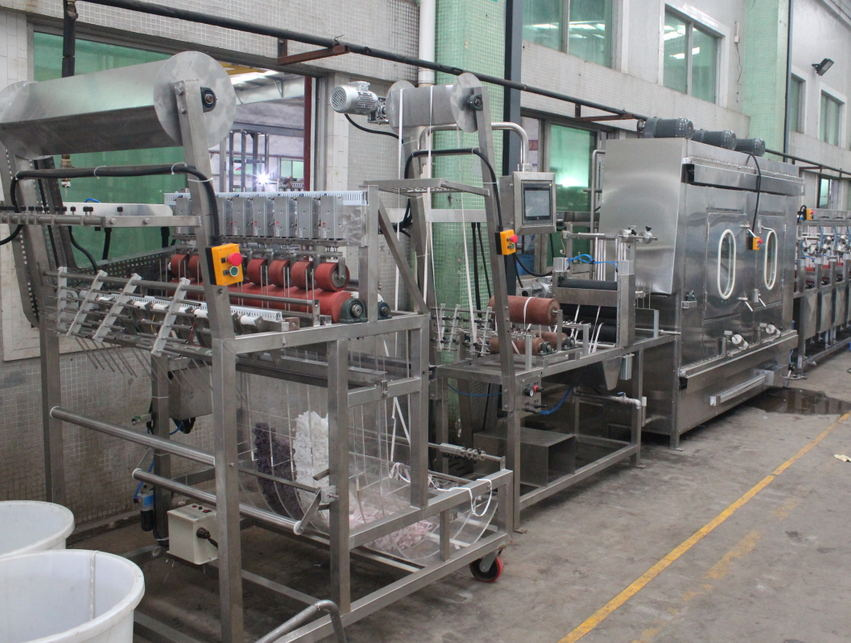

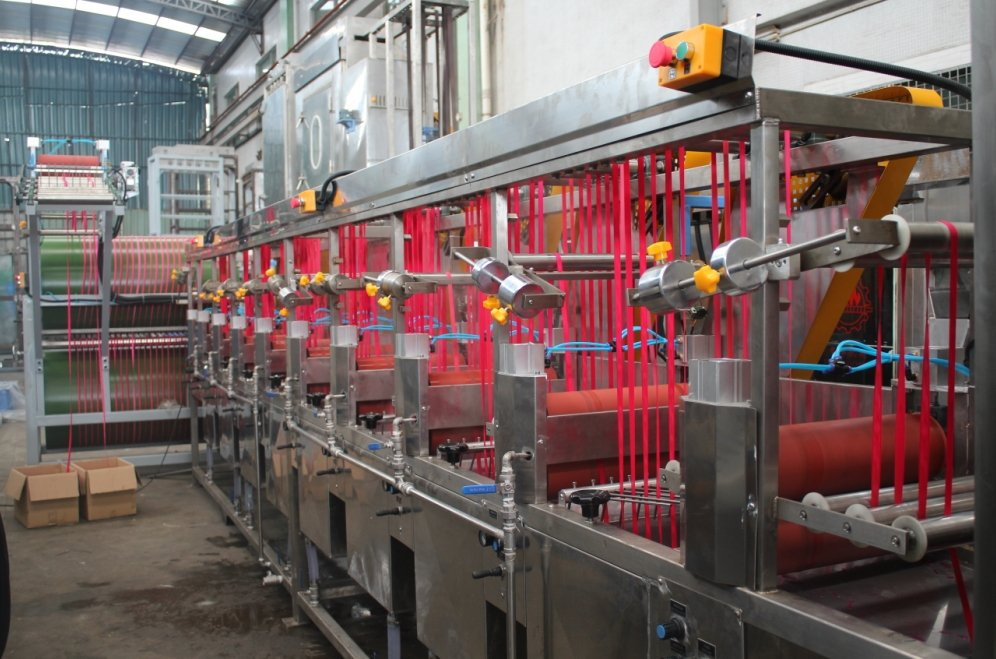

Multitapes Nylon Bra Tapes Continuous Dyeing&Finishing Machine

Item No:KW-807-SJ400-A
Size:15000*2400*1000mm
This is updated newest elastic tapes continuous dyeing machine

Features:
1)with PLC
2)with J-Box.
3)our patents.
4)it's the best seller in 2013 .
5)laid out a new system of tension automatic control
6)Application: The dyeing machine is especially used for dyeing nylon elastic tapes(elastic bands,elastic shoulder tapes etc) into any color and polyester elastic tapes into light color laces.

Item
Heat System	electrical	steam
Working Width(mm)	200	400	600
Thermofixation Chamber Tape Content(m)	45/60	80/90
Maximun Speed(m)	15	20	30
Maximun Number(m)	4	8	12
Control system	Manual/PLC

Option: J-Box Feed in device with individual tapes tension control

Processes: J-Box-Feed in-dyeing groove-Steam chamber-washing tank-Pre-dryer-chemical groove-drying&finishing unit-take off

Options:manual control,PLC(touch screen)control,feed in device with individual tapes tension control.

KIN WAH Mechanical Industrial Co., Ltd. established in the year of 2005, has been dedicated in researching and developing KIN WAH dyeing and finishing equipment series for narrow fabric for more than twenty years. KIN WAH dyeing and finishing equipment series include High temperature Continuous Dyeing & finishing Machines, Normal temperature Continuous Dyeing &finishing Machines, High & Normal Temperature Continuous Dyeing & finishing Machines (same machine), Finishing & Starching Machine, Calender Machine for labels, packaging machines, rolling machines and relative narrow fabric Complete Plant programming. They are widely used for all kinds of narrow fabric made from polyester, nylon and cotton material, such as automobile seat belts (one end & two-ends), heavy duty tapes, textile lift slings, safety belts, luggage & bag belts, satin ribbons, ornament ribbons, labels, elastic tapes, organza tapes, curtain tapes, and cotton tapes.

Prod Model:	KW-807-SJ400-A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Machine Type:	Dyeing&Finishing Machine
Driven Type:	Electric
Power(W):	32kw
Phase:	3 Phases
Frequency:	50/60Hz
Max Working Temperature:	100°c
Heating System:	Electrical&LPG or Natural Gas&Steam
Max Speed:	30m/Min
Drying Type:	Hot Air Drying
Application:	Elastic Tapes, Nylon Tapes,Narrow Fabric etc
Automatic Grade:	Semi-Automatic
Certification:	TUV
Condition:	New
Working Width:	200-600mm
Material:	Stainless Steel,Iron,Carbon Steel etc
