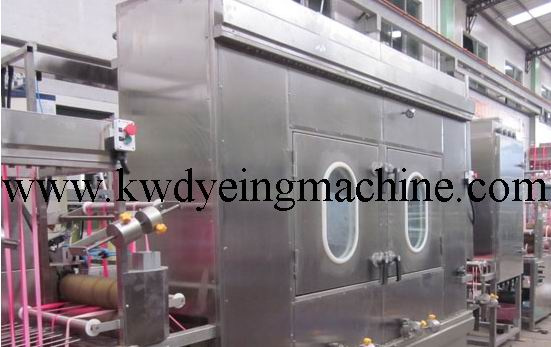

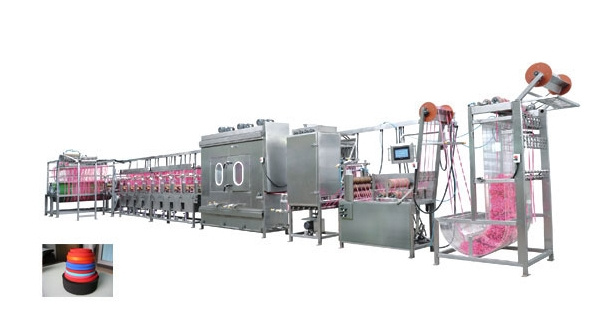

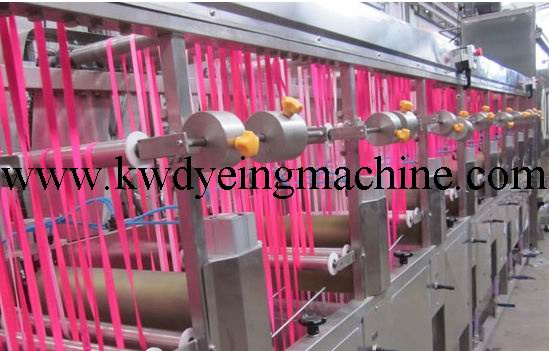

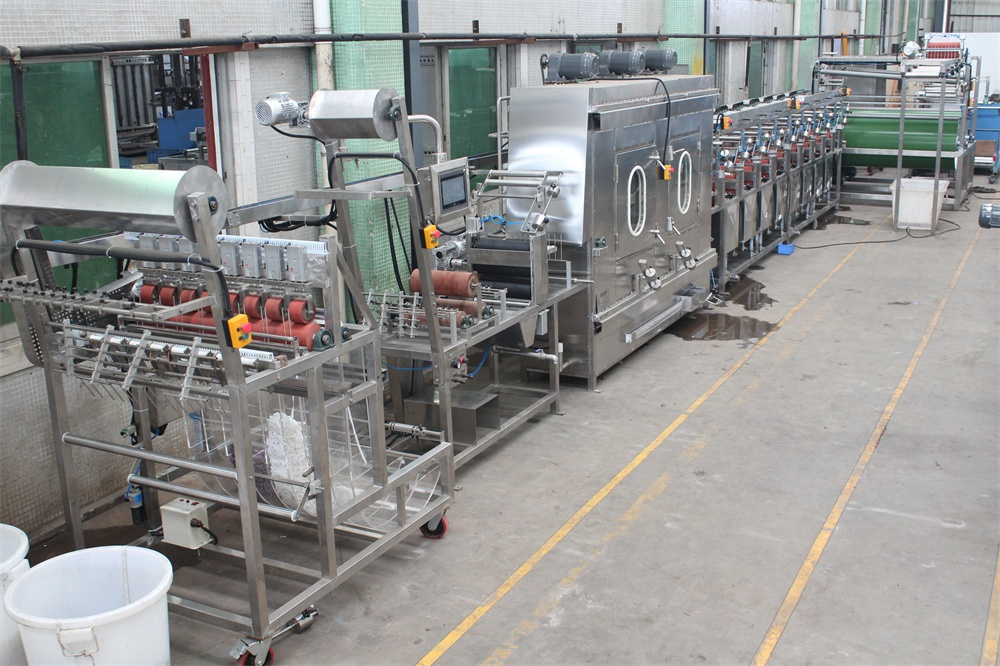

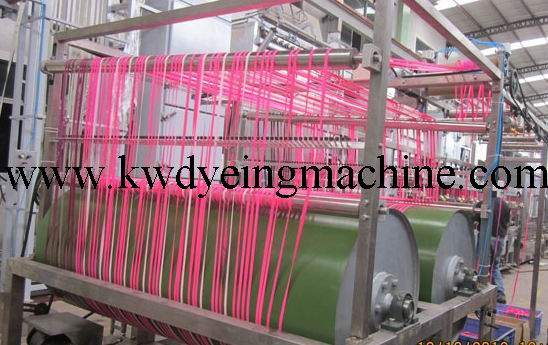

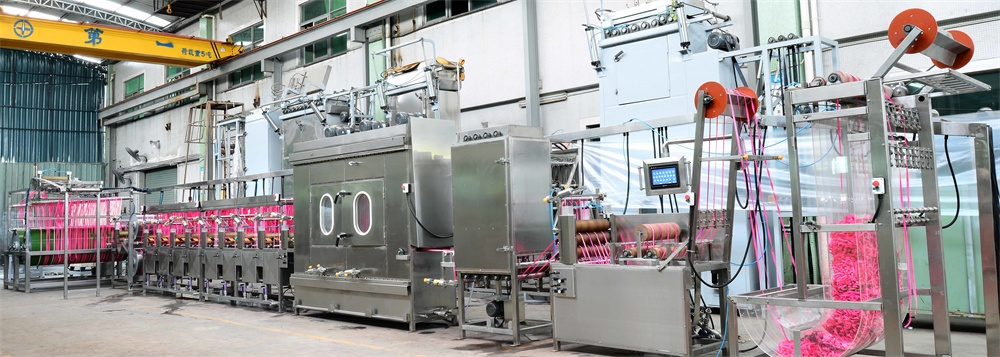

Upgraded Nylon Bra Tapes Continuous Dyeing and Finishing Machine
Item No:KW-807-SJ400-A
Size:15000*2400*1000mm
This is updated newest elastic tapes continuous dyeing machine
Features:
1)with PLC
2)with J-Box.
3)our patents.
4)it's the best seller in 2013 .
5)laid out a new system of tension automatic control
6)Application: The dyeing machine is especially used for dyeing nylon elastic tapes(elastic bands,elastic shoulder tapes etc) into any color and polyester elastic tapes into light color laces.
Item | |||
Heat System | electrical | steam | |
Working Width(mm) | 200 | 400 | 600 |
Thermofixation Chamber Tape Content(m) | 45/60 | 80/90 | |
Maximun Speed(m) | 15 | 20 | 30 |
Maximun Number(m) | 4 | 8 | 12 |
Control system | Manual/PLC |
Option: J-Box Feed in device with individual tapes tension control
Processes: J-Box-Feed in-dyeing groove-Steam chamber-washing tank-Pre-dryer-chemical groove-drying&finishing unit-take off
Options:manual control,PLC(touch screen)control,feed in device with individual tapes tension control.
Prod Model: | KW-807-SJ400-A |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Machine Type: | Dyeing&Finishing Machine |
Driven Type: | Electric |
Power(W): | 32kw |
Phase: | 3 Phases |
Frequency: | 50/60Hz |
Max Working Temperature: | 100°c |
Heating System: | Electrical&LPG or Natural Gas&Steam |
Max Speed: | 30m/Min |
Drying Type: | Hot Air Drying |
Application: | Elastic Tapes, Nylon Tapes,Narrow Fabric etc |
Automatic Grade: | Semi-Automatic |
Certification: | TUV |
Condition: | New |
Working Width: | 200-600mm |
Material: | Stainless Steel,Iron,Carbon Steel etc |
