| Price: | US $ 12000-48000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | DG-20T1-ZG |
|---|---|
| Condition: | New |
| Warranty: | 1 Year |
| Shipping: | Shipped in 15 Days After Payment |
| Type: | Polyurethane Foam Machine |
| Automation: | Automatic |
| Computerized: | Computerized |
| Raw Material: | Polyurethane |
| Principle: | High Temperature Melt-Casting |
| Certification: | BV |

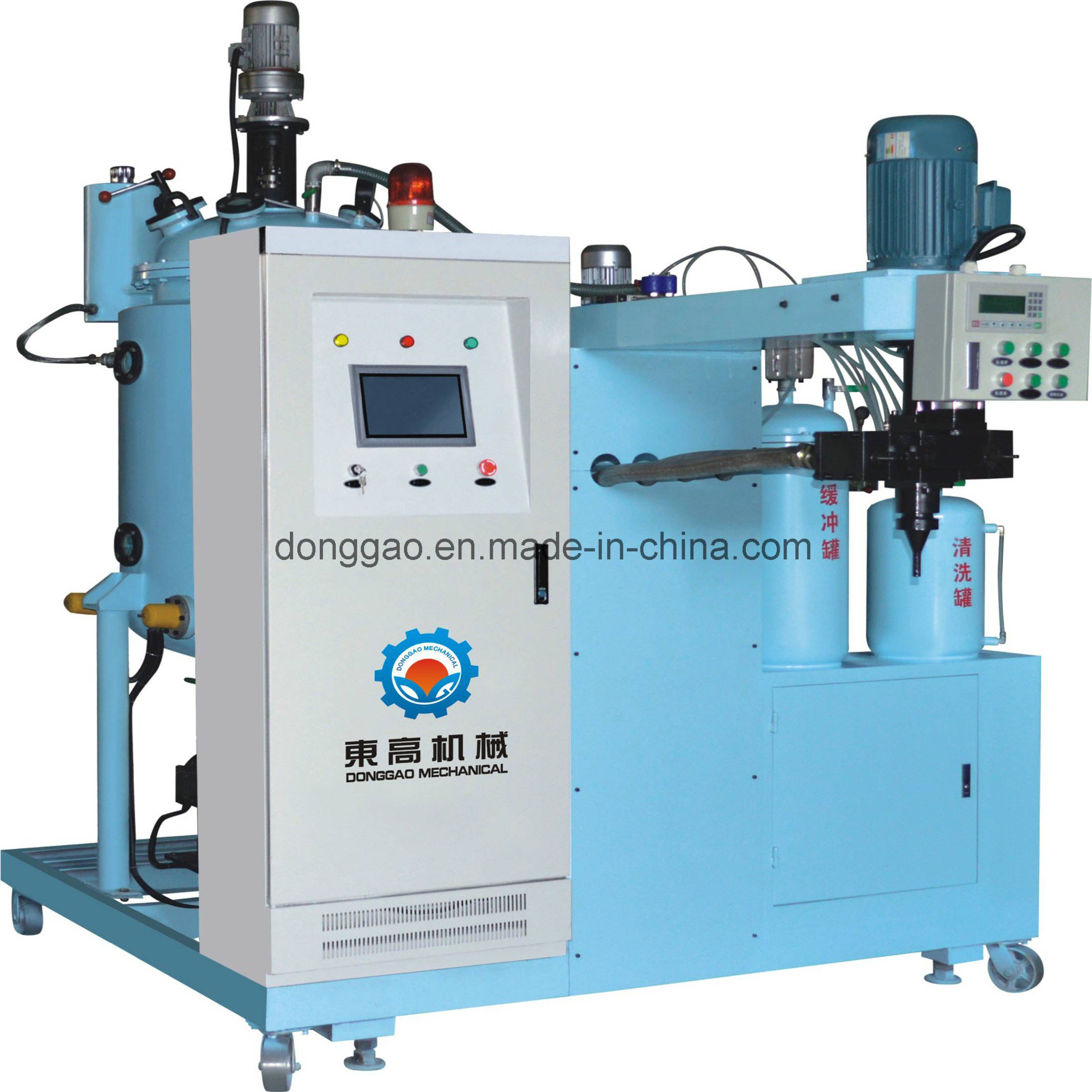

Details of Oven Type CNC PU Sandal Shoe Machine
Mix head
· Mixing by agitator for better mixing performance
· Color additive available
· Efficient cleaning function
· New designed pouring valve for precision dosing
· Individual equipped controller for mix head
Components storage and temperature conditioning
· Material tanks with visual level tube
· Electrical resistance heater for temperature conditioning
· Digital pressure gauge for control and visualization of pressure with max. alarm value
· Low speed agitator for even temperature distribution
· Chiller for option
Electrical control system
· Fully controlled by PLC (single chip microcomputer)
· Servo motor CNC automation
· Operator panel for simple and friendly setting of machine's parameter, status
showing pouring time, temperature control and cleaning control, etc.
· Alarm function with acoustic warning
· Vacuum degassing system
Usage
Be used for producing polyurethane elastomer productions with MOCA as chain extender such as polyurethane plate & stick for metal stamping die; rubber roller for metallurgy, printing & dyeing, textile, mining and papermaking; high load solid wheel seals; high wear resistant material like elastic block and so on.

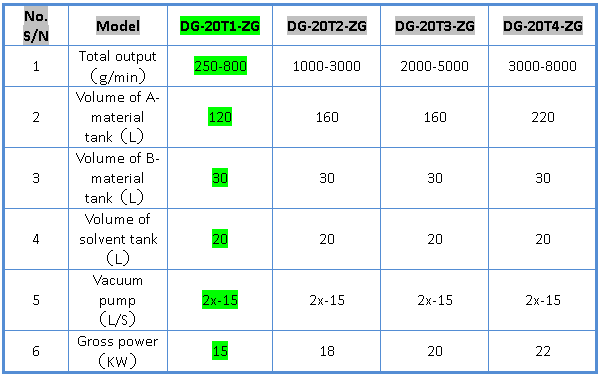

Main parameters:
(All machines can be customized.)
FAQ
Q1: Are you trading company or manufacturer?
We are manufacturer of shoes machine and related equipment.
Q2: What's the delivery time?
Around 20~30 days after we receiving your deposit.
however, it is based on the order.
Q3: What about your machine warranty?
Our machine warranty is 1 year (from the installation date)for all machine parts.
Exception: consumable machine parts such as screw, motor and ect. Damages caused by mis-operation.
Q4: If the machine's spare parts broke, where can I get ?
We will give you the spare parts which is vulnerable along with the shipment.
we have Q/C department to control the quality. When the machine is finished, we will make sure it's work well.
our quality is good ,in case it broken within one year ,we will sent you for free.
