P Wire Screen Filter Nozzle Separator
| Price: |
US $ 8-20/Piece |
| Trade Terms: |
FOB |
| Min Order: |
50/Piece |
| Pay Type: |
T/T |
Wedge wire strainer nozzle, stainless steel filter nozzle, screen nozzle johnson type, water&gas strainer
nozzle, changeable filter element, wire wrapped nozzle pipe, , water filter nozzle, single tube type valve
bounet, double tube type diving helmet, double flow screen nozzle, single flow screen nozzle. filter
bottom nozzles, pipe screens, water input device, resin sprayer fittings, water distributor, center
distribution drainage device, Resin Traps,stainless steel lateral arm, lateral pipe, head lateral, wedge
wire candle filters, stainless steel screen candle, resin traps fitting, intake strainer screens, filter bottom
nozzles, inlet distributor, distributor traps, outlet basket, scale traps, distributor basket
Nozzles

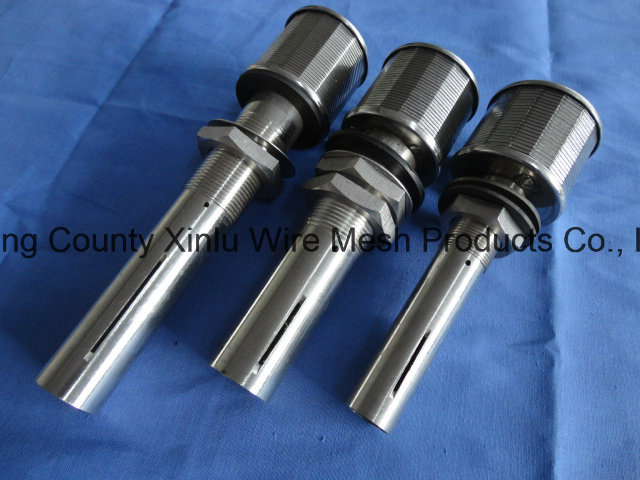

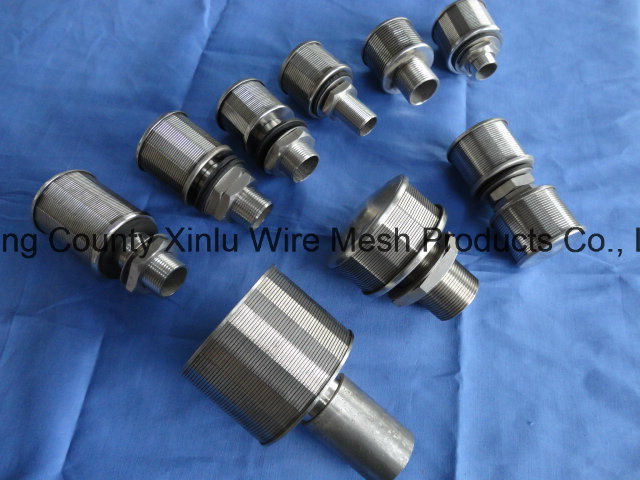

Johnson Screens nozzles are typically used in media retention vessels where specific flow and backwash rates are desired. Our applications engineers can recommend the number of nozzles needed for effective collection and distribution.
Down-flow reactors can place extremely high loading on the media retention screens at the bottom of the vessel. In some cases, this can require a false bottom to carry the load. Obviously, some provision must be made for the process flow to pass through this plate. This can most easily and effectively be done by installing a number of screen nozzles uniformly across the plate.
Johnson Screens nozzles are an ideal choice based on their combination of high strength, high open area and nonplugging slot design. Standard nozzles are 2 in. / 51 mm diameter and can be attached to the plate either with threaded end fittings or with "L" bolts. Slot openings typically range between 0.006 in. / 0.15 mm and 0.020 in. / 0.50 mm wide. They are of the unique plug-resistant Vee-Wire design, allowing particles to make only two-point contact with the edges of the wire.
In other designs such as wire mesh, particles can readily become entrapped in the mesh causing plugging and creating a continuing maintenance problem. Johnson Screens nozzles are most commonly made with 316L stainless stee. Other custom nozzles can be designed to suit special process and installation requirements.| Type | DiameterD | L | L1 | Slot | Thread | Open area |
| FYN1 | 45 | 98 | 34 | 0.2-0.25 | M20 | 380-493 |
| FYN2 | 45 | 100 | 34 | 0.2-0.25 | M24 | 551-690 |
| FYN3 | 53 | 100 | 34 | 0.2-0.25 | M24 | 453-597 |
| FYN4 | 53 | 100 | 50 | 0.2-0.25 | M27 | 680-710 |
| FYN5 | 53 | 105 | 34 | 0.2-0.25 | M32 | 800-920 |
| FYN6 | 57 | 115 | 35 | 0.2-0.25 | M30 | 560-670 |
| FYN7 | 57 | 120 | 55 | 0.2-0.25 | M32 | 780-905 |
| FYN8 | 60 | 120 | 55 | 0.2-0.25 | G1″ | 905-1100 |
| FYN9 | 82 | 130 | 50 | 0.2-0.25 | M33 | 1170-1280 |
| FYN10 | 108 | 200 | 100 | 0.2-0.25 | G2″ | 3050-4600 |
| Prod Model: |
XL-FY085 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter: |
45-108mm |
| Slot / Gap: |
0.2-0.25mm |
| Flow: |
Foti, Fito |
| End Connection: |
Welded Rings, Threaded, Flange |
Anping County Xinlu Wire Mesh Products Co., Ltd, . Is located in Anping county which well known of "The hometown of wire mesh in China", emerged from Anping mine screen mesh factory in 1994 with a founding of 1.5 million RMB. It has a comparatively long history, a large scale production rate, and it is the only company among others in the same profession to have been certified by the IS09001 quality system authentication.
Our company produce and sell as following: Johnson specialty screens, Water well screen, Wedge wire screen, Wedge wire slot tube, Wire wrap screens, Strainer pipe, Spiral screen tube, Rod based continuous slot screen pipe, Wire-wrap screen pipe, Mine screen mesh, Screen cylinders, Oil screen tube, Drilling well screen, Reverse rolled screen tube, V-ee wire screen, screen cylinders, sand control well screen, water filter, screen nozzle, water & gas strainer, filter element, stainless steel screen, low carbon steel screens, welded wedge wire screens, screen filter, rotary filter, various kinds of ore screen meshes, sieve bend, arc screen, wire wrapped panel, flat wedge wire panel, vibrating sieve screen plate, wire wrapped liner, johnson scren plate, continuous slot screens, Gabions, chain link fence, fence netting, welded wire mesh, stainless steel wire mesh, Galvanized wire, Galvanized wire mesh, crimped wire mesh and wire mesh, Mesh belt conveyor, Window Screening Series, Metal jewelry products and so on. The products are used in drilling well / pump, the trades, such as ore choosing, petroleum, chemical industry, electron, transportation, plastics, food, architecture, traffic, Musical Instruments, safety, etc. Our products can be seen everywhere in China, as well as African countries, Middle East and the regions of Southeast Asia.
