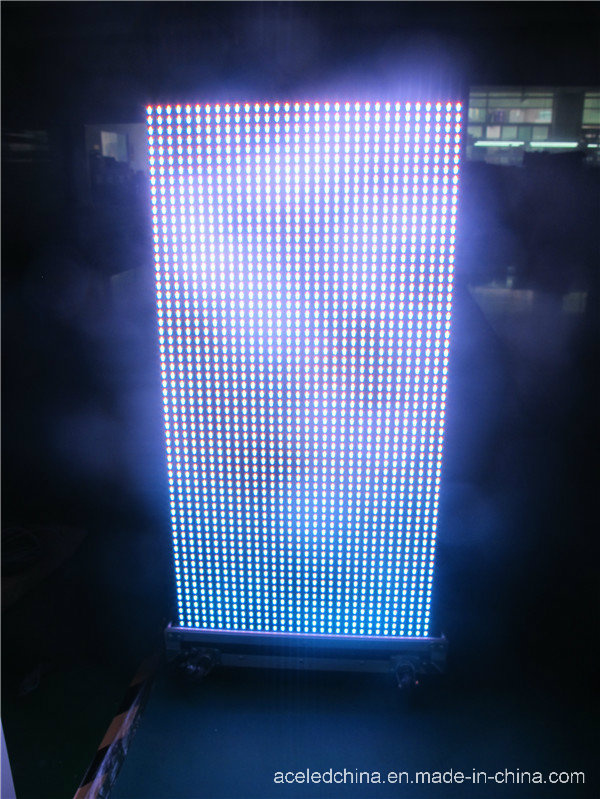

Wind-Proof LED Curtain for Huge Projects
·80% Transparency.
·Brightness: > 6500 nits.
·Easy Front Service without tools.
·Light: 10-15kg/m²
| LED Curtain Datasheet |
| Main Features | High Brightness, High Stability, Long Lifespan |
| Model | CXG 30 | CXG 20 | CXG 15 |
| LED Lamp | DIP 346 | DIP 346 | DIP 346 |
| Pixel Pitch (H)(mm) | 31.25 | 31.25 | 15.625 |
| Pixel Pitch (V)(mm) | 31.25 | 15.625 | 15.625 |
| Pixel Density (dot/) | 1024 | 2048 | 4096 |
| Grey Scale (bit) | 16 | 16 | 16 |
| Brightness (cd/) | ≥5500cd | ≥6500cd | ≥8500cd |
| Brightness Adjustment (unhurting grey scale) | 5%~100% | 5%~100% | 5%~100% |
| Viewing Angle(H/V) | 110° / 60° | 110° / 60° | 110° / 60° |
| Best Viewing Distance(m) | 30~600 | 20~400 | 15~300 |
| Power Consumption(W/) | Max:480; Average:144 | Max:480; Average:144 | Max:480; Average:144 |
| Weight (kg/ | 11 | 11 | 16 |
| Thickness (mm) | 60 | 60 | 60 |
| Installation Thickness(mm) | 118 | 118 | 118 |
| Refresh Rate (Hz) | 2380 | 2380 | 2380 |
| Data Interface | DVI/HDMI | DVI/HDMI | DVI/HDMI |
| Control Method | Synchronized with computer monitor | Synchronized with computer monitor | Synchronized with computer monitor |
| Drving Mode | Static constant driving | Static constant driving | Static constant driving |
| Display Mode | 1920*1080 | 1920*1080 | 1920*1080 |
| LEDs Lifetime | ≥10 | ≥10 | ≥10 |
| Transparency Rate (%) | 70.00% | 70.00% | 50.00% |
| Waterproof | Front / Back IP68 | Front / Back IP68 | Front / Back IP68 |
| Noice Level (db) | 0 | 0 | 0 |
| Control System | Integreated Control inside | Integreated Control inside | Integreated Control inside |
| Way of Installation | Tool-free fast installation | Tool-free fast installation | Tool-free fast installation |
| Fire Safety | 5S /unit, Tool-free uninstall | 5S /unit, Tool-free uninstall | 5S /unit, Tool-free uninstall |
| Maintainence Speed | 10S/unit | 10S/unit | 10S/unit |
| Maintainence Mode | Front / Back | Front / Back | Front / Back |
1. Competitive Price
We are middle-sized Chinese local factory, maybe you can see that from our so Chinese name of "Chengxinguang", unlike the internationalized name of foreign trade company. Besides, we control our cost very well and don't have huge management cost like top companies, so that we can give the real benefits to our customers.
2. Close Relationships with Raw Material Providers
For our bosses have been in the key positions at the top led display factory since 2004, we have very close and strategic relationship with the raw material providers, which support the stable quality of our products.
3. Quality Control
From raw materials to finished product, from design to produce, we control all steps, which are the guarantee of the quality and reliability.
Chengxinguang Technology Co., Ltd (Brand: LED CXG) is located in Shenzhen, China, a major production base of global LED display screen industry. LED CXG is a professional LED display screen manufacturer. It provides professional and customized solutions on full color LED display screen, rental LED display, outdoor electronic LED signs, indoor LED displays, LED curtain display, moving message boards, variable message sign and video boards etc.
LED CXG is committed to our customers and partners by providing fast and genuine service, quality and value. Now we have established business relationship with customers in Asia, America and European countries etc, and we will continue to devote ourselves to providing customers with excellent performance products, efficient and effective services around the world.
LED CXG uses international high-end automated production equipment and has professional management, R&D, production, quality and service teams. Besides, we also have very strong and strategic relationship with the raw material providers. All of these factors have ensured the stability and quality in our LED products, and our competitive price.
Contact us today and learn why so many customers world-wide choose LED CXG as their partner for LED displays.
