ENBON Outdoor Indoor full color waterproof LED Video Curtain is normally used for stages, events, shows .It brings clear video as wel as amazing lighting effect to create fantastic stage.
It is transparency LED video curtain for wind load and display amazing effect of transparence, lighting flashing, making the stage and people merging into the whole. It's always been an indispensable part of modern stages. It can be used both outdoors and indoors.Features:1. High brightness, over 5000nits, can be used both outdoor and inoor, daytime and evening
2. SMD3535 LED, wide viewing angle up to 140 degree,
3. Waterproof: IP65, no problem to work even it's raining.
4. High transparency, can create amazing
5. Long viewing distance, nice apperance
6. High refresh over 2500Hz/s, no scan when taken photo.
7. Ultra-thin and super-light, easy to install and dismantle
8. With fast locks on all sides
ENBON LED curtain with durable fresh color and high brightness by adopting high quality LEDs;
SMD LED screen outdoor mesh with energy saving 24% by using high efficiency IC driver and improved PCB design;Available pitches: P8.928 ,P10.416 ,P10, P12.5 ,P16, P20Application Outdoor stage background, outdoor screen wall for a great campaign, ceremony and other activities.
Some pictures showing below for your reference:

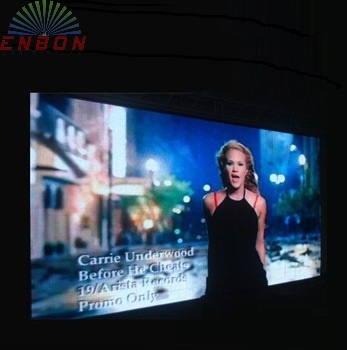

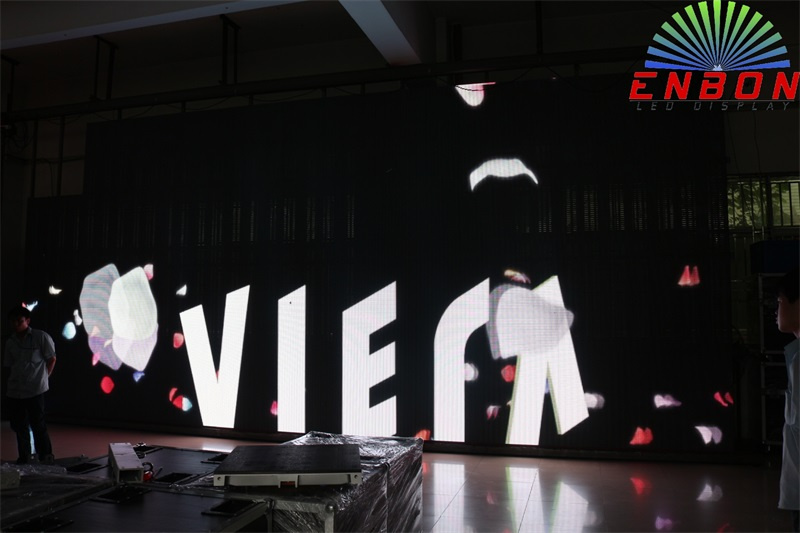

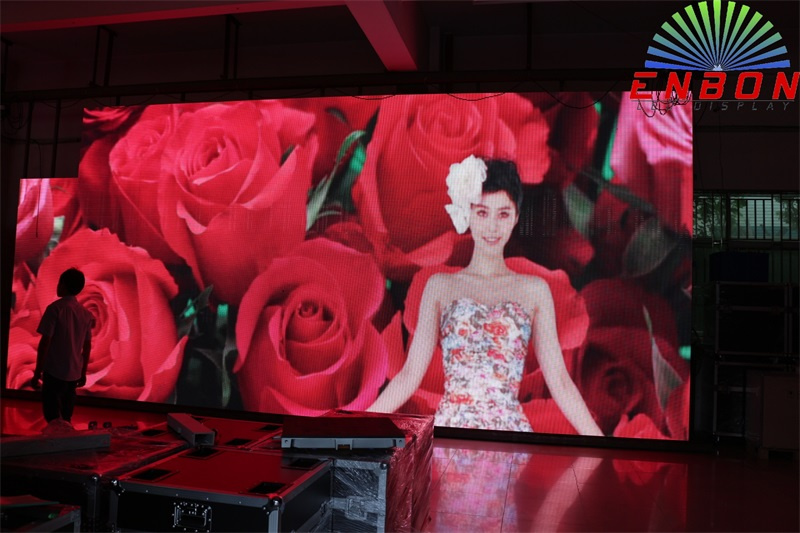

LED curtain project
Parameters:
| Model | P8.928 die casting aluminum LED curtain video wall |
| Pixel pitch | 8.928mm |
| Pixel density | 12,544 dots /sqm |

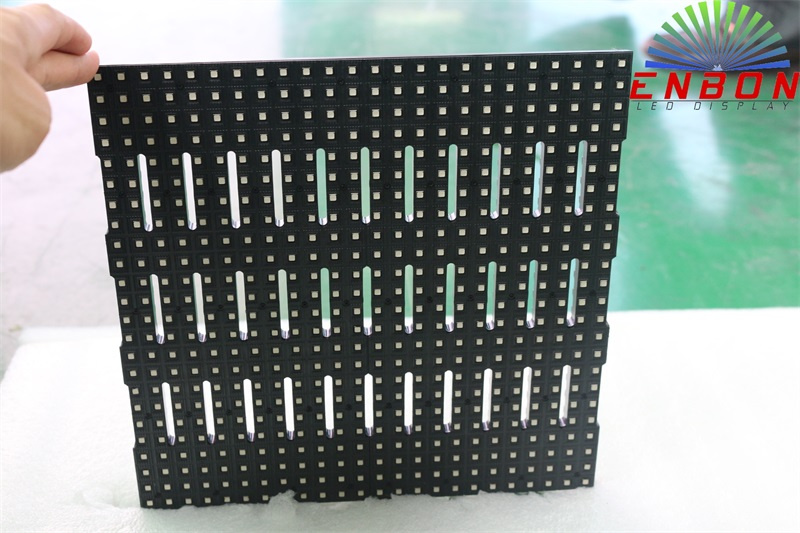

| Module size ( W * H ) | 250 mm ( width ) * 250 mm ( height ) |
| Module pixels ( W * H ) | 28 dots * 28 dots |
| Pixel configuration | 1 Red 1 Green 1 Blue |
| Drive mode | constant current driving 1/7 scan |
| LED lamp type | SMD3535 |
| Cabinet size ( W * H ) | 500mm*1000mm |
| Cabinet resolution | 56*112 dots |
| Net weight | 12Kg / cabinet |
| Color scale | 65,536 degree |
| View angle ( H / V ) | 140 / 120 degree |
| Brightness ( White balance ) | about 4500 cd / SQM. |
| Power consumption | Max : 300W / cabinet , Average : 100W / cabinet |
| Inputting Voltage | 100-240 Voltage 47--63Hz |
| Operating temperature | -30°C----+60°C |
| Operating humidity | 10%-95%RH |
| Life time | ≥100,000hours |
| MTBF | 5,000 hours |
| Whole Display Flatness | ≤0.5mm Juncture |
| Frame frequency | 25-60 Hz/s |
| Refresh rate | ≥2000Hz /s |
| Control distance | 100m ( without repeater ) , single mode fiber : 20km ,
multi mode fiber : 500m |
| LED control system | LINSN , Nova-star , Colorlight are selectable |
| Operating system | Windows Xp / Windows 7 / windows 8 / 8.1 / windows 10 |
| Protection grade | IP65 |
| Maintenance way | Rear Access |
| Accepting signal with video processor | HDMI , PAL , NTSC , HDMI , BNC , TV , SDI , VGA ,Media player etc . |
Please send us an inquiry before you go away ! s-kyp-e I-D: chency1213
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 8, 000 square meters, with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.
AlllouruproductsthavevpassedeCECEFCCCandnRoHSHcertificateses70%0ofoouruproductstarerforoexportrandngoodsdarerexportedetotovere808countriesesWeWareranaLEDEcompanynyouocanacountnonoforogoodoqualitytandncompetitivevpricingngBesidesesyouocanaalsosexpectcexcellentnprersalelesellingnandnafteresalelservicesehererewhichccontainsnprofessionalaconsultationonfreeetrainingngfreeedrawingsgsinstallationoandn2 yearsrwarrantytyWeWwilllinspectcouruproductstinstalledeinidomesticimarketeperiodicallyly.

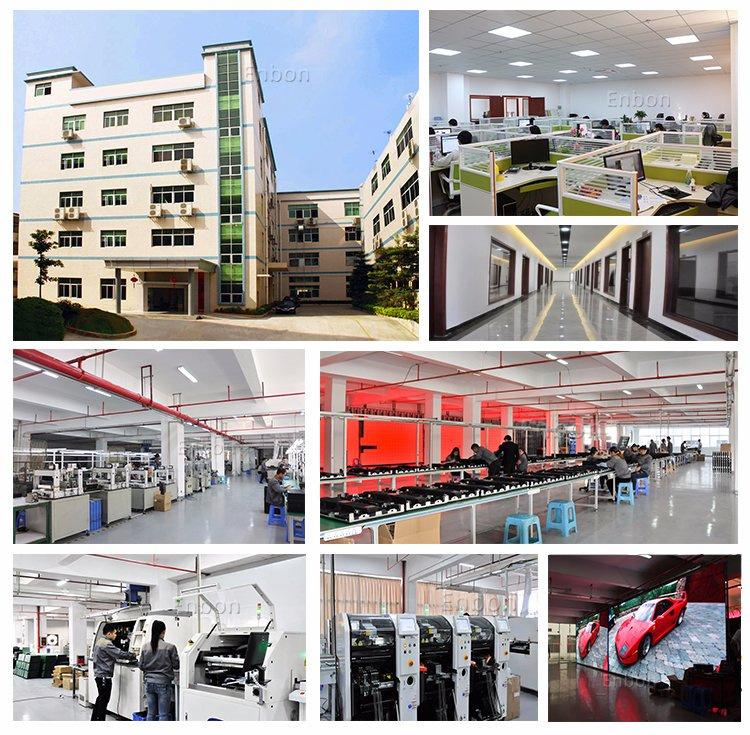

EnbonoisiequipedewithtadvancedemachinesesuchcasaAutomatedePickc& PlacecmachineneHighgSpeedeSMTMTWavevPeakaSolderingnmachineneReflowoSolderingnMachineneHighg& lowoTemperaturerAgingnroomomVibrationotestererWaterproofotestererAntitstatici& dustsfreeeworkshopoetctcModernrautomaticiequipmentntogetherewithtouruinnovativevengineersrsdedicatedeworkersrandnexperiencedesaleseandnserviceseteamamwe'rerthehrighthsuppliereyouocanatrustsforogoodosolutionsnforoalllyouruLEDEdisplayaprojectsts.
Contactcusuforoanaofferetoday!yOuruteamawilllrespondnini1 workingndayayWeWlookoforwardrtotbebyourugoodopartnereandngrowotogether!r
