PE/PP/HDPE/LDPE/ABS/PS/HIPS/PA/PC/PU/EPS/EVA Recycling Granulator, Plastic Pelletizing Machine
Description
Drivetrain: High torque precision gearbox.
Dedicated screw and barrel design: The screw is specially designed for recycled materials based on their characteristics. The unique design ensures full degassing in operation.
Extruder is equipped with pressure sensors. Replace filter screen as necessary.
Applicable Materials:
HDPE, LDPE, LLDPE, PP, PS, PC, ABS, HIPS, TPU, EVA, PMMA and etc.
Competitive advantages
Durable material: wear-resistant screw
Plastic films, clean and wet materials are preferable to single extruder.
Low noise and steady operation.
Hot Die Face water ring pelletizing
Die-face pelletizing is expected to reduce manpower cost.
Pelletizing system is a universal joint design. Dust-free.
Die face cutting ensures the final plastic pellets in uniform size.

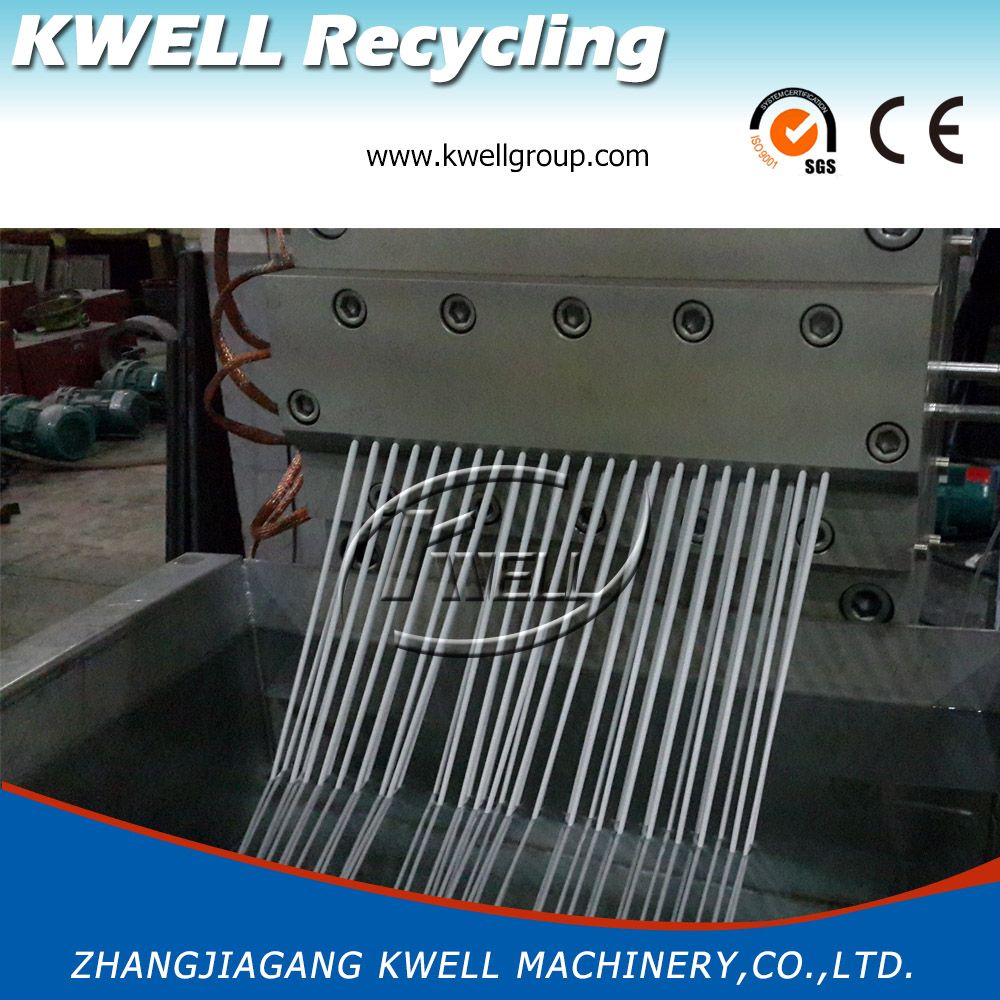

Strand pelletizing
High viscosity materials are preferable.
Individually extruded strands will be cooled down in a water cooling tank and then be cut by a pellet cutter.
Diversified option

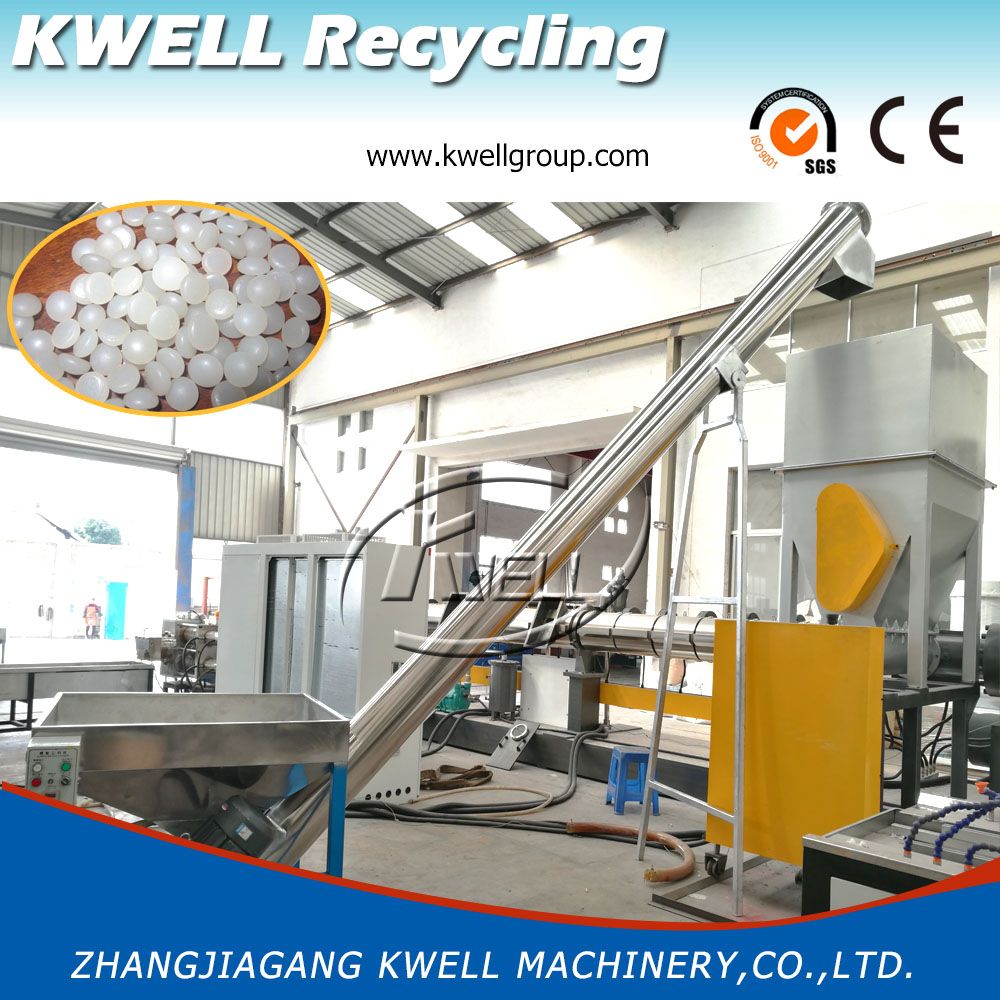

1.Normal forced feeder pelletizing line
work procedure:
Crushed film→spiral charger→feeder→mother extruder →hydraulic screen changer →baby extruder→hydraulic screen changer→pelletizing system →air transmission →silo storage
2.Side forced feeder pelletizing line
work procedure:
Crushed film→air transmission→side forced feeder→mother extruder →hydraulic screen changer →baby extruder→hydraulic screen changer →pelletizing system →air transmission →silo storage
Technical ParameterSide force feeding type pelletizing line| Model | Screw Diameter(mm) | Main Motor Power(kw) | Side Force Feeder Motor Power(kw) | Capacity(kg/h) |
| SJ00/30 | Φ100 | 55-75 | 5.5 | 150-200 |
| SJ120/30 | Φ120 | 75-90 | 7.5-11 | 200-350 |
| SJ130/30 | Φ130 | 90-110 | 11 | 300-400 |
| SJ150/30 | Φ150 | 132-160 | 15 | 350-500 |
| SJ160/33 | Φ160 | 160-185 | 15 | 450-550 |
| SJ180/33-36 | Φ180 | 185-200 | 18.5 | 600-800 |
| SJ200/33-36 | Φ200 | 200-250 | 22 | 800-1000 |
Vertical type force feedingpelletizing line| Model | SJ45 | SJ65 | SJ90 | SJ100/120 | SJ120/150 | SJ150/180 | SJ180/200 |
| SJ100 | SJ120 | SJ120 | SJ150 | SJ150 | SJ180 | SJ180 | SJ200 |
| Screw Diameter(mm) | Φ45 | Φ65 | Φ90 | Φ100 | Φ120 | Φ120 | Φ150 | Φ150 | Φ180 | Φ180 | Φ200 |
| Motor Power(kw) | 15 | 22 | 37 | 45-75 | 37 | 75-110 | 45 | 132-160 | 55 | 160-185 | 75 |
| L/D | 25 | 25-28 | 25-28 | 25-33 | 10-12 | 28-33 | 10-12 | 28-33 | 10-12 | 28-36 | 10-12 |
| Capacity(kg/h) | 10-30 | 50-100 | 80-150 | 100-250 | 150-350 | 250-500 | 400-700 |
Remark:
Double stage is optional.The above capacity is based on film scrap/rigid flake/agglomerated material,actual capacity varies with different condition of raw material.Photos

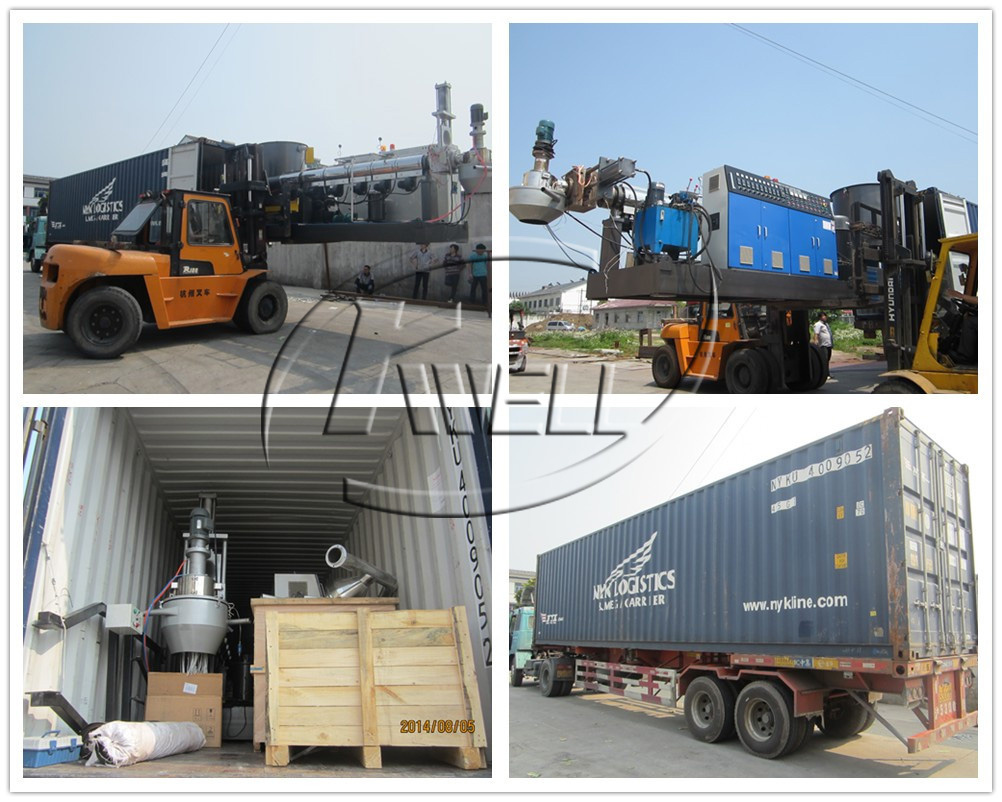

Package
Photos of our factory:
Spare Parts
Customer's requirement is our first priority. We could provide you reliable, fast and professional service through telephone, network and on-site at any time. Normally, we send our customer one set of spare parts together with the machines when we deliver the product.
During the warranty, we provide new parts free of charge for you to replace, exclude the parts broken that caused by improper operation.
In our spare parts department, you will get professional technical advice, as well as the relevant information regarding all products and services.
Top Quality
KWELL is a prestigious plastic recycling machinery manufacturer in China. Our customers have been enjoying a variety of advantages in particular in terms of the dedicated screw designed by our R&D team including good mixing, good dispersion, high productivity, and so on.
Implied Qarranty
KWELL Machinery guarantees all new products and parts to the first owner-operator to be free from defects in material and workmanship for a period of 12 months from B/L date, under normal use and service.
After-sales service
1.Send engineers to install, test the machines and offer technology guidance and worker training at customers' factory.
2.Offer 12 months free maintenance and life long service. After the warranty period, spare parts will be provided at basic cost.
3.Build customers database. All machines are traceable.
4.Visit customers and make quality trace periodically and take customers' feedback into account during routine practices.
5.Speed up service and spare parts supply.
Welcome your inquiry for details!
