PP/PE recycling granulating production making line/plastic machinery
Machine Application:HDPE, LDPE, LLDPE, PP, PS, PC, ABS, HIPS, TPU, EVA, PMMA and etc.
Machine Features:1.Durable material: wear-resistant screw
2.Plastic films, clean and wet materials are preferable to single extruder.
3.Low noise and steady operation.

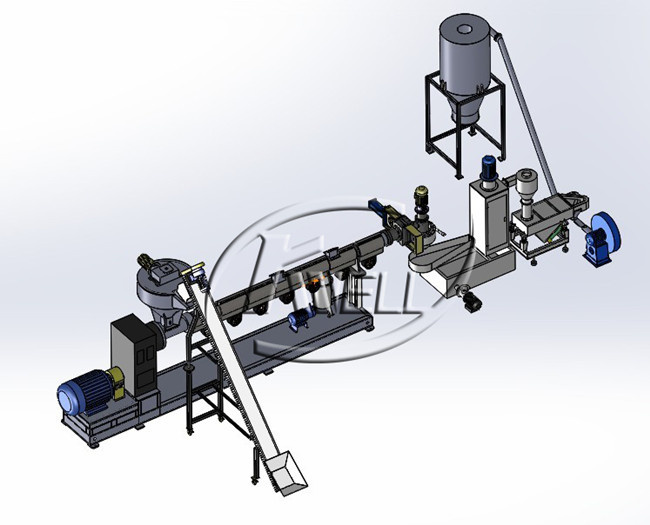

Machine composition:Vertical Force Feeder---Extrusion---Pelletizing: 3-in-1
Extruder type: One Stage; Two Stage (mother and baby)
Pelletizing type: Hot Die face Water ring pelletizing; Strand Noodle pelletizingHow it works:
Machine Technical Parameter:1. Side Force Feeder Type Pelletizing Line| Model | Screw Diameter
(mm) | Main Motor Power
(kw) | Side Force Feeder Motor Power
(kw) | Capacity
(kg/h) |
| SJ100/30 | Φ100 | 55-75 | 5.5 | 150-200 |
| SJ120/30 | Φ120 | 75-90 | 7.5-11 | 200-350 |
| SJ130/30 | Φ130 | 90-110 | 11 | 300-400 |
| SJ150/30 | Φ150 | 132-160 | 15 | 350-500 |
| SJ160/33 | Φ160 | 160-185 | 15 | 450-550 |
| SJ180/33-36 | Φ180 | 185-200 | 18.5 | 600-800 |
| SJ200/33-36 | Φ200 | 200-250 | 22 | 800-1000 |
2.Vertical Force Feeder Type Pelletizing Line| Model | SJ45 | SJ65 | SJ90 | SJ100/120 | SJ120/150 | SJ150/180 | SJ180/200 |
| SJ100 | SJ120 | SJ120 | SJ150 | SJ150 | SJ180 | SJ180 | SJ200 |
Screw Diameter
(mm) | Φ45 | Φ65 | Φ90 | Φ100 | Φ120 | Φ120 | Φ150 | Φ150 | Φ180 | Φ180 | Φ200 |
Motor Power
(kw) | 15 | 22 | 37 | 45-75 | 37 | 75-110 | 45 | 132-160 | 55 | 160-185 | 75 |
| L/D | 25 | 25-28 | 25-28 | 25-33 | 10-12 | 28-33 | 10-12 | 28-33 | 10-12 | 28-36 | 10-12 |
Capacity
(kg/h) | 10-30 | 50-100 | 80-150 | 100-250 | 150-350 | 250-500 | 400-700 |

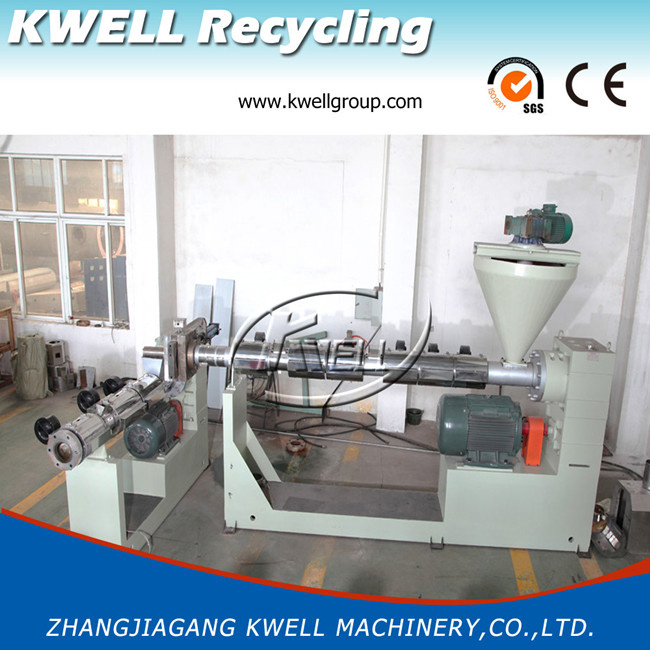

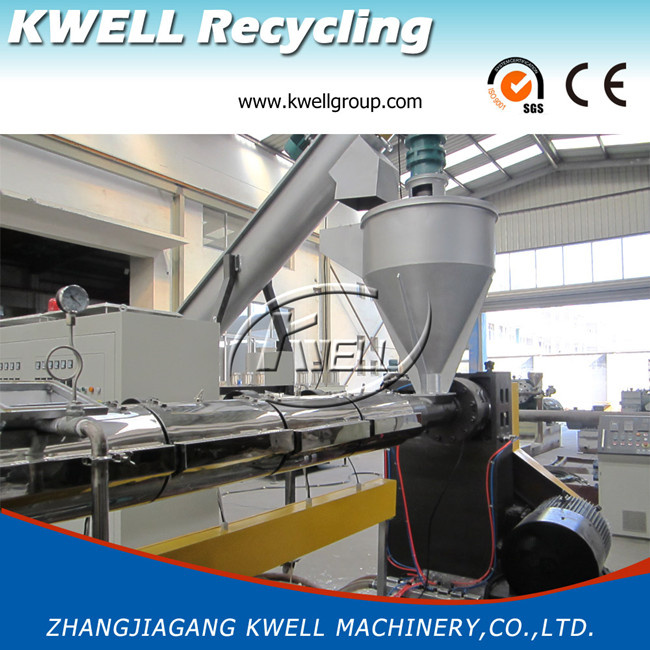

Machine Detail photos as a reference:

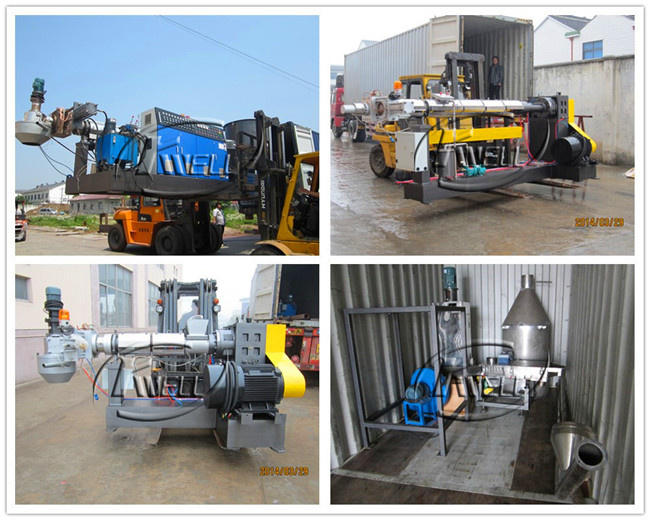

Machine Packing Details:
After-sale:1. Provide with installation, commissioning and training
2. Register and record customer information
3. Offer spare parts
4. Provide with necessary technical support for new application
5. Visit customer regularly and correct informationWhy choose us:1. Lower investment cost for a high quality and durable machine;
2. Low energy consumption with high production output;
3. Overseas installation and training are available;
4. Machine warranty with spares in stocking and in-time delivery;
5. Fast machine delivery and installation: KWELL produces on an average of 10 sets of plastic machines per month and can deliver the machine faster than most manufacturers. The regular delivery time of an KWELL recycling machine is 30 days.
Please convenient yourselves by me !!
http://kwellgroup.en.made-in-china.com/
Kwell machinery is a leading manufacturer of plastic recycling and extrusion machinery in China. Our company is located in Zhangjiagang City, Eastern Coast of China, with a history of more than 15 years and has 500 employees.
With the deep understanding of the plastic recycling & extrusion technology and owning excellent metal processing ability, we are trying our best to be out of the common in the product quality. We have been supplying a wide range of plastic machinery and after-sales services to our customers from more than 150 countries and regions.
Our company has taken the lead to obtain CE certificate, SGS certificate, IS09001: 2008 quality management system certification, persevere in the full implementation of "zero defect" quality control, strengthens the control of purchasing and supply, production technology, quality inspection, production marketing, capital arrangements, after-sales service and so on.
Continuous accumulated R&D and manufacturing experience, grasping of the latest recycling & extrusion technology and advanced management system, which make us to be your reliable and faithful business partner.
