| Prod Model: |
HF-1105 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size : As Your Request: |
Color : as Your Request |
| Delivery Time : About 7days: |
Sea Port : Shenzhen |
| Type: |
Rolling |
| Open Style: |
Rolling |
| Opening Type: |
With Remote Control |
| Certification: |
SGS |
| Position: |
Industrial |
| Surface Finishing: |
Finished |
| Material: |
Aluminium Alloy+PVC |
| Special Function: |
Sound+Temperature+Fir Proofing |
| Color: |
Red/Blue/Yellow/Green/Gray/Ornage/Transparent |
Product Description

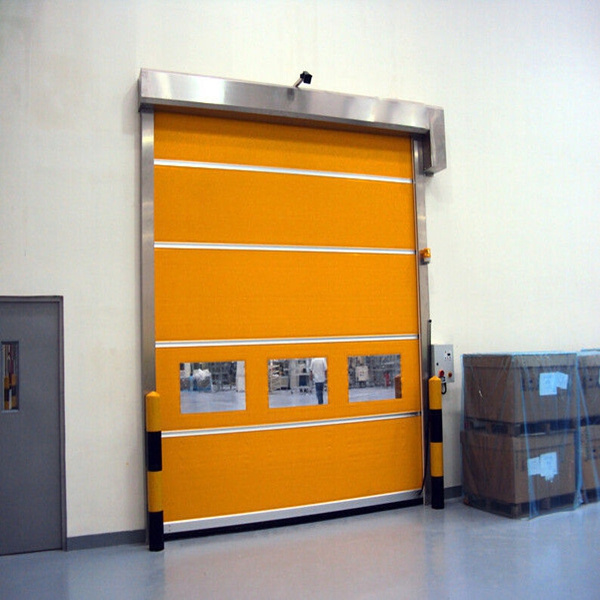

Plastic High Speed Door for Cold Stroage Applications (HF-1105)
Product Description

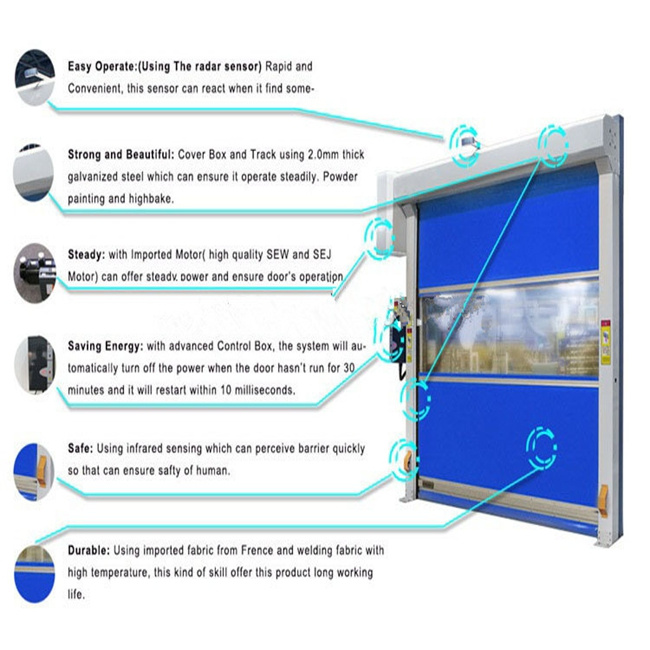

Main features:
Automatic, super fast opening and closing, reducing leakage of heat and air, heat preservation, hygienic, flexible PVC panel and beautiful, various colors availble
Application scope:
Inner and outer doors of all kinds of factories especially fit for food factory, cold storage, frequent logistics, chemical industry
Technical instruction:
Door dimension: Width / height 800-5000mm/2500-5000mm(Max dimension)
Normal speed: Open1.5m/s close 0.7m/s
Max speed: Open 2.0m/s close 1.0m/s
Opening direction: Vertical
Drive system: Electrical
Safety class: IP55
Control voltage: 24V
Opening frequency: 2000 time /day
Wind load: 30m/s
Safety device: Infrared photoelectric
Detail information:
1. Motor
SEJ /SNMA motor (SEW is optional). Work power source 220V/50HZ or 380V/50HZ. The power 0.55-1.5KW; F: IP55, 1500turns/minute. Operating temperature: -30-70 degree Celsius.
2. Control system
Schneider Inverter control system.
3. Steel construction system
Cover box: Galvanized steel, T=2.0 mm; Guide rail: Galvanized steel/Stainless steel /Aluminum alloy. Surface process: Electrostatic painting, various colors available.

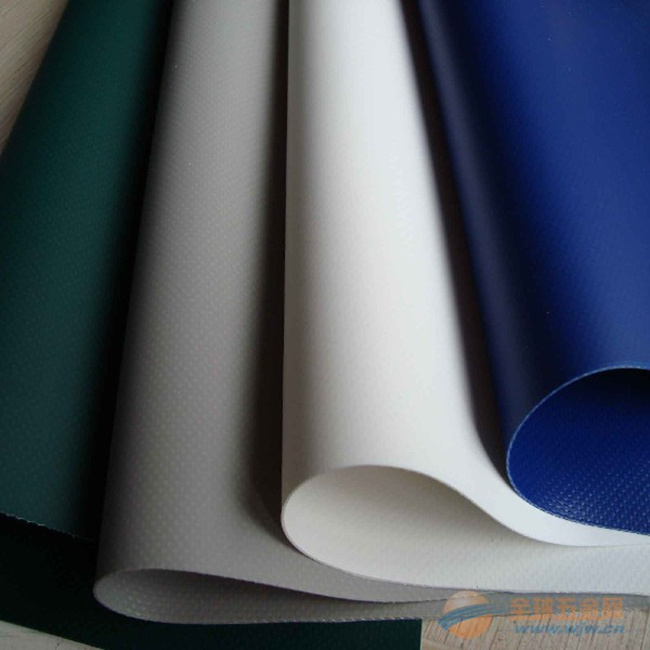

4. Curtain:
Brand: SOIEN, imported from Europe. Material: PVC Plastic Fiber; Thickness: 1.0 mm/1.2mm/1.5mm/2.0mm; Color: Yellow/ Bluse/Orange/White/Red/Transparent
5. Safety performance
A Photo cells of both sides.
B Proximity sensor, at the bottom.
6. Operation method
Control buttons of both sides

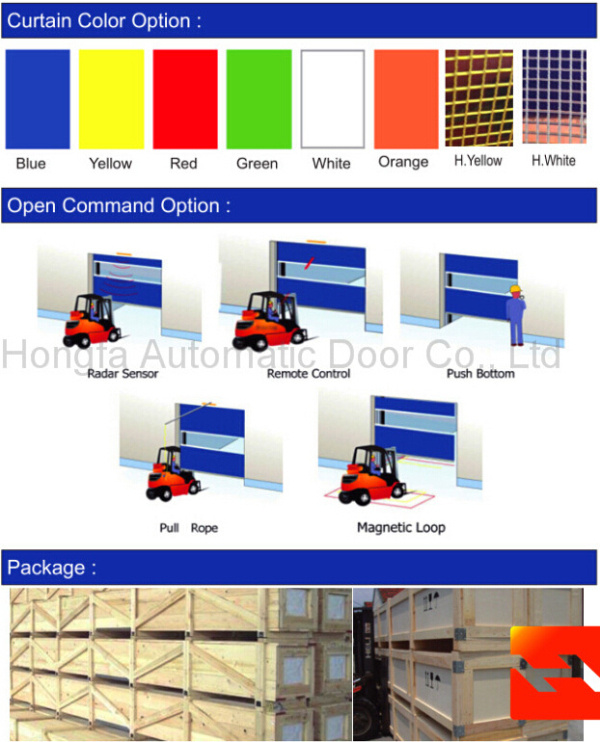

7. Control mode(optional)
Both-side geomagnetic ring/ Both side radar/ Both-side remote control / Both-side pull cord switch / linkage interlock
8. Opening speed
Adjustable btween 1.0m/s and 2.5m/s
9. Emergency opening
Manual swing bar available in case of power failure
Remarks:
1. Established in 1997, we have gained much experience in door solutions for various industries.
2. Honors and Certifications:
A. The member of Standard Committee of China Automatic Door and Garage Door
B. The member of Committee of China Steel Structure
C. China AAA enterprise
D. ISO9001: 2000 Management certification.
E. CE Certification
| Frame | 1.Power Coated Steel
2.Aluminum Track
3.Stainelss Steel Frame: S.S 201 & S.S 304 |
| Door Curtain | 0.8mm~1.5mm Thickness |
| Motor Choice | 1.German SEW
2.China SEJ / SNMA |
| Control Panel | JapanMitsubishi Danmark Danfoss |
| Command System | Radar Sensor, Magnetic loop , Remote Control, Push button, Rope Switch , ect^ |
| Safety Device | 1. Photocell Sensor(Korea Autonics)
2. Safety edge bottom (BUTTERFLY Pressure Wave Sensor) |
| Delivery Time | 7 -10 business days |
| Package | Plywood case or Cardboard , suitable for sea freight or air freight . |
