PLC Intelligent Polyurethane Memory Foam Sandal Making Machine
| Price: |
US $ 22000-88000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
DG-AIAMPU15X-JG |
| Condition: |
New |
| Shipping: |
Shipped in 15 Days After Payment |
| Warranty: |
One Year |
| Type: |
Polyurethane Foam Machine |
| Automation: |
Automatic |
| Computerized: |
Computerized |
| Certification: |
BV |
| Raw Material: |
Polyurethane |
| Principle: |
High Temperature Melt-Casting |
Product Description

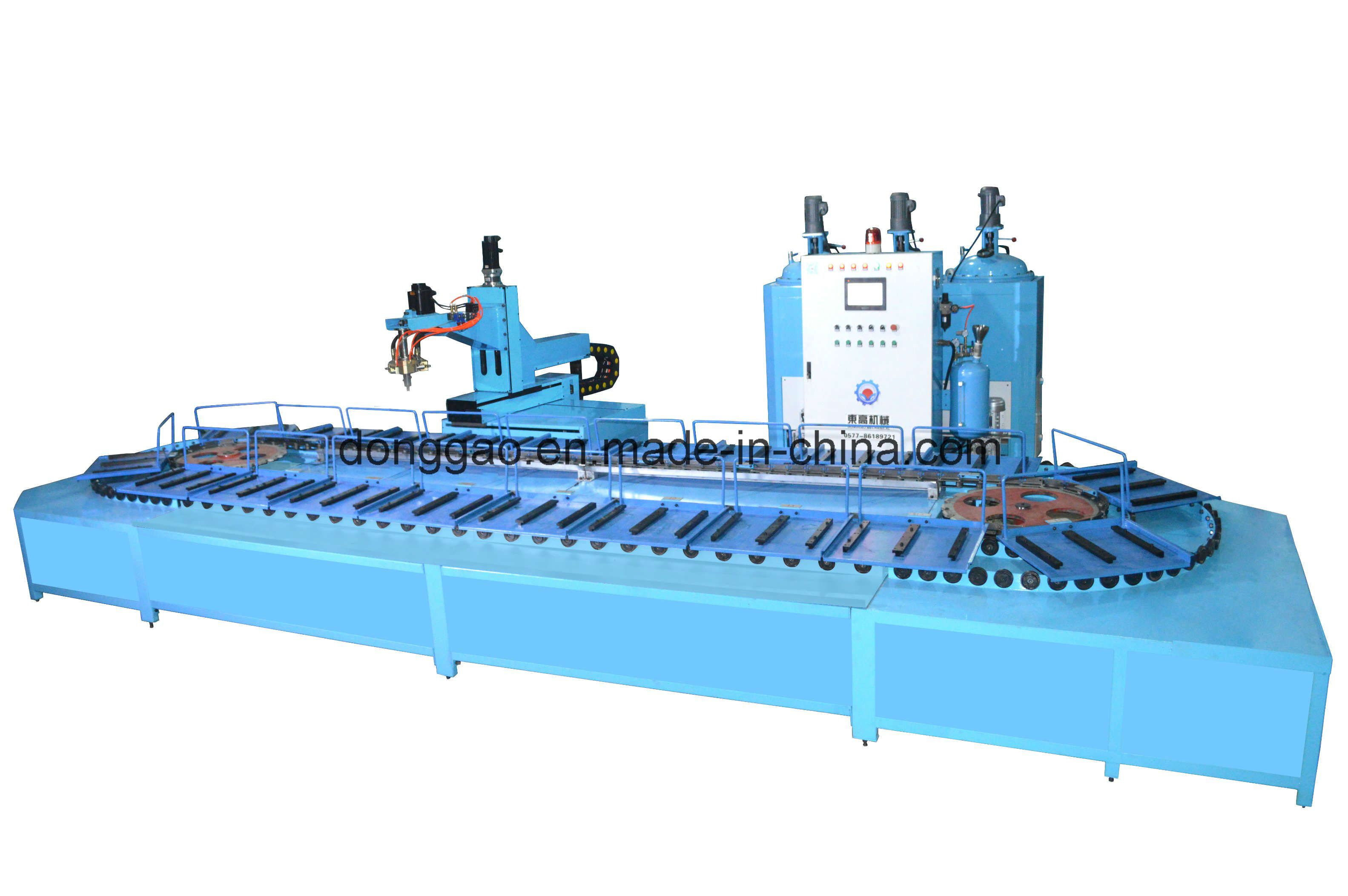

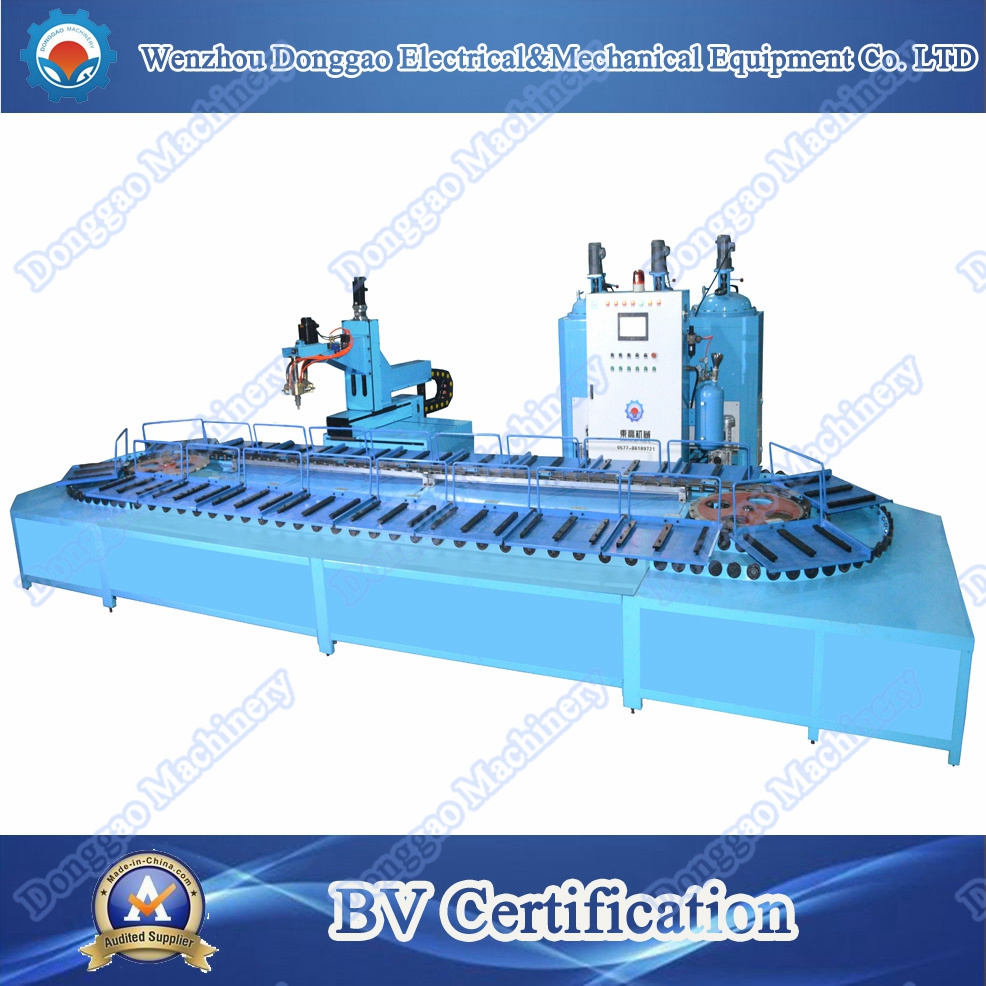

Details of PLC Intelligent Polyurethane Memory Foam Sandal Making Machine
Features:1.The three dimensional worktable of the pouring head is fully controlled by the PLC programming, which can keep the synchronous speed with the production line in real time.
2. High-precision measurement: accuracy of single group can reach 5‰. Durable high precision gear motor and PLC communication frequency conversion regulate the speed.
3. After inputting the program to the system controller, the process of mold stripping, release agent spraying and air blowing will be highly intelligent automatic in the assembly line.
4. Large colorful man-machine interface operation platform; PLC program controls every operating unit; temperature and pressure are controlled precisely through high-precision data acquisition module.
5. With medium speed (8600r/min), mechanical sealing and preventing contra-flow design, high-speed spiral mixing head is designed to reduce waste emissions. Mixing system with the cooling water cycle throughout extend the cleaning cycle (> 60 pairs).Application: The machine is suitable for producing polyurethane foam products, such as various types of polyurethane beach sandals, casual shoes, PU insoles and other foam products.Main parameters: | No. | Item | Parameter | No. | Item | Parameter |
| 1 | Total pouring
amount(g/s) | 50-150 | 7 | Stirring speed
(r/min) | 8600 |
| 2 | Volume of
A-material tank (L) | 3×120 | 8 | Casting cleaning cycle | ≤90 pairs |
| 3 | Volume of
B-material tank (L) | 120 | 9 |
Control system | PLC |
| 4 | Number of
metering pump | 3 | 10 | Total power
(kw) | 7.5 |
| 5 | Volume of
purge tank (L) | 25 | 11 | Dimension
(L*W*H/mm) | 1700×1800×2250 |
| 6 | Metering error(%) | 0.5 | 12 | Weight(kg) | 2000 |
(The machines can be customized.)FAQQ1: Are you trading company or manufacturer?
We are manufacturer of shoes machine and related equipment.
Q2: What's the delivery time?
Around 20~30 days after we receiving your deposit.
however, it is based on the order.
Q3: What about your machine warranty?
Our machine's warranty is 1 year (from the installation date)for all machine parts.
Exception: consumable machine parts such as screw, motor and ect. Damages caused by mis-operation.
Q4: If the machine's spare parts broke, where can I get ?
We will give you the spare parts which is vulnerable along with the shipment.
we have Q/C department to control the quality. When the machine is finished, we will make sure it's work well.
our quality is good ,in case it broken within one year ,we will sent you for free.
Q5: How to contact us?
Tel: +86-577-86189720 15057762175LinkedIn: Cody Yang
Our company, covering an area of more than 5, 000 square meters, is located in Wenzhou, one of the most economically dynamic cities in China. Our company has strong technical force, experienced working team and advanced level of technology. We firmly believe: Only an excellent team with high standard hardware investments can make first-class products and provide all- round services.
We are a professional PU equipment manufacturer dedicated to creating all sorts of smart products such as PU elastomeric casting machine, soft & hard foaming machine, PU production line and so on. We are an Expert on polyurethane equipments!
We continue to focus on high-quality products and superior customer service. Each member of our team has a passion to meet and exceed the highest level of customer service. Our customers know that we are trustworthy manufacturer who provide high-quality products, reliable order processing and delivery. We are committed to promoting a healthy and friendly partnership with our customers because…
Your success is Our success!
