| Prod Model: |
HF-2040 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Door Type: |
Automatic Rolling PVC Door |
| Door Frame Material: |
Stainless Steel or Aluminum Alloy |
| Curtain: |
France High Density Fabric |
| Curtain Thickness: |
0.8/1.2/1.5mm |
| Usage Temperature: |
-30 Deg ~ +70 Deg |
| Control System: |
Japan Mitsubishi Control Cabinet or Holip |
| Drive System: |
German Sew or Snma,Sej |
| Opening Speed: |
0.6-1.5m/S |
| Opening Frequency: |
1000-1500times/Day |
| Transparent Window: |
1.2/1.5mm |
| Material: |
Stainless Steel |
| Type: |
Rolling |
| Open Style: |
Rolling |
| Opening Type: |
Induced |
| Certification: |
SGS |
| Position: |
Industrial |
| Surface Finishing: |
Finished |
| Special Function: |
Sound+Temperature+Fir Proofing |
| Color: |
Red/Blue/Yellow/Green/Gray/Ornage/Transparent |
Product Description

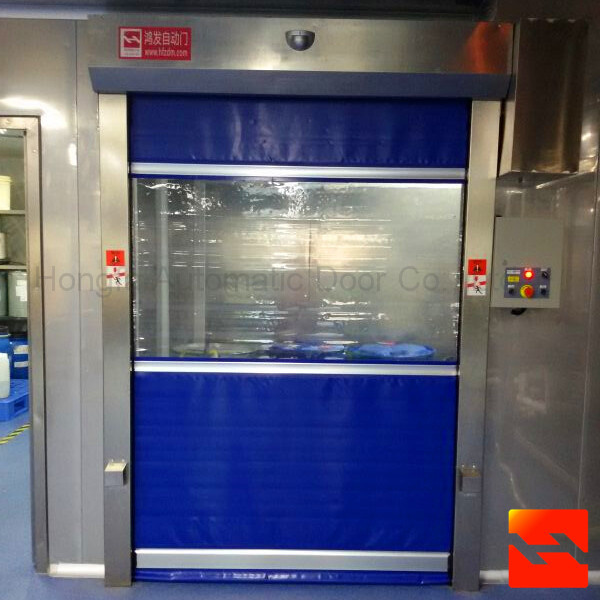

Purification Works High Speed Roller Shutter(HF-2040)
Door Specification:
1. Frame: 2MM thicknesses cold-roll Stainless steel.
2. Motor: Germany SEW brake motor,
3. Control system: Imported Japan Mitsubishi converter and PLC to control of electric box.
4. Opening & closing speed: 0.6-1.5m/s (adjustable).
5. Safety Device: Korea Photocell Sensor (AUTONICS), emergency stopping reaction when sensing obstacles.
6. Curtain: France high-density polyester fiber and the surface coating processing, thickness 0.8MM-1.5MM.
7. Wind resistant: The Aluminium alloy Reinforce Girder to increase wind resistant effect.
8. Transparent window: 1.2MM thickness transparent PVC window, size and location is up to your request.
9. Seal: Seal brush is Installed inside the guides, and the special bottom design, to fit any uneven ground.
10. Cotrolling way: Radar Sensor, Magnetic loop, Remote Control, Push button, Rope Switch, ect …
11. Delivery time: About 7 business days with contract and deposit confirmed.
12. Pyament item: 50% before production, and the other 50% before shipment
13. Warranty Details: We provide 12 months warranty for all doors and accessories.
What service you can get from us?
1) OEM service for you and your clients.
2) Arrange the shipment for you to everywhere.
3) CE / ISO-9001 / SGS Certification
4) Installation video or instruction for you.
5) Available suggestion about the correct doors.
6) Professional service supporting with different language, email or phone calling.
7) Operating guidance and instruction after installation.
8) Professional / Tirelessly after-sales service.
9) 12 Months warranty for all doors and accessories.
| Frame | 1.Power Coated Steel
2.Aluminum Track
3.Stainelss Steel Frame: S.S 201 & S.S 304 |
| Door Curtain | 0.8MM~1.5MM Thickness |
| Motor Choice | 1.German SEW
2.China SEJ / SNMA |
| Control Panel | JapanMitsubishi Danmark Danfoss |
| Command System | Radar Sensor, Magnetic loop , Remote Control, Push button, Rope Switch , ect... |
| Safety Device | 1. Photocell Sensor(Korea Autonics)
2. Safety edge bottom (BUTTERFLY Pressure Wave Sensor) |
| Delivery Time | 7 -10 business days |
| Package | Plywood case or Cardboard , suitable for sea freight or air freight . |
F A Q:
1. What's the payment details?
Deposit before production, and balance before shipment.
2. What's the delivery time?
For common order, about 7 days only.
3. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.
4. What certification you can provide?
ISP-9001; CE; SGS
5. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.
6. What's the MOQ?
We accept 1 set as sample order.
7. How about the package?
Plywood case or Cardboard, suitable for sea freight or air freight, as your request.
Established in 2008, HONGFA Automatic Door Co., Ltd is a leading manufacturer of automatic doors. We are located in Shenzhen (beside HongKong), an industrial, convenient and beautiful city in the south of China. It is very convenient to all over the world by air or sea.
HONGFA is a high-tech company that integrates development, production, sales and service. Over the years, we have designed, developed and manufactured a wide range of automatic doors, such as fast rolling curtain doors, high speed automatic doors, medical automatic sliding doors, automatic inductive doors and so on. We has passed certification of ISO9001 international quality system.
HONGFA' S full range of products are made by Germany advanced technology. As the automatic door professional manufacturer, our company has perfect quality management system and after-sale service system, has good cooperation partnership with many national key projects. Our doors have been exported to Europe, Americas, Africa, the Middle East, and other Asia countries. Germany advanced technology, top quality material, advanced management, strong development and perfect service system make us stronger and stronger.
HONGFA people have the strong responsibility on our company and clients, not only selling product and service, but also ourselves. We creat the better life style.
We are looking forwards to building a strong business partnership with you and your company.
Welcome to us! ! !
