| Price: | US $ 0.78-0.9/Square Meter |
|---|---|
| Min Order: | 5000/Square Meter |
| Pay Type: | L/C,T/T,D/P |
Product Name: Mesh For Building Site
CUNEED Coated Mesh is a PVC coated polyester woven mesh fabric that is non-toxic, smooth and abrasion resistant. It is oil proof, water proof, and ultra-violet radiation proof, making it ideal for outdoor use.
Product Features :Wide applicability,windproof performance, strong resistance to high and low temperature, good surface effect and printing performance.and according to customer requirements,the products can be treated to have flame retardant, anti-mildew, environmental protection, fluorescent and other properties.

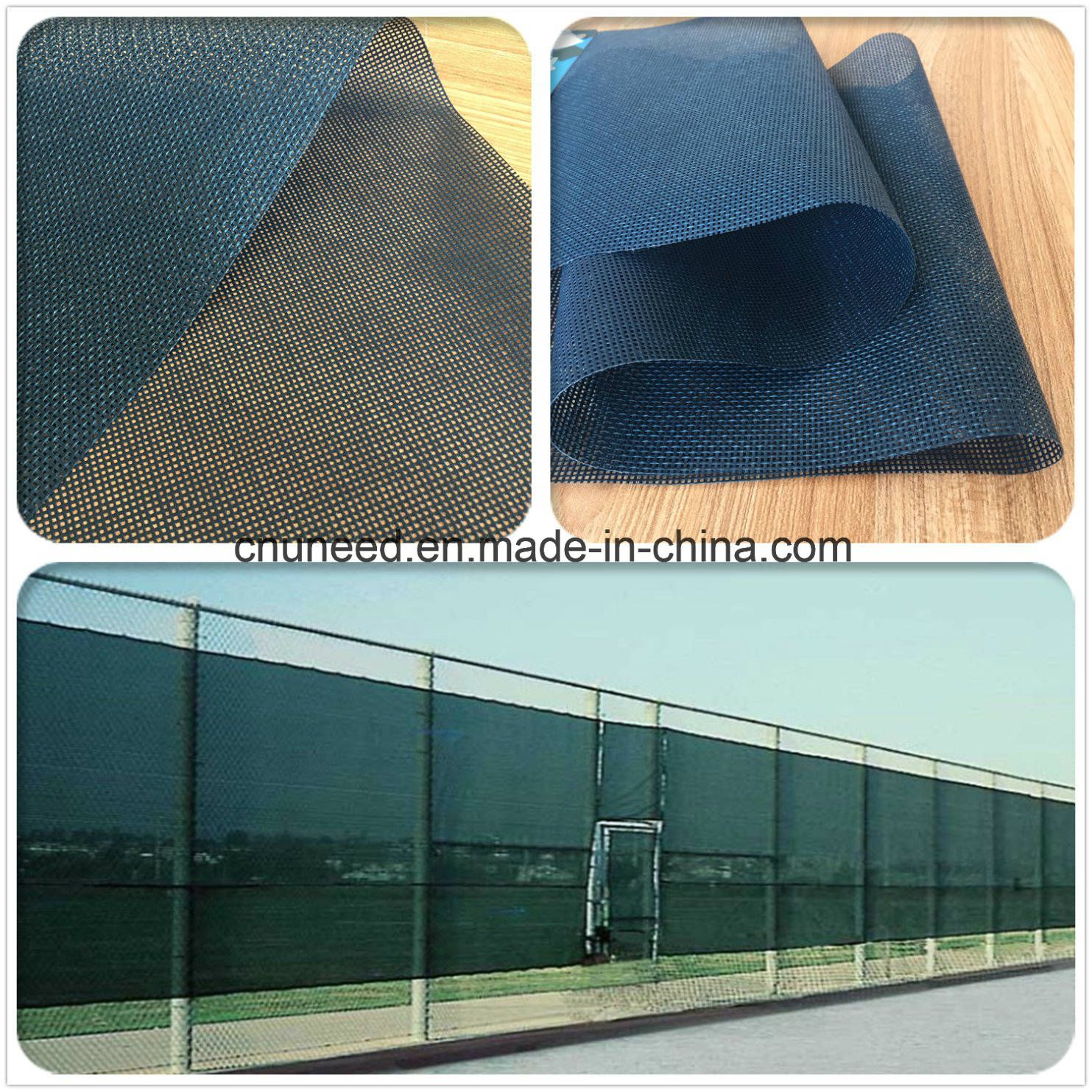

Application: protective screen ,tennis court,Building site sports barriers/back stops,general safety netting ,debris netting
| Base Fabric Items | 1000*1000D 12*12 | 500*1000D 18*12 | 1000*1000D 14*14 | 1000*1000D 4*6 | Test Method | |
| Weight(GSM/M2) | 260 | 260 | 310 | 500 | DIN53352 | |
| Tesnsile strength (N/5CM) | L | 1400 | 1000 | 1900 | 1100 | DIN53354 |
| W | 1300 | 1400 | 1700 | 1000 | ||
| Tearing strength (N/5CM) | L | 250 | 160 | 210 | 180 | DIN53363 |
| W | 220 | 200 | 190 | 160 | ||
| Enviromental (Optional) | REACH,ROHS,EN71,ASTM-F963 | |||||
| Colour | ANY COLOUR | |||||
| FR Certification (Optional) | B1,B2,M1,M2,NFPA-701,DIN7805200,ASTM D1230 | |||||
| temperature | -30-+70ºC | |||||
| Width(M) | 1 | |||||
| All our technical characteristics are indicative | ||||||

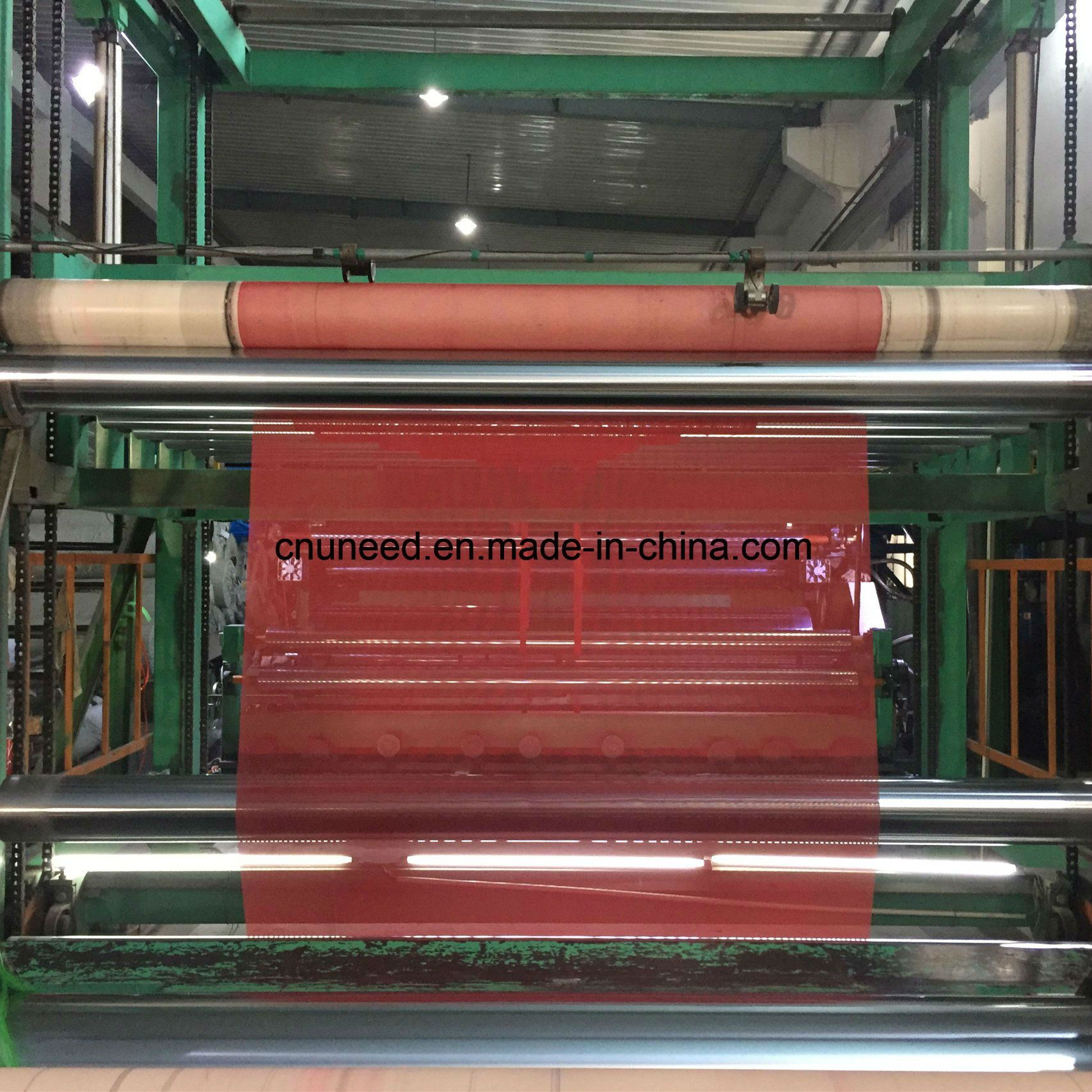

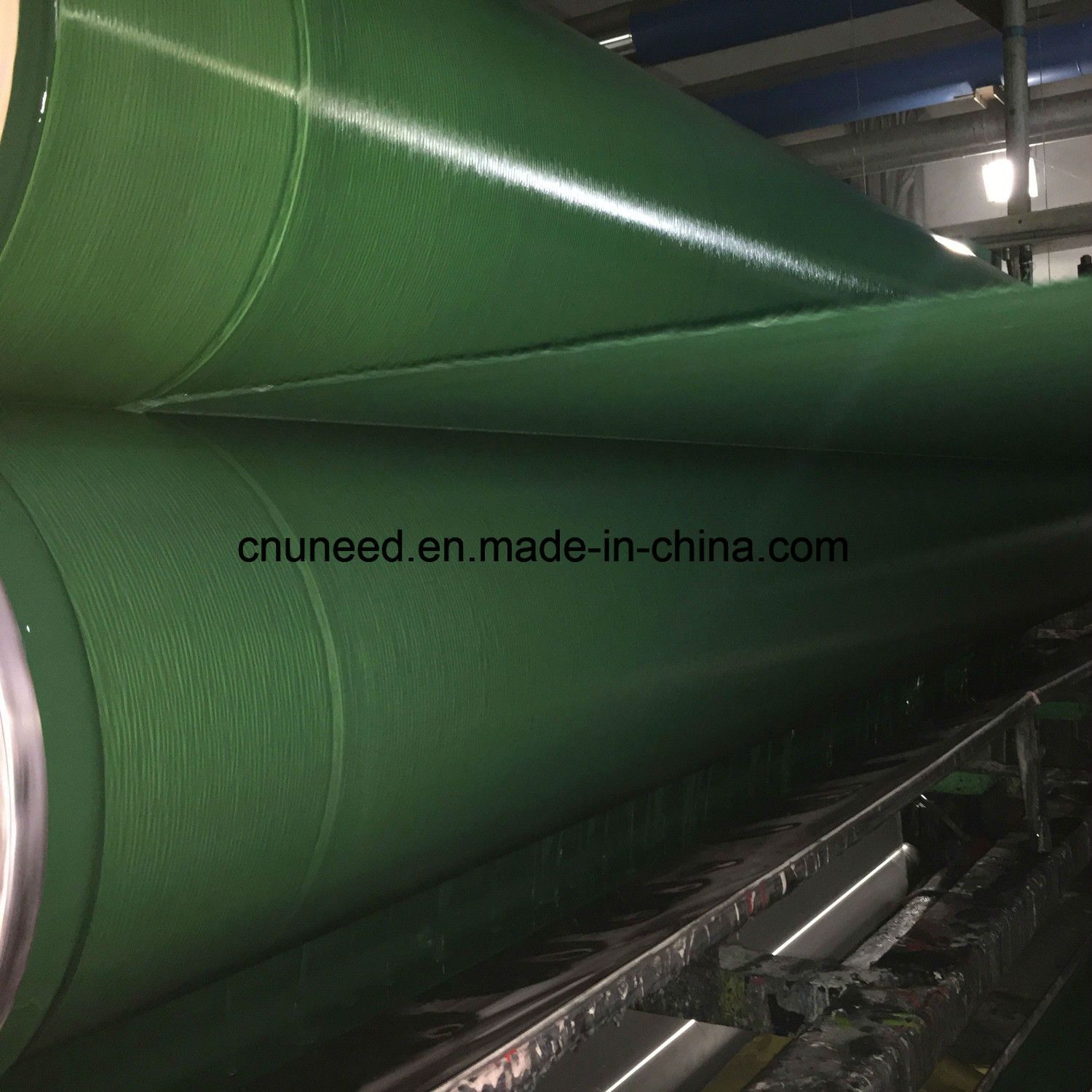

FACTORY

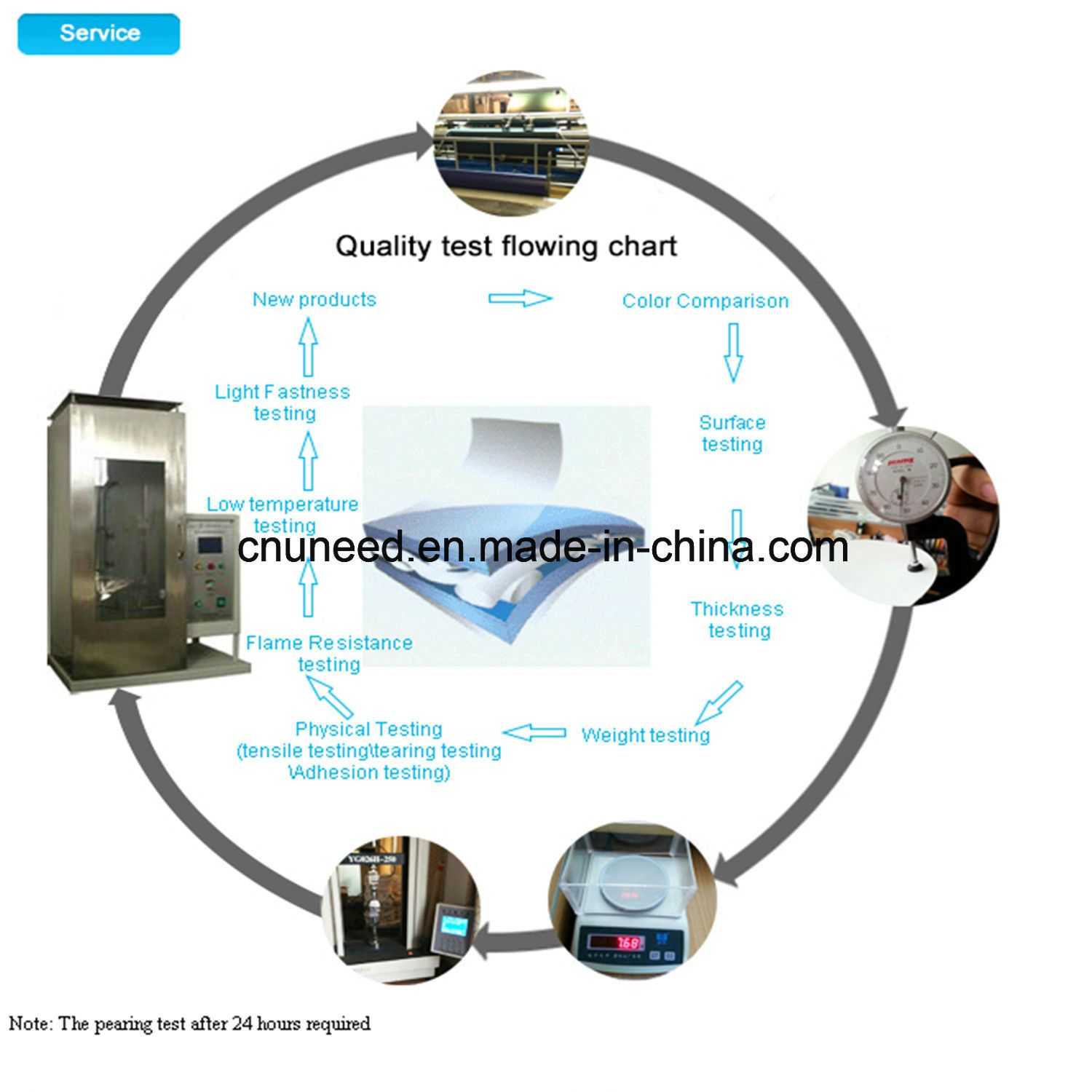

PVC MESH TEST
PACKGE
| Prod Model: | UND-TM001 |
|---|---|
| Technics: | Woven |
| Color: | Customized |
| Length: | 50m (or Customized) |
| Ultra-Violet: | UV |
| Delivery: | Shipped in 20 Days After Payment |
| Type: | Tarpaulin |
| Style: | PVC Coated |
| Material: | PVC+Polyester |
| Pattern: | Taffeta |
| Width: | 81"/92" |
| Gram Weight: | 130-450GSM |
