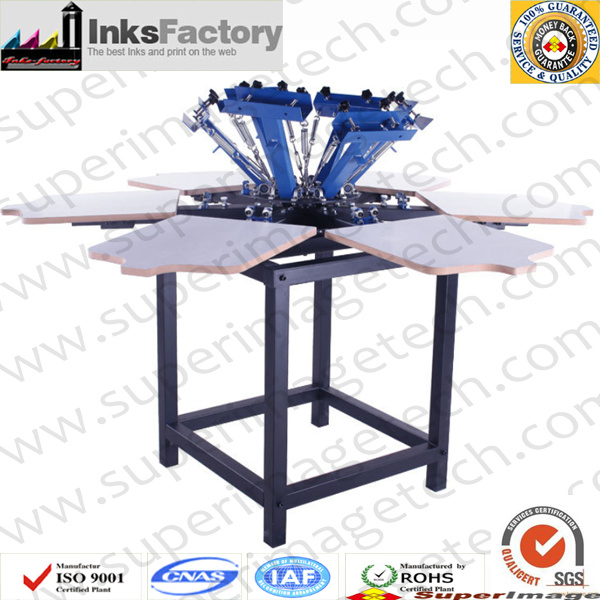

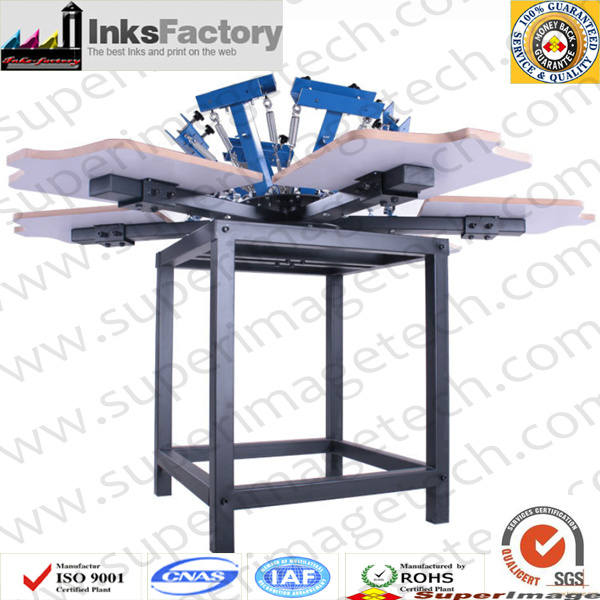

SuperImage Semi-Automatical Screen Printer
SuperImage Semi-Automatical Screen printing machine
6-Color/6-Work Stations
Accurate Orientation Chromatography
Top Quality & Stability & Excellent WarrantyThis machine can be used in all kinds of overprint printing, especially the T-shirt screen printing. The bedplate is designed as a special desk for T-shirt, which is more convenient and more accurate for the screen printing t-shirt.The machine can also be used for garments, woven fabrics, pieces, bags, umbrellas, metal, paper, plastic, copybook, circuit, wood, glass, ceramic tiles and various planar screen printing products such as leather shrinkage deformation of large articles of multicolor overprint accuracy. The use of thermosetting ink, mucilage, and other materials printing.The front and back sides of the worktable can be moved, and the screen can be adjusted in front, left and right, rotating and fine-tuning, and the front end of the screen can be adjusted up and down. Orientation Chromatography is convenient and accurate. It can be widely used in silk screen printing of cloth, clothing, T-shirt and textile.
Scope of application:SuperImage SP6-6 series screen printer can print all textile products, such as t-shirts, pajamas, fabrics, cloth, non-woven bag, umbrella, water mark, also suitable for printed boards, paperboard, Fiberboard, glass, PVC, ceramic, marble and other materials.
Main Features:1. adopting new synchronous servo system, transmission speed and better stability.
2. the table automatically rotate each station positioning accuracy (± 0.05mm).
3. blade for each colour print head uses the frequency conversion velocity modulation, micro-gas lift.
4. printing ink scraper knife pressure, angle, speed and scrape ink count can be set or adjusted.
5. easy to maintain, easy to operate.
6. the design of the whole machine is reasonable, simple and practical.
7. the whole machine adopts simple design, saving space, more convenient handling and migration;
8. the machine frame and screen printing plates can rotate in 360 degrees.
9. the machine adopts all metal structure, the body adopts advanced electrostatic spraying, the appearance is elegant, clean and convenient. The main installation parts are stainless steel materials.

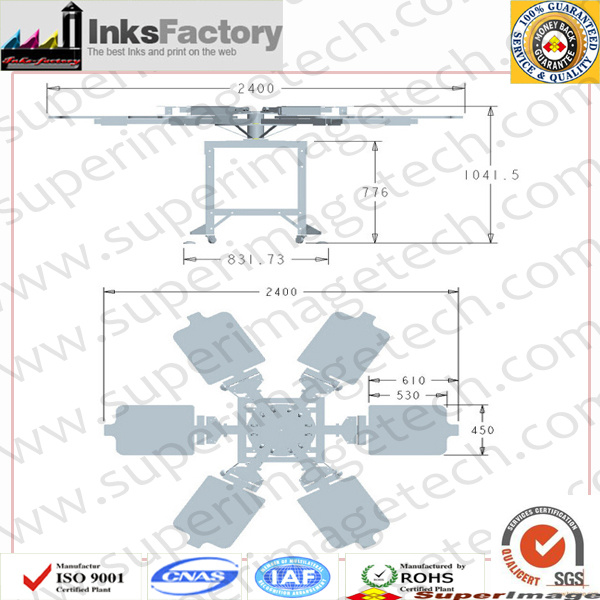

Basic Data and Specification:
| Products Code | SuperImage SP6-6# |
| Products Name | 6-Color/6-Plate Screen Printer |
| Screen Plate Size | 45*55CM |
| Screen Plate Quantity | 6 PCS |
| Print Color | 6 Color |
| Automatic Type | Semi-automatic |
| Print Products | T-shirt, Scraf,Towel,Bags,Garments,etc |
| Print Speed | 1000Sheet/Hour |
| Max.Print Thickness | 100mm |
| Max.Print Area | 400*500mm |
| Orientation Chromatography | Accurate |
| Screen Frame Movement | 360o Rotating |
| Machine Size | 190*190*104cm |
| Machine Net Weight | 75KG |
| Machine Gross Weight | 85KG |
Quality Warranty:
SuperImage affords full quality warranty for our screen printers products.
For any inferior quality products or loss caused by inferior products quality, SuperImage will be responsible for products-changing, returning and replacements delivery, as well as related compensation.
