spiral Dryer Mesh Fabric for Paper Machine

Name: spiral Dryer Mesh Fabric for Paper Machine
Brand: FullPackage
SKU: 721721692
Availability: InStock
Rating: 5 (134 reviews)

Price:	US $ 10-4016
Min Order:	1016
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Sun Hong Fabric factory is a professional Industrial Fabric manufacturer for tissue ,package ,writing &news printing paper etc. Our products have the press felt, forming wire and dryer fabric which can meet the machine speed under 1800 m/min. Our mainly producing equipment is imported from Europe . Our technical team own 30 years experiences on designing and after sales service to keep our fabric good performance on your paper machine .

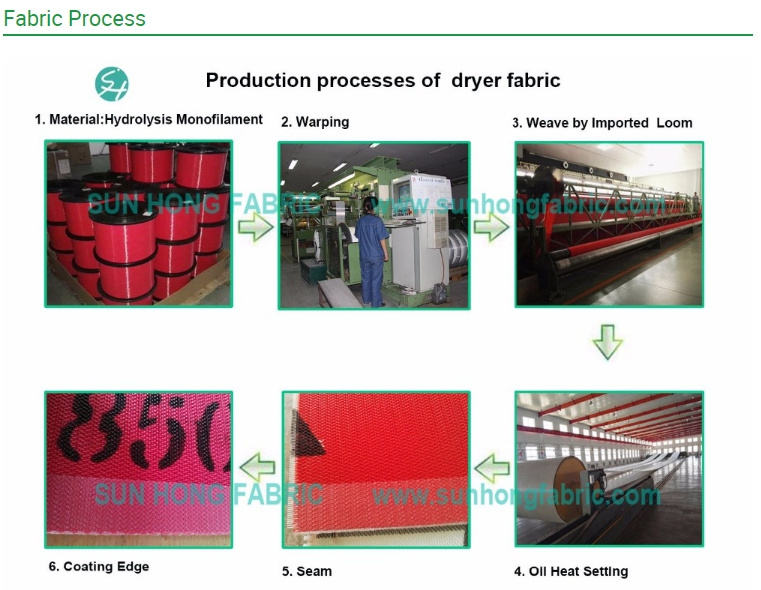

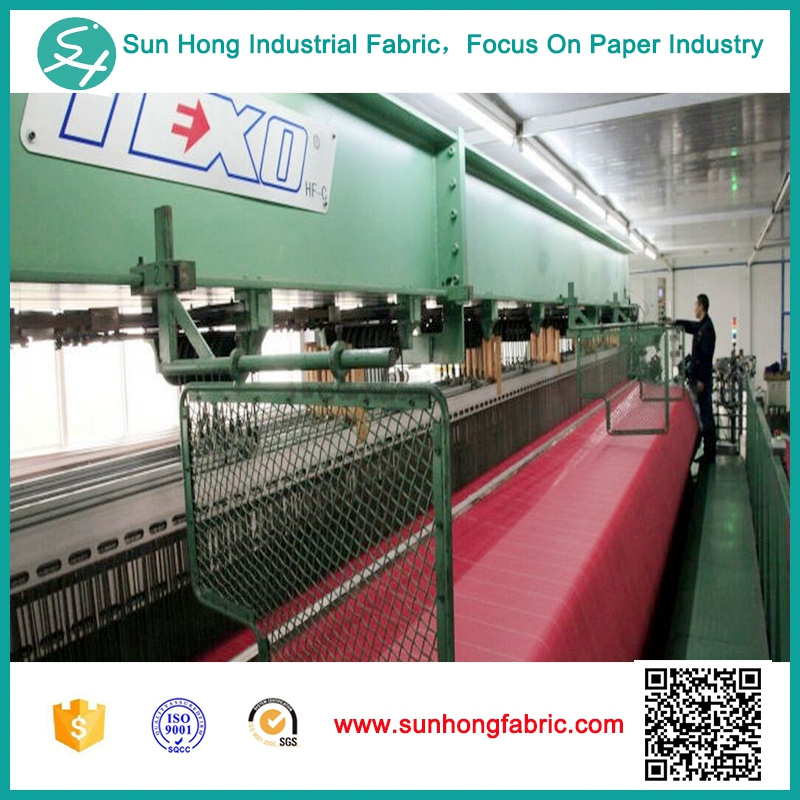

The following photos show our workshop for paper machine clothing products .

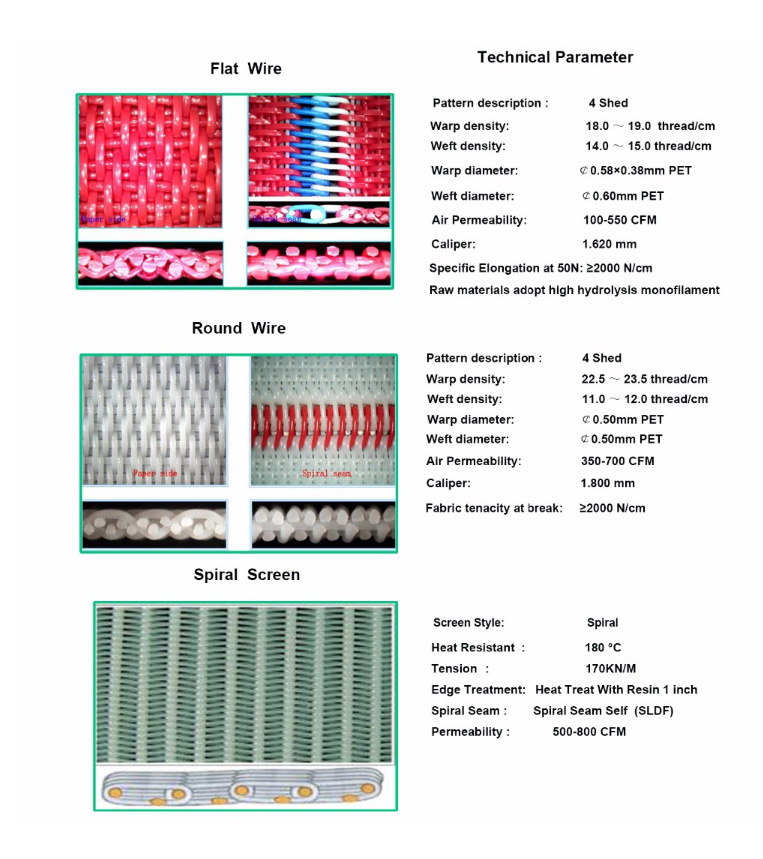

Polyester Dryer Fabric -- Round Wire / Flat Wire/ Spiral Wire
According to the seam mode, it can be divided into insert, pin, pin ring and spiral ring join.
3-shed one layer and a half polyester dryer belt are suitable for drying papers below 70g.

4-shed double layer polyester dryer belt is suitable for drying papers above 70g.

SUNHONG polyester dryer fabric can bring your machine : dryness increased, paper surface improved and energy saved. They can meet your paper requirment, from tissue paper ,writing &newsprinting ,package paper to paper board .

wire Diameter(mm) strength(N/cm)

Types of Spiral Dryer Fabric	Model of fabrics	warp	weft	Area of the surface	Air Permeability (m³/m²h)
Coarse Loop	LW90110	0.90	1.10	≥ 2300	21000±500
Large Loop	LW4080	0.90	1.10	≥ 2000	18000±500
Medium Loop	LW3868	0.70	0.90	≥2000	16000±500
Fine Loop	LW3560	0.6	0.80	≥2000	15000±500
Micro Loop	LW3252	0.50	0.70	≥1800	15000±500
Medium Loop (Flat Wire)	JW3868	*0.480.82**	0.80	≥2000	10000±500

FAQ:
1.How to make an inquiry of fabric ?
You need to provide the following information

speed of paper making machine
kind of paper,
GSM of paper

If you have any special requirement. We'll provide a formal quotation list after your inquiry received.

2.Could you provide free sample ?
Yes, we can provide free sample together with our catalogue for A Deepen understanding to fabric . But the courier charge will on your side. We'll send back the courier charge from the order you placed.

Contact Us
Jenny
Cell:+86 150 5082 6262
www.sunhongfabric.com

Prod Model:	SH-SDF110
Fabric Name:	Spiral Dryer Fabric
Fabric Material:	Polyester
Weave Type:	Flat, Round,Spiral
Fabric Color:	Make-to-Order
Fabric Uasge:	Paper Industry ,Drying,Conveyor Belt and etc.
Fabric Application:	Tissue,Packing, Cultural,Special Paper and etc.

Xuzhou Sun Hong International Trade Co., Ltd. is a professional manufacturer and exporter that is concerned with the design, development and production of industrial fabrics. All our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

We have our own factory which covers an area of 23, 000 square meters and has more than 2000 experienced workers. They get the training once a month in order to improve the quality and standardize production management.

As the ministry of foreign trade now we boast an annual sales figure that exceeds USD 500, 0000.

Our main products includes: Forming fabrics, press felts, dryer fabrics, Dryer cylinder, suction sheets, presses rolls, stainless steel wire meshes and other spare parts used in paper machine.

Currently, our products are exporting to Thailand, Brazil, Egypt, Mexico and other Western countries which get good reactions from clients.

Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction.

We believe in reasonable prices, efficient production time and good after-sales service.

If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the future.
