Stainless Steel Cloth 1 -2300mesh, Wire Netting, Net (Dutch, Twill, Plain Weave)

Name: Stainless Steel Cloth 1 -2300mesh, Wire Netting, Net (Dutch, Twill, Plain Weave)
Brand: FullPackage
SKU: 711941782
Availability: InStock
Rating: 4.6 (113 reviews)

Price:	US $ 120/Roll
Min Order:	1/Roll
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MWN-WC04
Ss Grade:	302,304,304L,316,316L,321 and 430 etc.
Standard Rolls Size:	1m X 30m; 1.22m X 30.5m. Other Sizes Can Be Custom
Material:	SUS304
Hole Shape:	Square
Application:	Window Curtain
Type:	Stainless Steel Plain Wire Mesh
Material Type:	Stainless Steel Wire
Weave Technique:	Plain Weave
Wire Mesh Width:	1m
Technique:	Woven
Certification:	SGS
Nickels:	According to Different Stainless Steel Grade

Product Description

Stainless Steel Wire Net, Netting, Mesh, Cloth, Screen

Weicai's stainless steel wire mesh has plain weave,plain dutch weave,twill weave and twill dutch weave,etc

Plain weave mesh from 1 x 1mesh to 635mesh x 635mesh.

Plain dutch mesh: 10 x 64; 12 x 75; 24 x 110; 25 x 140; 30 x 150; 35 x 180; 40 x 200; 45 x 220; 50 x 250; 60 x 300; 65 x 320; 70 x 400; 80 x 700.

Twill weave mesh: 250; 300; 325; 350; 400; 450; 500;

Twill dutch mesh: 20 x 250; 30 x 300; 50 x 500; 80 x 700; 80 x 780; 90 x 780; 100 x 780; 100 x 900; 120 x 1100; 150 x 1400; 180 x 1800; 165 x 1400; 200 x 1400; 200 x 1800;210 x 1900; 250 x 2000; 280 x 2200; 300 x 2200; 325 x 2300;400 x 2800.

Stainless steel material: 302,304,304L,316,316L,321 and 430 etc.

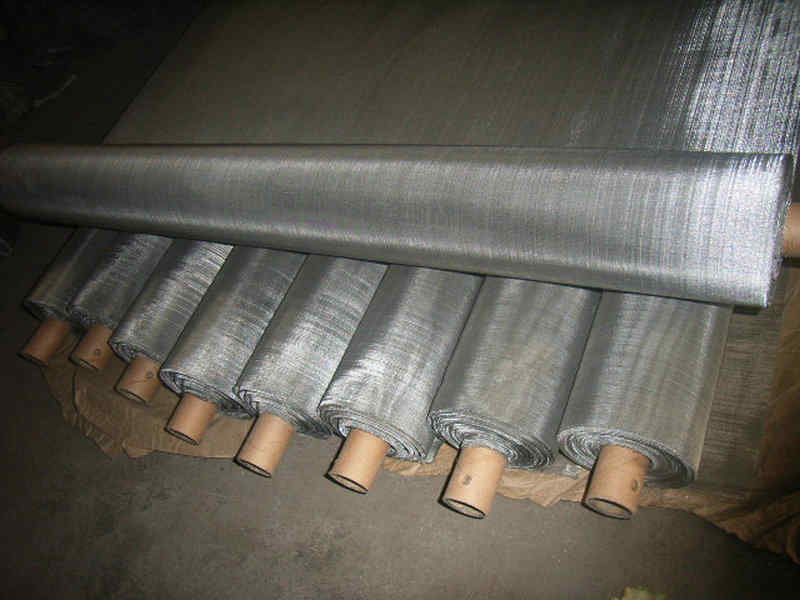

Standard rolls size:1m x 30m; 1.22m x 30.5m. Other sizes can be customized

Processed stainless steel wire mesh products, such as mesh discs,mesh filters,mesh bag,etc can be customized according to clients' drawing or details.

Mesh/Inch	Wire Diameter		Aperture		Open Area	Weight(LB) / 100 Square Foot
Mesh/Inch	Inch	MM	Inch	MM	%	Weight(LB) / 100 Square Foot
1x1	.080	2.03	.920	23.37	84.6	41.1
2X2	.063	1.60	.437	11.10	76.4	51.2
3X3	.054	1.37	.279	7.09	70.1	56.7
4X4	.063	1.60	.187	4.75	56.0	104.8
4X4	.047	1.19	.203	5.16	65.9	57.6
5X5	.041	1.04	.159	4.04	63.2	54.9
6X6	.035	.89	.132	3.35	62.7	48.1
8X8	.028	.71	.097	2.46	60.2	41.1
10X10	.025	.64	.075	1.91	56.3	41.2
10X10	.020	.51	.080	2.03	64.0	26.1
12X12	.023	.584	.060	1.52	51.8	42.2
12X12	.020	.508	.063	1.60	57.2	31.6
14X14	.023	.584	.048	1.22	45.2	49.8
14X14	.020	.508	.051	1.30	51.0	37.2
16X16	.018	.457	.0445	1.13	50.7	34.5
18X18	.017	.432	.0386	.98	48.3	34.8
20X20	.020	.508	.0300	.76	36.0	55.2
20X20	.016	.406	.0340	.86	46.2	34.4
24X24	.014	.356	.0277	.70	44.2	31.8
30X30	.013	.330	.0203	.52	37.1	34.8
30X30	.012	.305	.0213	.54	40.8	29.4
30X30	.009	.229	.0243	.62	53.1	16.1
35X35	.011	.279	.0176	.45	37.9	29.0
40X40	.010	.254	.0150	.38	36.0	27.6
50X50	.009	.229	.0110	.28	30.3	28.4
50X50	.008	.203	.0120	.31	36.0	22.1
60X60	.0075	.191	.0092	.23	30.5	23.7
60X60	.007	.178	.0097	.25	33.9	20.4
70X70	.0065	.165	.0078	.20	29.8	20.8
80X80	.0065	.165	.0060	.15	23.0	23.2
80X80	.0055	.140	.0070	.18	31.4	16.9
90X90	.005	.127	.0061	.16	30.1	15.8
100X100	.0045	.114	.0055	.14	30.3	14.2
100X100	.004	.102	.0060	.15	36.0	11.0
100X100	.0035	.089	.0065	.17	42.3	8.3
110X110	.0040	.1016	.0051	.1295	30.7	12.4
120X120	.0037	.0940	.0064	.1168	30.7	11.6
150X150	.0026	.0660	.0041	.1041	37.4	7.1
160X160	.0025	.0635	.0038	.0965	36.4	5.94
180X180	.0023	.0584	.0033	.0838	34.7	6.7
200X200	.0021	.0533	.0029	.0737	33.6	6.2
250X250	.0016	.0406	.0024	.0610	36.0	4.4
270X270	.0016	.0406	.0021	.0533	32.2	4.7
300X300	.0051	.0381	.0018	.0457	29.7	3.04
325X325	.0014	.0356	.0017	.0432	30.0	4.40
400X400	.0010	.0254	.0015	.370	36.0	3.3
500X500	.0010	.0254	.0010	.0254	25.0	3.8
635X635	.0008	.0203	.0008	.0203	25.0	2.63

Gauge	Mesh	Wire Diameter (MM)	Reference values of particles passed (micron)
40	10x64	0.55x0.42	260
50	12x75	0.45x0.35	220
80	24x110	0.35x0.25	160
100	25x140	0.28x0.20	100
120	30x150	0.25x0.18	80
140	35x180	0.20x0.16	70
160	40x200	0.18x0.13	60
180	45x220	0.16x0.12	56
200	50x250	0.15x0.11	50
240	60x300	0.14x0.09	45
260	65x320	0.13x0.08	36
280	70x400	0.125x0.07	34
300	80x700	0.11x0.039	32

Mesh	Wire Dia.(MM)	Opening (MM)	Material (AISI)
250	0.040	0.063	316
300	0.040	0.044	316
325	0.035	0.043	316L
350	0.030	0.042	316L
400	0.030	0.033	316L
450	0.028	0.028	316L
500	0.025	0.026	316L

Gauge	Mesh	Wire Diameter (MM)	Reference values of particles passed (micron)
80II	20x250	0.28x0.2	38
120II	30x300	0.25x0.18	36
200II	50x500	0.14x0.11	34
320I	80x700	0.11x0.08	32
320II	80x780	0.10x0.07	30
360	90x780	0.10x0.07	25
400I	100x780	0.10x0.07	22
400II	100x900	0.10x0.063	20
500	120x1100	0.07x0.05	17
630	150x1400	0.063x0.04	16
650	180x1800	0.07x0.04	14
685	165x1400	0.063x0.032	13
795I	200x1400	0.07x0.04	12
795II	200x1800	0.05x0.032	10
850	2l0x1900	0.045x0.03	10
1000	250x2000	0.045x0.028	8
1125	280x2200	0.036x0.026	7
1225	300x2200	0.036x0.026	6
1280	325x2300	0.035x0.025	5
1600	400x2800	0.03x0.018	3
