Universal Low Cost CA6166 CA6266 Gap Bed Lathe Machine
| Price: |
US $ 8500-17100/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
CA6166 CA6266 |
| Max.swing Over Bed: |
660mm |
| Max. Swing Over Carriage: |
400mm |
| Max. Swing In Gap: |
880mm |
| Effective Gap Length: |
210mm |
| Max. Length Of Work Piece: |
750 1000 1500 2000 2200 3000 4000mm |
| Width Of Bed: |
400mm |
| Section Of Turning Tool: |
25X25mm |
| Spindle Speeds: |
10-1400rpm/16-1400rpm |
| Hole Through Spindle: |
52mm. |
| Spindle Taper: |
MT6 |
| Type: |
Horizontal Lathe |
| Processing Accessory: |
Chuck CNC Lathe |
| Tool Holder: |
Single-tool Holder CNC Lathe |
| Power Source: |
Mechanical Drive |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Automatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
Product Description
Universal Low Cost CA6166 CA6266 Gap Bed Lathe Machine

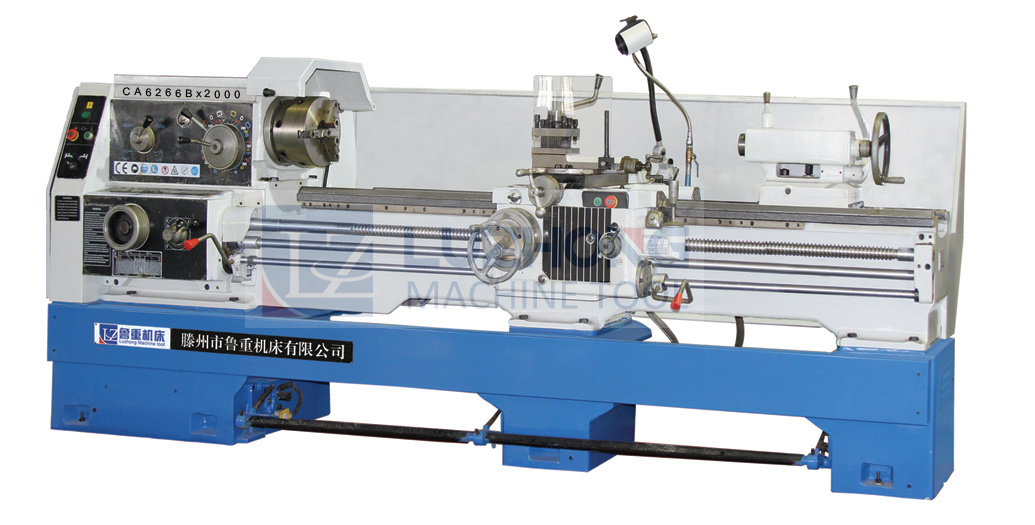

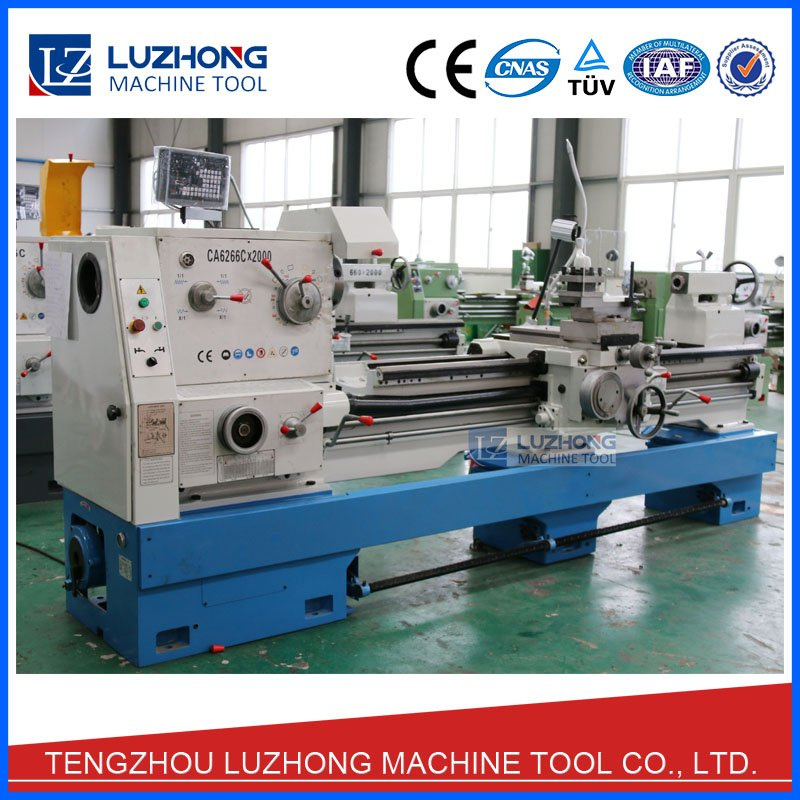

Product pictures:
The main performance characteristics:1 Machine tool head box and bed, tailstock, Supporting plate, etc. the combination of surface between manual scraping, machine to undergo a rigorous inspection, effectively ensure the machine tool accuracy and stability.2 Machine adopts high strength cast iron, copper and chromium special materials are added, the bed width 400mm, bed rail quenching depth up to 4mm, effectively improves the abradability and stability of the machine.3 The machine tool bed head box lubrication uses the pump to carry on the circulation forced lubrication, in view of the south hot weather, has guaranteed the bed head box cleanliness and the heat radiation characteristic, has effectively extended the bearing and gear's service life.4 Wafangdian Bearing is used in machine tool spindle, the spindle through hole diameter 80mm, machine tool gear with precision grinding, can effectively improve the hardness of the gears, to reduce noise of the machine.5 Machine tool uses the domestic brand lead screw, the silk mother uses the high quality bronze alloy to guarantee the wear-resisting property and the precision maintenance.6 The machine adopts high strength four station turret shank size: 25x25mm.Application:1 CA series ordinary horizontal lathe is used to turning internal and external cylindrical surface, conical surface, and other rotating surface, turning various metric and inch, modulus and pitch thread, and the pitch diameter of the thread and pull the drilling and oil tank etc., is general very strong horizontal lathe, Widely applicable batch processing of various shaft and disc parts.2 The series lathe bed width in general lathe, 400mm rail width has higher stiffness, rail surface by intermediate frequency quenching, wear-resistant durable.3 Handy machine operator concentration, slide plate is provided with a quick moving mechanism. Using single handle operation, humanization.4 The rigidity of the machine tool structure and the transmission stiffness are higher than the general lathe, the power utilization rate is high, which is suitable for the strong cutting.5 Before leaving the machine tool factory, the machine tool is tested strictly according to the inspection procedure, and the machine tool is tested to ensure that the machine tool has good stability and reliability. Product main technical parameters:| Specifications | CA6166 CA6166B CA6166C | CA6266 CA6266B CA6266C |
| Max. Swing over bed | 660mm |
| Max. Swing over carriage | 400mm |
| Max. swing in gap | -- | 880mm |
| Effective gap length | -- | 210mm |
| Max. length of work piece | 750mm/1000mm/1500mm/2000mm/2200mm/3000mm/4000mm |
| Width of bed | 400mm |
| Section of turning tool | 25x25mm |
| Spindle | Spindle speeds | 10-1400rpm/16-1400rpm(24steps) |
| Hole through spindle | 52mm. (B:80mm). [C:105mm] |
| Spindle taper | NO.6(MT6)(B:Φ90 1:20)[C:Φ113 1:20] |
| Feed | Number of feeds | 64(kinds)(for each) |
| Range of metric threads(kinds) | (1-192mm)44kinds |
| Range of inch threads(kinds) | (2-24tpi)21kinds |
| Range of module threads(kinds) | 0.25-48(Moduie39kinds) |
| Range of pitch threads(kinds) | 1-96DP(37kinds) |
| Tailstock | Max. tail stock spindle travel | 150mm |
| Tail stock spindle diameter | 75mm |
| Taper of tail stock spindle center hole | NO.5(MT5) |
| Main motor | 7.5KW(10HP) |
Packing dimensions (L*W*Hmm) | Overall dimensions for750mm | 2550x1140x1750 |
| Overall dimensions for1000mm | 2700x1140x1750 |
| Overall dimensions for1500mm | 3200x1140x1750 |
| Overall dimensions for2000mm | 3700x1140x1750 |
| Overall dimensions for2200mm | 4030x1140x1750 |
| Overall dimensions for3000mm | 4850x1140x1750 |
| Overall dimensions for4000mm | 5800x1140x1750 |
| Weight (kg) | Length | G.W N.W. |
| Weight for 750mm | 2380 2260 |
| Weight for 1000mm | 2570 2450 |
| Weight for 1500mm | 2810 2640 |
| Weight for 2000mm | 3050 2880 |
| Weight for 2200mm | 3390 3180 |
| Weight for 3000mm | 3930 3687 |
| Weight for 4000mm | 4580 4200 |

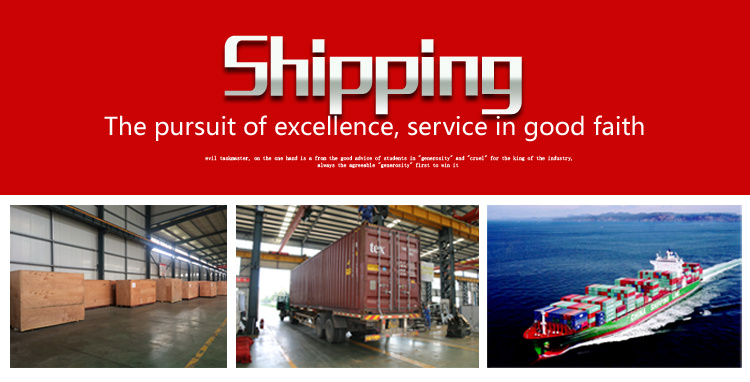

The Package of Universal Low Cost CA6166 CA6266 Gap Bed Lathe Machine is export standard plywood case with iron plate below ,very strong and durable .
The Universal Low Cost CA6166 CA6266 Gap Bed Lathe Machine will be shipped to customers by land freight or sea freight .
