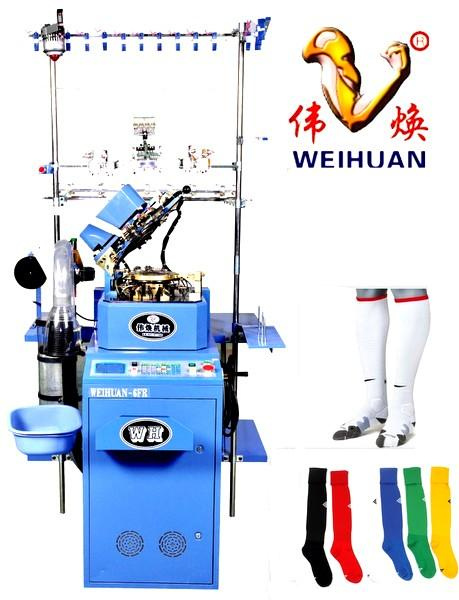

4.5 inch fully computerized professional football socks knitting machine (WH-6F-C)
Function introduction:
1. One feeder into yarn
2. Elastic shuttle can buy two, which can knit different colors
3. Each line can knit 6 colors, and there are 13 colors exchange in the socks pattern.
4. It can knit high heel, big heel, small heel, left and right foot, 180 degree against sock mouth, two colors for sock heads and sock heel.
5. It can knit three-dimensional socks
6. Battery bask-up to protect stored program
7. Internal UPS can supportcontinuous knitting
8. Adopting the double shovel-needle technology, when knitting the heel and toe, the angle is adjusted by computer, which increases the production efficiency greatly and overcome the shortcomings of sigle shovel-needle.
9. Maximum horizontal stroke pulls is 45cm
| Model ID | WH-6F-C |
| Cylinder Diameter | 4.5 inch |
| Needle range | 84-240N |
| Running speed | 230rpm |
| Power required |
|
| Drive motor | 0.85KW |
| Fan motor | 0.75KW |
| Control Box | 0.80KW |
| Floor space in cm (W*L*H) | 150*120*240 |
| Net weight | 350kg |
| Gross weight | 400kg |
| Packing demension | 100*70*157 |
Zhejiang Weihuan Machinery Co., Ltd, which is located in West Industrial Zone, which is near to the "international socks hometown", DaTang town. It is a
Modern enterprise profiessioal in research and development, the assembly, the service one continuous line of manufacture sock machines.
The company, established in 1999, is one of the earliest manfacturers of sock knitting machines. Our company has strong technical force in researching, developing and manufacturing sock machines, accumulated
Rich experience and possessed a Number of machng and testing devices. The companyhas taken the lead in the successful development of WH-600FR domestic production of international standard WH-600FR computerized plane and terry combination, which has come up to international standard. Operating under the scientific management, depending the excellent mechanical performance of our products, and being accepted by our customers, our products have become the most stable type in the conterparts, have been completely able to replace the similae importedproducts. We have good market share in domestic market and also ecported to the Middle East and Southeast Asia and other countries.
The company has been insisting on the principles of " Quality first, Service supreme". We warmly welcome customers at home and abroad to our company for guide and business talk. We sincerely hope to offer the high quality products and good services to our friends from all other the world.
