YTD-Baby Bottles Screen Printing Machine With LED UV
Products Application:
Flat Screen Printing Machine, Pad Printing Machines, Semi-automatic Screen Printing Machine, Small Screen Printing Machine, Cylindrical Silke Screen Printing Machine,Table Sliding Screen Printing Machine and Turntable Screen Printing Machine
1. Desktop screen printing machine
| Application | All kinds of small flat screen printing products, such as CD, member card ,mouse pad, little package, small electronic products, electronic component ,name plate, silica gel products,thin-film switch and so on. |
| Specification: |
| Model | YTD-2030 |
| Plate Size | 220*400mm |
| Max Print Size | 300*200mm |
| Max Frame Size | 300*500mm |
| Dimension | 550*600*900mm |
| Net Weight | 90kg |
| Print Color | Single/multicolor |
| Alignment Accuracy | 0.002-0.005mm |
| Print Type | Flat surface |
| Print Speed | 1000pcs/hr |
| Applications | Flat materials |
| Air Pressure Requirement | 5/6 Bar |
| Stock Thickness | 0-100mm |
| Power | 220V |
2. Motor-driven sliding screen printing machine
| Application | This kind of silk screen printing machine is widely used in PCB,PET,PC,
IC,LCD,EL,LMD,IMD,IML,silica gel,textile,plastic buttons,silicakeypad, toy, film, paperboard, name plate, trademark,membrane switch,glass, lens, hardware product,ceramic gift box, display board,scutcheon and other plane and soft material. |
| Specifications: |
| Model | YTD-4060S | YTD-5070S |
| Plate size | 400*600mm | 500*700m |
| Max print size | 500*350mm | 600*450mm |
| Max frame size | 700*500mm | 800*600mm |
| Dimension | 1150*900*1700mm | 1200*1000*1700mm |
| Net weight | 300kg | 350kg |
| Print color | Single /multicolor |
| Alignment accuracy | 0.002-0.005mm |
| Print type | Flat surface |
| Print speed | 800-1200pcs/hr |
| Applications | Flat materials |
| Air pressure requirement | 4-6 Bar |
| Stock thickness | 0-100mm |
| Power | 220V |
3. Turntables screen printing machine
| Introduction | This is a high-precision turntable screen printing machine, machine uses Taiwan mechanical cam split build high-speed rotary rotates at high speed balancing stability,vibration. While desirable in the printing work pieces ,improve production efficiency ,the fastest speeds of up 2200 cycles/hour, is your model of choice for high-volume printing. |
| Specifications |
| Operation mode selection | Automation /Semi/ Manual |
| Vertical drive | Pneumatic |
| Around drive | Electric |
| Maximum printing area | 200*300mm |
| Longitudinal travel | 400mm |
| Down stroke | 100mm |
| Disc size | 600mm |
| Maximum work piece height | 50mm |
| Dimension | 1200*1000*1500mm |
| Net weight | 320kg |
| Station rotary table | 2-position, 4-position,8-station arbitrary choice |

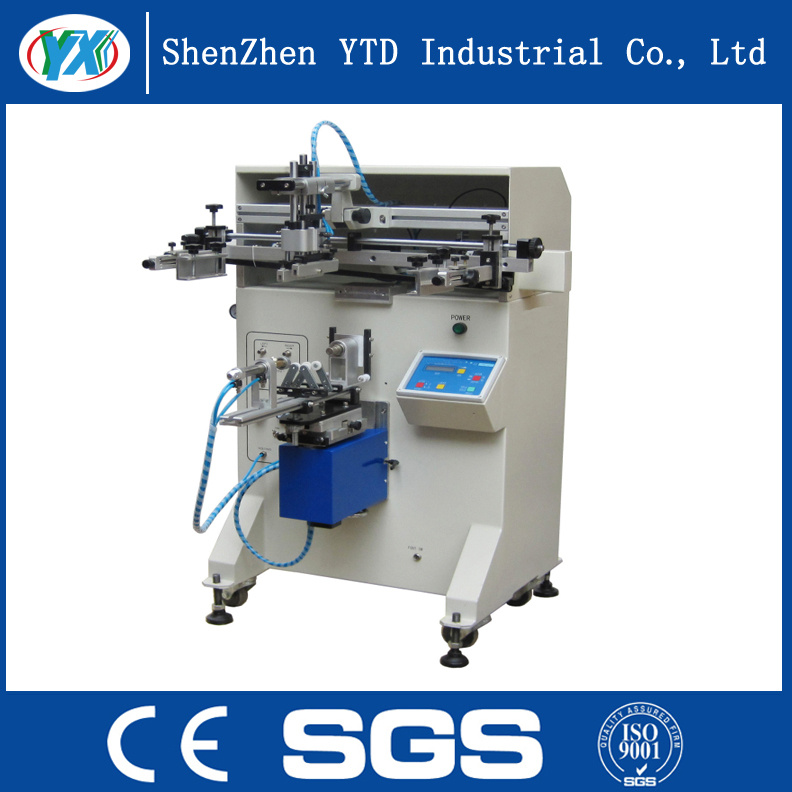

4. Cylindrical silk screen printing machine
| Applications | This machine is specially designed to print on the cylindrical, cone and oval abject, such as plastic buckets, bottle, glass, caps etc.
The material could be plastic ,steel, ceramics and glass etc. |
| Specification: |
| Model | YTD-300R | YTD-400R |
| Max print size | 70*250mm | 110*250mm |
| Max print speed | 1200pcs/hr | 1500pcs/hr |
| Air pressure | 5Bar | 5Bar |
| Power | 220V 50Hz 60W | 220V 50Hz 60W |
| Net weight | 100kg | 150kg |
| Dimension | 730*580*1280mm | 830*580*1280mm |
5. Pad printing machine
| Application | This is high-precision turntable screen printing machine,machine uses Taiwan mechanical cam splitter build high-speed rotary table rotates at high speed balancing stability,vibration.While desirable in the printing work pieces, improve production efficiency, the fastest speeds of up to 2200 cycles/hour, is your model of choice for high-volume printing. |
| Specifications: |
| Model | YTD-X1 | YTD-P2S |
| Plate size | 100*100mm | 100*100mm |
| Max print size | 2300pcs/hr | 1600pcs/hr |
| Air pressure | 4-6 Bar | 4-6 Bar |
| Power | 220V 50Hz 50W | 220V 50Hz 50W |
| Net weight | 98kg | 108kg |
| Dimension | 790*420*1350mm | 790*420*1350mm |
Packaging:
Wood case, customized packaging
Lead Time:
1. Lead time: Usually 20 to 30 days, varies to different machines.
2. Urgent delivery, please inform us in advance.
After-Sales Service
1. Free technical support, machine installment, machine operation and trouble shooting method.
2. Control system upgrade, motherboard upgrade, and related functions upgrade.
3. Supply free spare parts during warranty period.
4. One year warranty, except for artificial damage and wear parts.
5. 24 hours telephone technical support.
