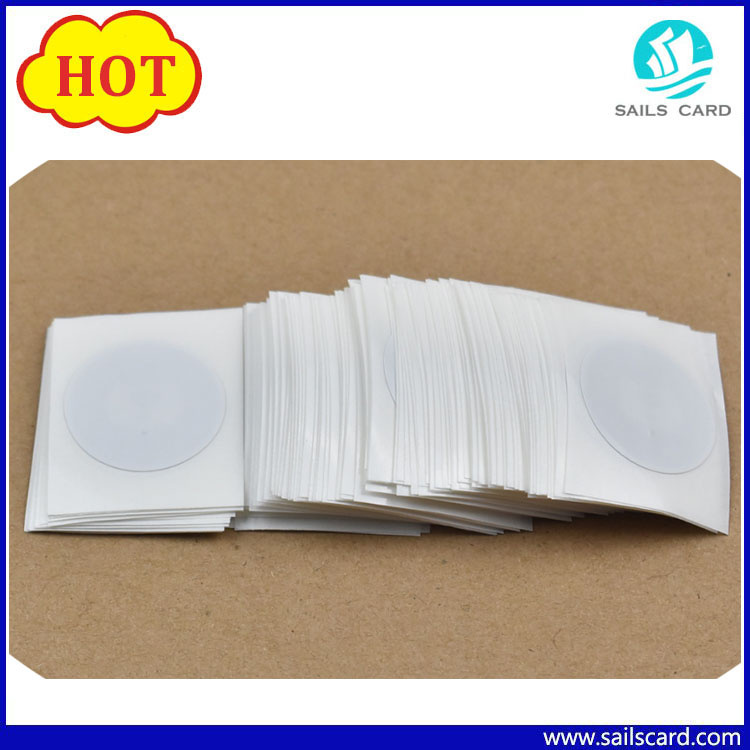

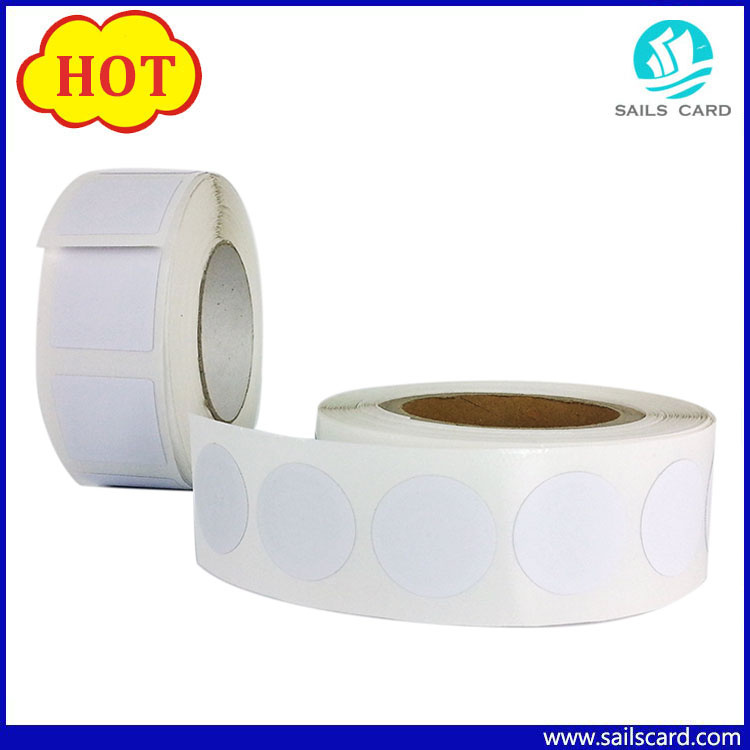

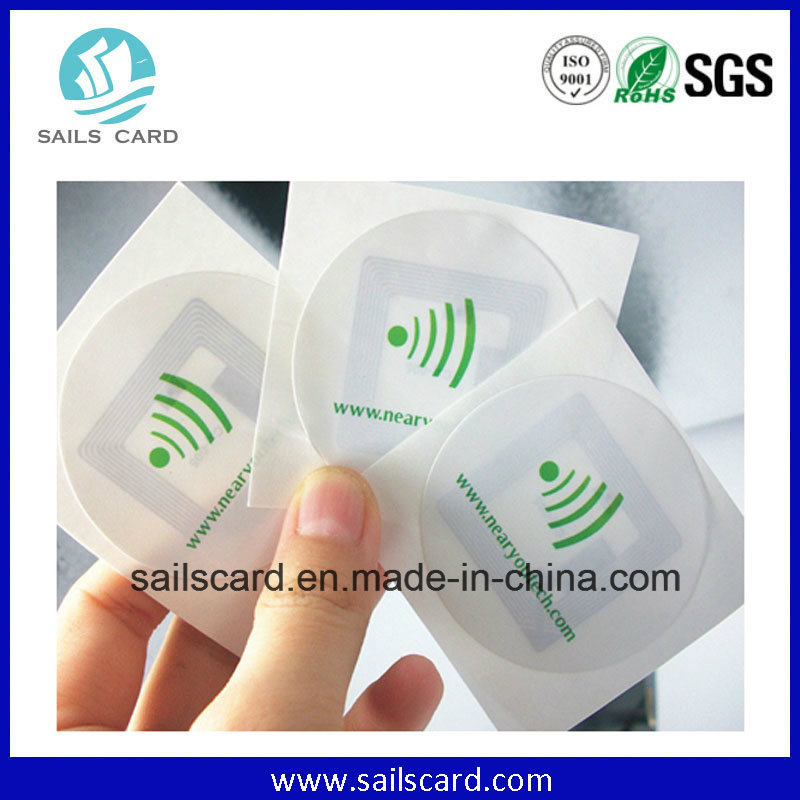

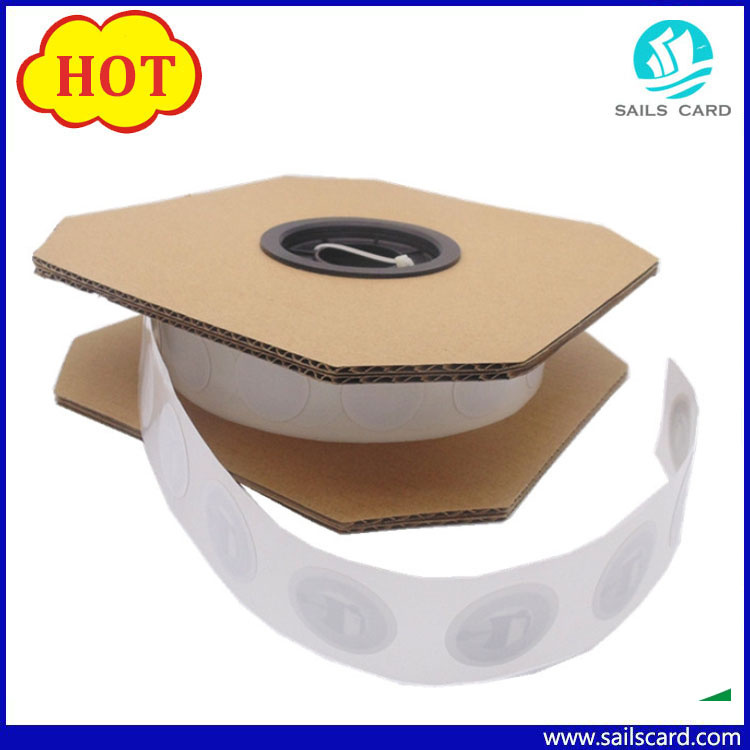

E-Payment Ntag213, Ntag215, Ntag216 NFC RFID Sticker

Prod Model:	Ntag 213, Ntag215, Ntag216
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Logic Encryption Card
Structure:	Read-Write Card
Read-Write Method:	Non-Contact Type
Mode:	Passive
Function:	Payment, Encrypt/Decrypt, Information
Data Transmission Mode:	Parallel
Material Of Sticker:	Pet,Paper
NFC Reading Range:	2-8cm
Advantage:	Large Capacity & Low Price

Product Description

                 E-payment Ntag 213/ NFC RFID tag specifications

NTAG213,Ntag215,Ntag216, NTAG215 and NTAG216 have been developed by NXP Semiconductors as standard NFC tag ICs to be used in mass market applications such as retail, gaming and consumer electronics, in combination with NFC devices or NFC compliant Proximity Coupling Devices. NTAG213, NTAG215 and NTAG216 (from now on, generally called NTAG21x) are designed to fully comply to NFC Forum Type 2 Tag and ISO/IEC14443 Type A specifications.

Target use cases include Out-of-Home smart advertisement, product authentication, mobile companion tags, Bluetooth or Wi-Fi pairing, electronic shelf labels and business cards. NTAG21x memory can also be segmented to implement multiple applications at the same time.

Security
Manufacturer programmed 7-byte UID for each device
Pre-programmed Capability container with one time programmable bits
Field programmable read-only locking function
ECC based originality signature
32-bit password protection to prevent unauthorized memory operations
Features and benefits
Contactless transmission of data and supply energy
Operating frequency of 13.56 MHz
Data transfer of 106 kbit/s
Data integrity of 16-bit CRC, parity, bit coding, bit counting
Operating distance up to 100 mm (depending on various parameters as e.g. field strength and antenna geometry)
7-byte serial number (cascade level 2 according to ISO/IEC 14443-3)
UID ASCII mirror for automatic serialization of NDEF messages
Automatic NFC counter triggered at read command
NFC counter ASCII mirror for automatic adding the NFC counter value to the NDEF message
ECC based originality signature
Fast read command
True anticollision
50 pF input capacitance
EEPROM
180, 540 or 924 bytes organized in 45, 135 or 231 pages with 4 bytes per page
144, 504 or 888 bytes freely available user Read/Write area (36, 126 or 222 pages)
4 bytes initialized capability container with one time programmable access bits
Field programmable read-only locking function per page for the first 16 pages
Field programmable read-only locking function above the first 16 pages per double page for NTAG213 or per 16 pages for NTAG215 and NTAG216
Configurable password protection with optional limit of unsuccessful attempts
Anti-tearing support for capability container (CC) and lock bits
ECC supported originality check
Data retention time of 10 years
Write endurance 100,000 cycles
Applications
Smart advertisement
Goods and device authentication
Call request
SMS
Call to action
Voucher and coupons
Bluetooth or Wi-Fi pairing
Connection handover
Product authentication
Mobile companion tags
Electronic shelf labels
Business cards

Other RFID Chip Options

Frequency	chip type	Memory	RF Standard
125KHz	EM4100,EM4102	64 bit R/O	ISO 18000-2
	EM4200	64 bit R/O	ISO 18000-2
	EM4205,EM4305	512 bit R/W	ISO 11784/11785
	EM4450,EM4550	1K bit R/W	ISO 18000-2
	T5577	330 bit R/W	ISO 18000-2
	Hitag 1	2K bit R/W	ISO 18000-2
	Hitag 2	256 bit R/W	ISO 11784/11785
	Hitag S2048	2K bit R/W	ISO 11784/11785
13.56MHz	MF Classic 1k S50	1K Byte R/W	ISO 14443A
	MF Classic 4k S70	4K Byte R/W	ISO 14443A
	MF Ultralight	512 bit R/W	ISO 14443A
	MF Ultralight  C	192 bit R/W	ISO 14443A
	MFUltralight  EV1	384/1024 bit R/W	ISO 14443A
	MF  DESFire EV1 2K	2K Byte R/W	ISO 14443A
	MF  DESFire EV1 4K	4K Byte R/W	ISO 14443A
	MF  DESFire EV1 8K	8K Byte R/W	ISO 14443A
	MF  DESFire  4K D40	4K/8K Byte R/W	ISO 14443A
	MF  Plus 2k	2K Byte	ISO 14443A
	MF  Plus 4k	4K Byte	ISO 14443A
	I CODE SLI	1K bit R/W	ISO 15693, ISO18000
	NTAG203/203F	144 Byte R/W	ISO 14443A
	NTAG210	48 Byte R/W	ISO 14443A
	NTAG212	128 Byte R/W	ISO 14443A
	NTAG213/213F	144 Byte R/W	ISO 14443A
	NTAG215	504 Byte R/W	ISO 14443A
	NTAG216	888 Byte R/W	ISO 14443A
	NTAG213F/216F	144/888 byte	ISO 14443A
	FM11RF08	1K byte	ISO 14443A
	FM11RF32	4K byte	ISO 14443A
	Topaz512(BCM20203)	512 byte	ISO 14443A
	Felica Lite-S(RC-S966)	14 blocks+1 subtraction block(1 block= 16 byte)	ISO/IEC 18092
	Legic MIM 256	256/1K Byte R/W	Legic RF Standard
	TI2048	2K bit R/W	ISO 15693, ISO18000
	Picopass 2k	2K/32K bit R/W	ISO 14443B, ISO 15693
UHF/2.45GHz	UCODE HSL	2K bit R/W	ISO 18000
860~960MHz	UCODE EPC G2	512 bit R/W	EPC class1,G2
	Monza 5	128 bit R/W	EPC class1,G2,ISO 18000-6C
	Monza 4D/4E/4QT	128 bit R/W	EPC class1,G2,ISO 18000-6C
