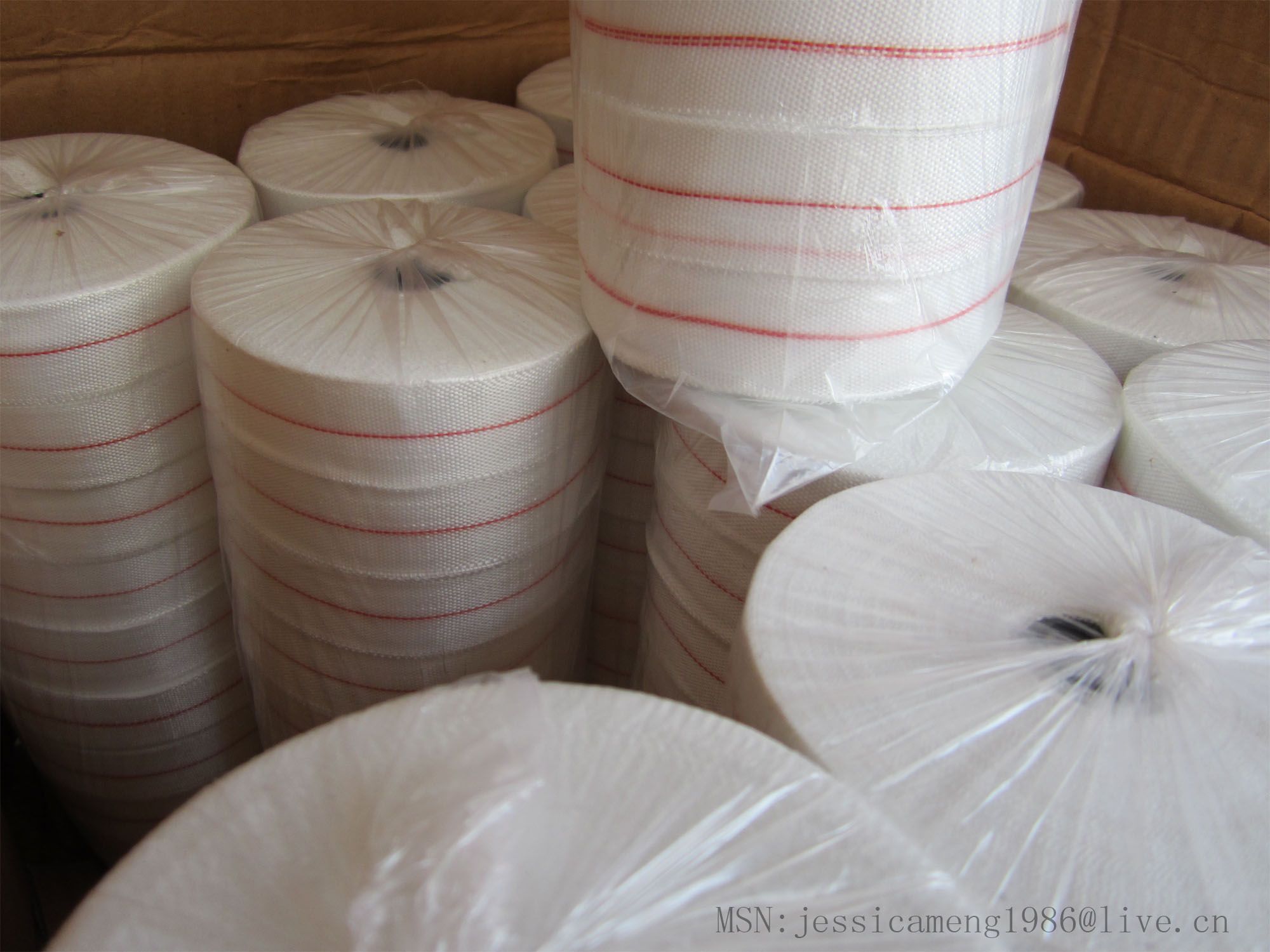

High Quality Non-Alkali Fiberglass Insulation Tape

Name: High Quality Non-Alkali Fiberglass Insulation Tape
Brand: FullPackage
SKU: 667046232
Availability: InStock
Rating: 4.4 (75 reviews)

Price:	US $ 1/Roll
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Roll
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	0.1X20MM 25MM 30MM 50mm
Markets:	North America,Southeast Asia,Africa,Oceania
Thickness:	0.1mm--0.20mm
Width:	20mm-50mm
Storage Life:	One Year
Heat- Resistance:	250
Application:	Switch Baseplate
Type:	Insulation Tape
Chemistry:	Organic Insulation
Material:	Fiberglass
Thermal Rating:	250 250
Maximum Voltage:	<10KV
Brand:	Chr

Product Description

Fiberglass tape is weaved by no-alkali fiberglass yarn, with good thermal resistant and insulation features. It is widely used for windings of motor, electric cooker, air core reactor and dry transformer.

Main Properties:
Thickness: 0.13mm~0.25mm
Width: 10mm~150mm
Rated temperature: 180 ºC;
Standard Color: White( can add red or blue line in the middle)
Length: Normal package 30 or 50 meters per roll, any special package is feasible.

Usages:
It is used for binding, intern ,widing of electrical motor. It can be also used as wrapping and banding material for transformers,electric motors and cables.
Features:
1, good flame-retardant property.
2, good thermal resistance,
3,excellent insulating,
4,corrosion resistance.

SIZE: 0.12MM 0.15MM 0.17MM 0.20MM 0.25MM
WIDTH:20MM 25MM 30MM

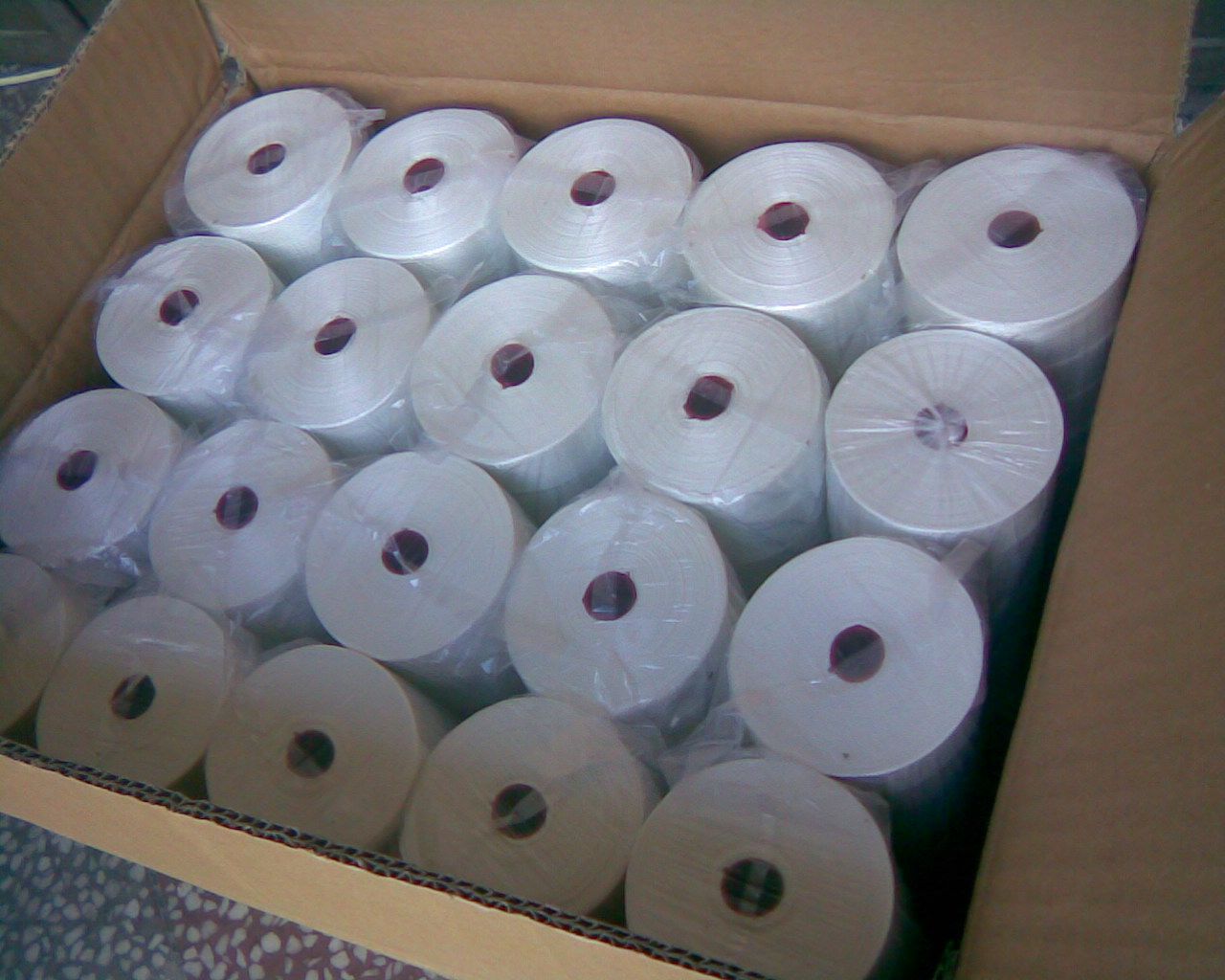

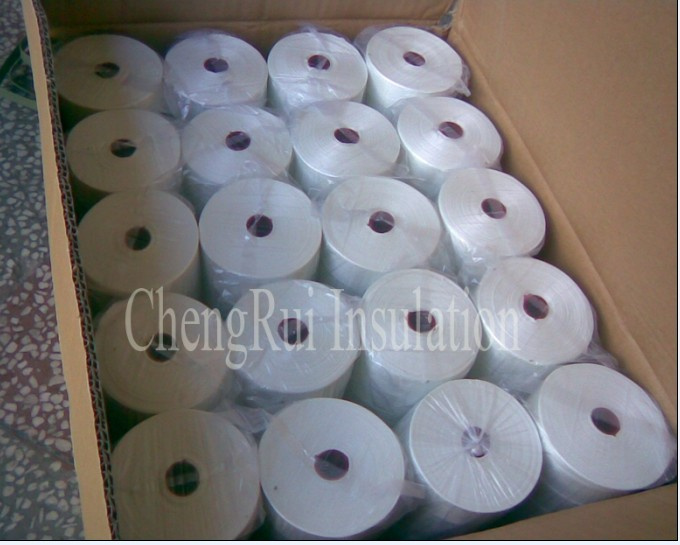

PACKAGE:CARTON
Standard:JC/T174-2004

(Properties)

Test content		Unit	Standard
Appearance			Smooth and white, not any impurity
Standard roll length		M	50 meters per roll and each roll allow one junction.
Tolerance	thickness	mm	± 0.01
	width	mm	± 2
	length	m	± 6
Soluble resin content		%	≥ 90
Tensile strength		N/cm	above: 196
Elongation at break		%	7
Breakdown voltage min.		KV	1.5
Standard color			white

Welcome Xuchang ChengRui Electrical Insulation Material Co., Ltd

If any question, pls contact our sales

Our main products are as follows:

Film Products: 6020/6021 Polyester film, 6051 polymide film

Flexible composite insulation paper: 6630 DMD insulation paper, 6641-F DMD, 6640NMN, 6650NHN, 6520/6521 insulation paper

Insulation binding tape: Alkali-free fiberglass tape, 2840 epoxy resin impregating binding tape, mica tape, cotton tape, shirinkable binding tape,

Insulation Sleeving: 2715 PVC fiberglass sleeving, 2751 silicone fiberglass sleeving, 2753silicone resin fiberglass sleeving, 2740 acrylic fiberglass sleeving.

Impregnating fiber products: 2432alkyd Fiberglass varnish cloth tape, 2310 oil varnish cloth, 2450, 2210

Electrical insulation paper: Insulation paperboard, Diamond Dotted paper, presspaper, crepe paper, cable paper

Laminated sheets: 3021 phenolic paper sheet, 3025phenolic cotton cloth sheet, 3240epoxy fiberglass sheet, 3841 epoxy rod, 3722-1 cloth bar

The products are widely used for slot insulation, interturn insulation, layer insulation and liner insulation of the large and small motor. Some are for binding insulation of transformer, impregnating material, electrical wire and other electrical insulation.
