| Prod Model: |
E-LTM900 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Total Area Weight: |
900GSM |
| Weight In 0 Degree: |
300GSM |
| Weight In 90 Degree: |
300GSM |
| Weight Of Chopped Strand: |
300GSM |
| Width: |
1270mm |
| Loading Quantity In 20FCL: |
15000kg |
| Glass Type: |
E Glass |
| Function: |
Fireproof |
| Certification: |
ISO |
| Type: |
Fiberglass Fabric |
Product Description
Fiberglass biaxial Combo Mat for Pultrusion Profile has allowed for faster fabrication of parts with better physical and mechanical properties. Parts made from these reinforcements have led to cost effective solutions for a variety of applications including marine, transportation, infrastructure, sports and recreation and aerospace.
It is no any binder, no intersections of weft and warp, no crimp, so characterized by its optimal mechanical performance.
The specification is 600gsm roving in 0/90 degree direction, 300gsm mat.Properties: Fiberglass no certain direction,good homogeneity.
No powder or emulsion,sink quickly and easy to operate.
High tensile strength,easy to operate.
Good impact strength of finished products.
Packing & Storage: Each roll covering by polyethylene plastic bag,then placed into carton,and set on pallet.
Each pallet stack 9 or 16 cartons.The pallet shall no be higher than 2 layers and the cardboard box shall no be higher than 2 layers.
Product shall be placed under dryness condition and shall no be open the covering membrane until applying.
Technical Data: | Item | 0°
g/m2 | 90°
g/m2 | Mat
g/m2 | Total
g/m2 |
| E-LT600 | 300 | 300 |
| 600 |
| E-LT800 | 400 | 400 |
| 800 |
| E-LTM900 | 300 | 300 | 300 | 900 |
| E-LTM1050 | 300 | 300 | 450 | 1050 |
| E-LTM1250 | 400 | 400 | 450 | 1250 |
| E-LR1000 | 700 |
| 300 | 1000 |
| E-TR900 |
| 600 | 300 | 900 |

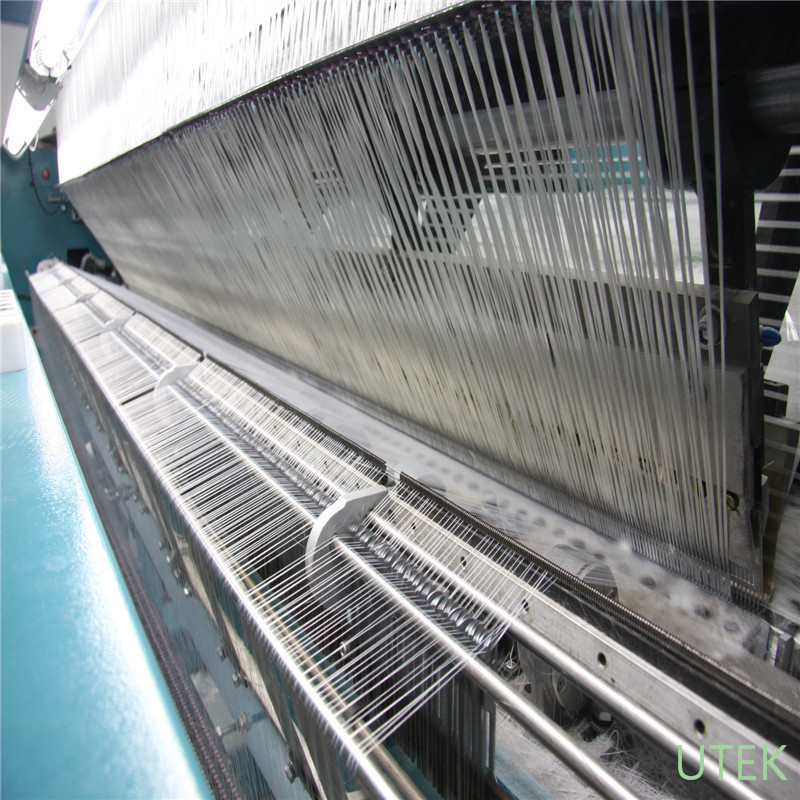

Production Stie:

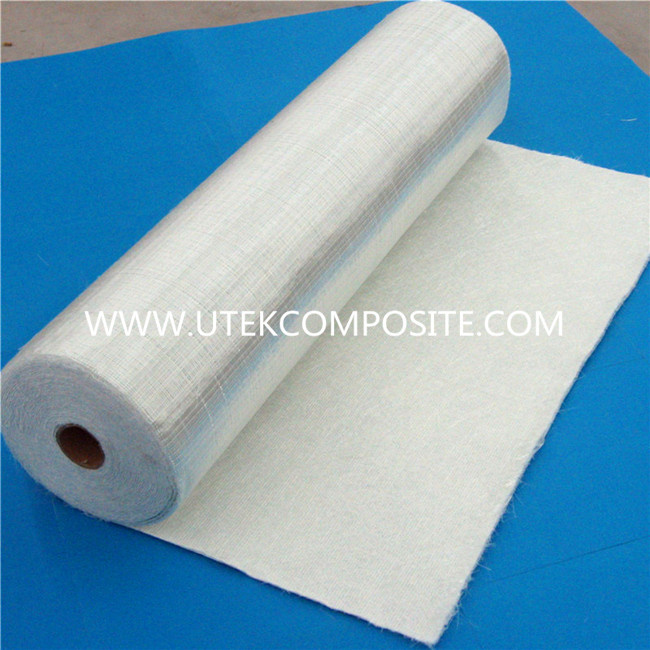

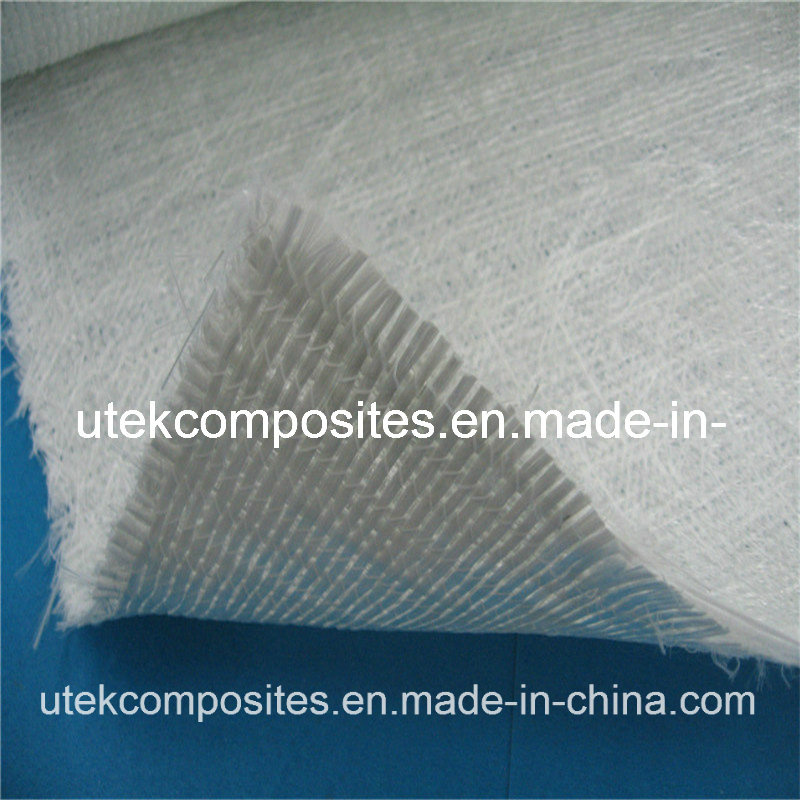

Picture of Product:

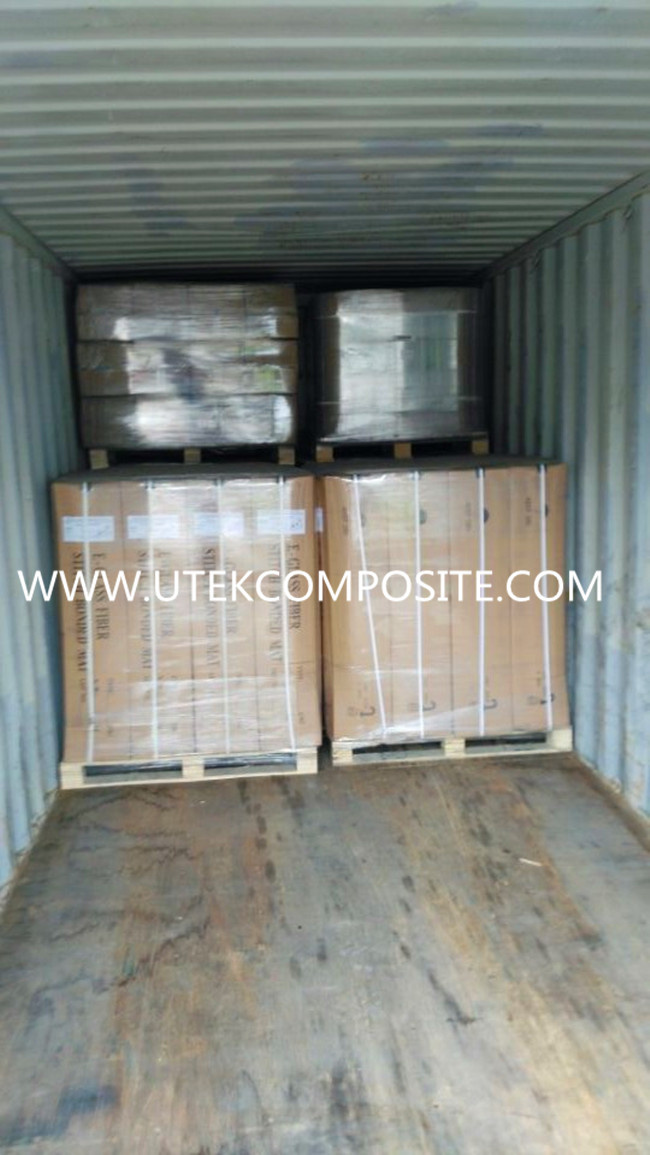

Packing:
| CHANGZHOU UTEK COMPOSITE COMPANY CO.,LTD |
|
| COMPANY INTRODUCTION: |
| Company Name | CHANGZHOU UTEK COMPOSITE CO.,LTD |
| Address | Fuhanyuan 1-814,Taihu Road,Changzhou,Jiangsu,China |
| Contact Person | Name | Tel |
|
| Manger | Gong Xiaojun | 0086 13357899376 |
|
| Manger | Irene Xi | 0086 13961156380 |
|
| Business Condition | Manufacture | Trading |
| Consititution of company | Pvt.Ltd |
| Annual turnover | USD10,000,000 |
| Company Occupy Areas(M2) | 3000M2 |
| Shower room Occupy Areas(M2) | 200M2 |
| website | www.utekcomposite.com |
| http://utekcomposites.en.made-in-china.com/ |
| Mainly Customer & Marketing | Europe,Asia,America,Middle East |
| Mainly Product | Fiberglass chopped strand mat (powder and emulsion), stitch mat, combo mat, uni-direction and biaxial fabric, RTM core mat, woven roving, special products like Ar-glass roving, chopped strand, thin fiberglass fabric, SMC(sheet molding compound), fiberglass/polyester geogrid and geocomposite. fiberglass mica fabric for insulation. |
|
|
|
| Sales Team | 15(University Graduates) | Product Team | 150 |
| Research & Development Team | 12 | QC Team | 8 |
| Certificate | ISO 9001 ,ISO 14001 ,SGS |
Give us a chance, and we' ll return you with satisfaction.
Changzhou Utek Composite Co. Is committed to provide tailor-made service to customers with various requirements. We pay attention to needs of customers who adopt different production technologies like hand lay up, pultrusion, winding, close molding… Changzhou Utek is customer-oriented, from sales to production, in each step.
With many years of experiences in composite industry, we utilize our good working knowledge to develop, manufacture and distribute materials for:
Composite Reinforcement
1. Fiberglass cloth for surfboard: Standard and warp enhanced, have a lot of export to Australia, Indonesia, Brazil, Argentina…
2. Sandwich mat with PP core for RTM process: Exported to Russia, Malaysia, Spain, used to make big size road plate, cooling tower…
3. Fiberglass chopped strand mat: Big roll and wide width available, good quality of light weight mat for auto headliner such as 100g, 120g, 150g
4. Other reinforcement material such as stitch mat, combo mat, uni-direction and biaxial fabric, woven roving, Ar-glass roving, chopped strand
Chemicals:
1. SMC/BMC: Experienced in SMC for water tank, electric meter box, manhole cover. Have a lot of export to Saudi Arabia, South Africa, Malaysia
2. UP resin: Exported to Thailand, Chile, Nigeria
GRC: Ar-glass spray up roving, Ar-glass chopped strand, exported to Saudi Arabia, Egypt, Indonesia…
Geosynthetics: Fiberglass/polyester geogrid, paving grid, drainage geonet for landfill
We' Re one step source for composite reinforcements. Give us a chance, and we' Ll return you with satisfaction.
