| Prod Model: |
HB-016 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Denier: |
500d, 1000d, 2000d |
| Yarn Count: |
18s, 20s, 23s, etc |
| Thickness: |
0.35mm-0.90mm |
| Technics: |
Woven |
| Width: |
58/59' |
| Style: |
Coated |
| Function: |
Waterproof, Flame Retardant, Tear-Resistant |
| Knitting Technics: |
Warp |
| Application: |
Truck Cover, Industrial Cover, Boat Cover, etc |
Product Description

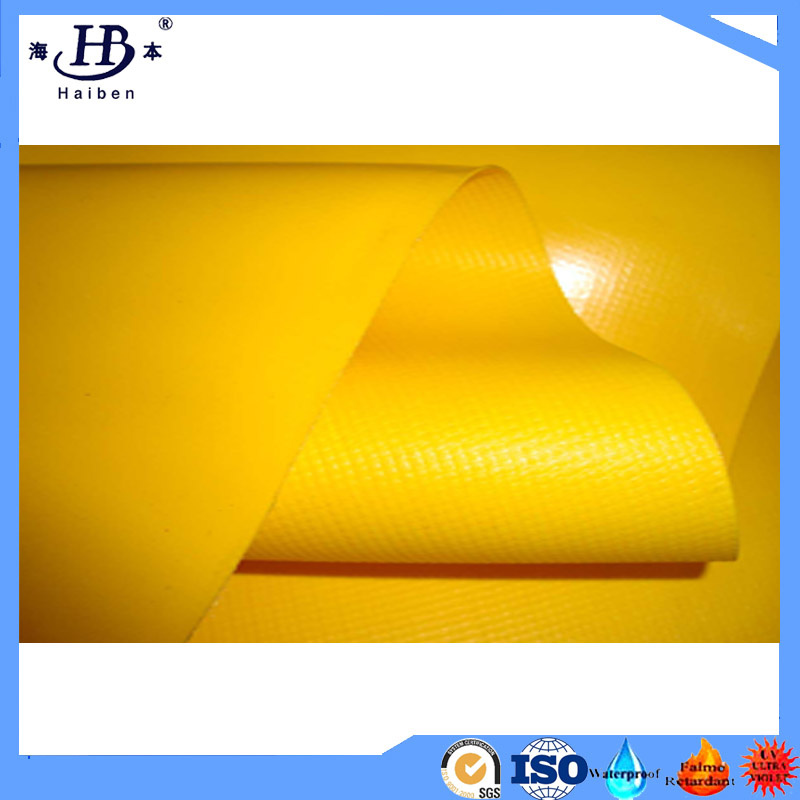

Waterproof PVC Coated Polyester FabricPVC Fabric
The material comprises a stable woven polyester fabric coated on both sides with PVC. Weave density and material, combined with the quantity of PVC, determine the quality and strength of the finished tarpaulin.
Hai Ben PVC Coated Tarpaulin is produced by digital control coating machine which composited PVC paste on polyester fiber substrate by roller coating, then it is heated by temperature regulating device and pressed on the tarpaulin accurately, cooling to be finished product afterward.
Features:
1. Excellent waterproof performance, anti-permeable ≥ 20KPa.
2. Obvious mildew proofing and inflame-retarding properties, flame retardant ≤ 10 seconds.
3. Anticorrosion including: Acid, alkali and brine corrosion, and etc.
4. Heat resistance, and be able to adapt to variety of open-air natural conditions.
5. Good low-temperature flexibility, this fabric will not be fractured by pliers at -30° C.
6. Almost nonabsorbable of water, drying quickly after the rain without adding weight, convenient in usage.
7. Heat combined with high-frequency, which guaranteed this fabric water tight and will not crack.
8. High strength of tensile.
We are renowned manufacturer and supplier of PVC Tarpaulins to our dedicated clients. These PVC coated tarpaulins are widely used as a body cover of the trucks to protect the consignment from harsh weather conditions. These PVC coated tarpaulin are available in various colors and are manufactured using quality synthetic materials. These high quality synthetic materials increase durability and weather resistant features if the products.
| Denier | Yarn Count
(S/inch) | Total Weight
(G/sqm) | Tear Strength
(N/5cm) | Tensile Strength
(N/5cm) | Temperature Scope |
| 500D*500D | 18*18 | 480±10 | 350/180 | 1500/1300 | -20~70 |
| 500D*500D | 18*22 | 620±10 | 350/180 | 1800/1300 | -20~70 |
| 840D*840D | 18*18 | 550±10 | 500/180 | 2200/1800 | -20~70 |
| 840D*840D | 18*18 | 680±10 | 500/260 | 2200/1900 | -20~70 |
| 1000D*1000D | 18*18 | 600±10 | 500/290 | 2800/2450 | -20~70 |
| 1000D*1000D | 20*20 | 680±10 | 500/300 | 2700/2300 | -20~70 |

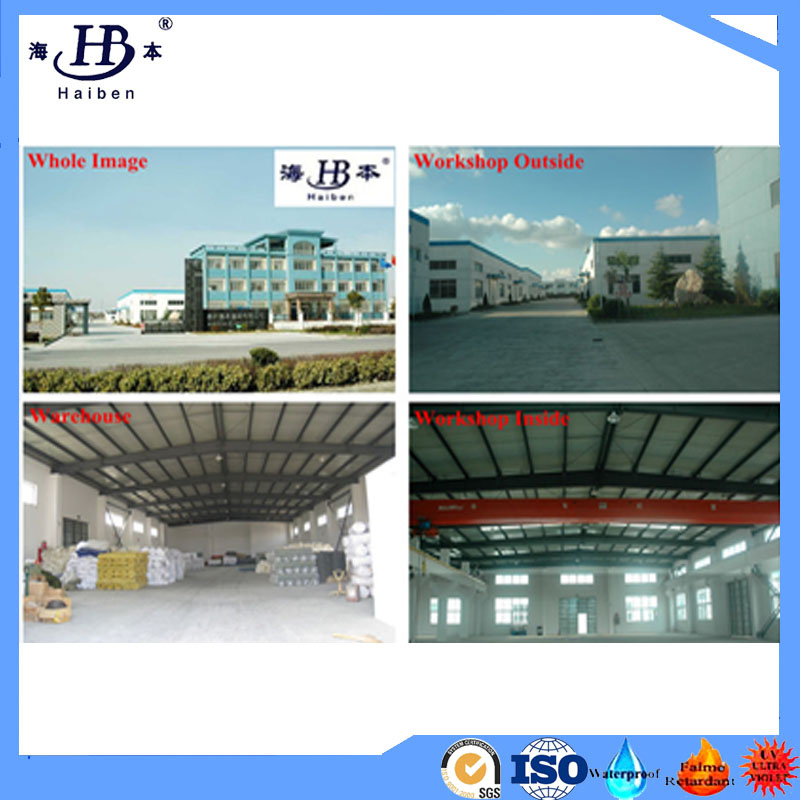

Taizhou Haiben Awning Co., Ltd. is a Japanese sole corporation with the professional production on PVC tarpaulin fabric and finished tarpaulin sheets, Polyester organic silicone canvas, Polyester Canvas tarpaulin, Aluminum Foil Fiberglass Cloth and Tape etc.
The total investment of our company is $2, 500, 000, the registered assets are $1, 800, 000. Our company covers 21, 000 square meters. The workshops cover 11, 000 square meters.
Main products as below:
PVC Coated Tarpaulin fabric and finished sheets,
Fiberglass Flame Retardant Cloth PVC coating,
Aluminum Foil fiberglass cloth and adhesive tape,
Polyester Silicone Canvas,
Wax Coated Canvas,
PVC Ventilation Ducts
Vermiculite coated fiberglass cloth for welding in shipyard etc...
Our PVC coated fabric can be made tarpaulin sheets, we mainly make size 10m*5m, 10m*10m, 16*10m, 20*20m, 30*20m, 50*16m, 50*20m, 50*25m (this is the biggest one)...For finished tarpaulin sheets and covers like industrial protection covers, marine equipment covers, mineral covers etc.

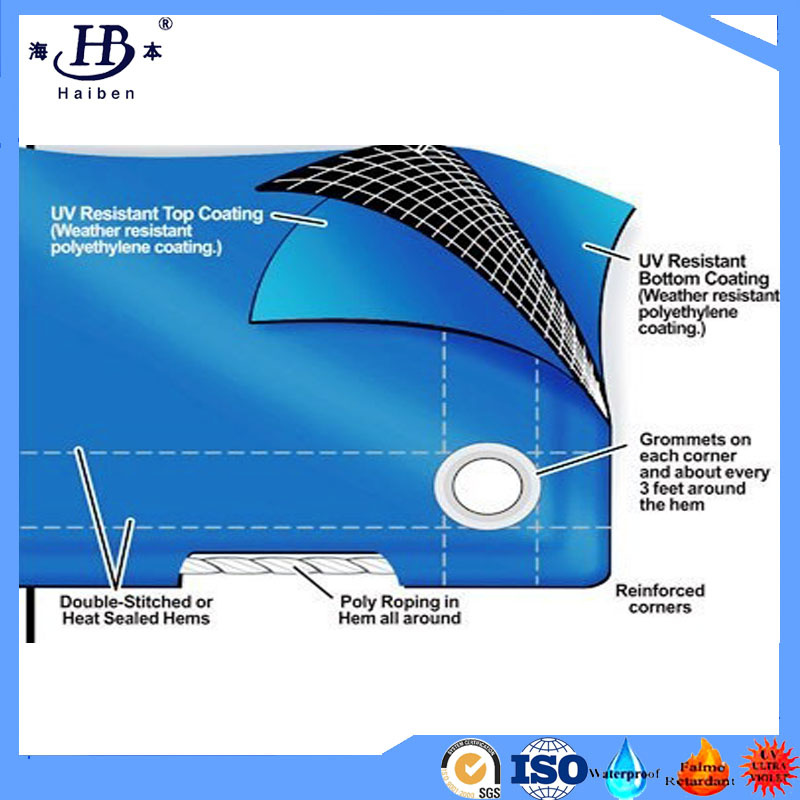

Sheets with metal eyelets in every 1 mtr interval and all around the edges.
Two sides hot welded and two sides double stitched.
Reinforced by nylon or PP rope in hem.
With high technology, advanced producing equipments and automatic assembly lines, Our products are widely applied in the fields of wind power, coal mine, oil field, railway, shipyard and paper making industry, and were sold well all over the world such as Asia, the Middle East, Europe, Africa, North and South America.
We are dedicated to providing the goods on in-time delivery, high quality and best sales service and meeting the requirements conforming to any client. We honestly welcome friends from all over the world to do long-term business with us.
