20ton Per 24 Hours Wheat Flour Mill Wheat Flour Grinder

Name: 20ton Per 24 Hours Wheat Flour Mill Wheat Flour Grinder
Brand: FullPackage
SKU: 838561265
Availability: InStock
Rating: 4.4 (115 reviews)

Price:	US $ 138000-160000/Set
Min Order:	1/Set
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	20ton per 24 hours wheat flour mill
Product Name:	20ton Per 24 Hours Wheat Flour Mill Wheat Flour Gr
Raw Material:	Wheat
Final Products:	Super Fine Wheat Flour
Color:	Custome's Damand
Capacity:	20ton Per 24 Hours
Control System:	PLC for Flour Mill
Pipes:	Stainless Steel Pipes
After-Sale Service:	Engineers Available to Service Machinery Overseas
Processing Type:	Grain Processing Equipment
Warranty:	One Year Guarantee
Type:	Flour Mill
Application:	Wheat
Voltage:	380V
Appearance:	Horizontal
Press Series:	Fifth
Condition:	New
Customized:	Customized
Press Materials:	Wheat

Product Description

20ton per 24 hours wheat flour mill wheat flour grinder

Wheat structure and final product

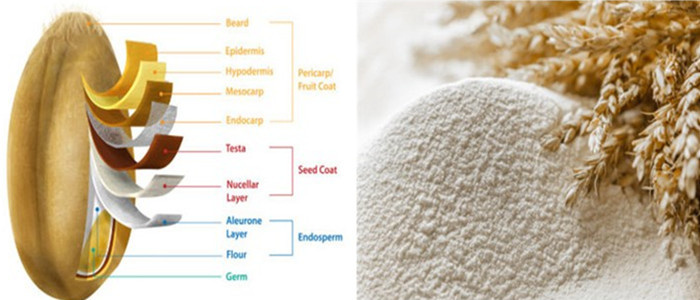

The shape of wheat grain is similar to oval or oblong. There is a family of hairs at the top, often called wheat hair; wheat germ is at the bottom, and the length of the embryo is about 1/4 to 1/3. The side with the embryo is called the back of the grain, and the opposite side is called the ventral surface. The ventral depression has a groove called an abdominal groove. Wheat grains consist of three parts: cortex, endosperm, and embryo. The wheat cortex, also known as wheat husk, weighs approximately 14.5% to 18.5% of whole wheat.
According to their organizational structure is divided into six layers: from outside to inside in order for the wheat skin, exocarp, endocarp, seed coat, bead heart layer, aleurone layer. The outer five layers are collectively referred to as the outer skin layer. Because they contain more crude fibers and have a rough texture, the human body is difficult to digest and absorb, and it should be avoided to grind into flour. The innermost layer of wheat is the aleurone layer, also known as the outer endosperm or the endothelial layer.
The parameters for 20ton per 24 hours wheat flour mill wheat flour grinder

1. Total length of the roller: 2100mm

2. Capacity(wheat/h): 24T/24H

3. Flour extraction: to produce standard flour:75-82%

to produce grade 2 flour:70-75%

to produce grade 1 flour: 60-65%

4. Flour quality: Obey the people's republic of china's GB1355-86 standard

5. Power supply: about 74KW.

6. Total weight of the equipment: 17T

7. Dimension of the factory: 23000×7500×5000mm (tripod structure)

8. Container:40'+20'

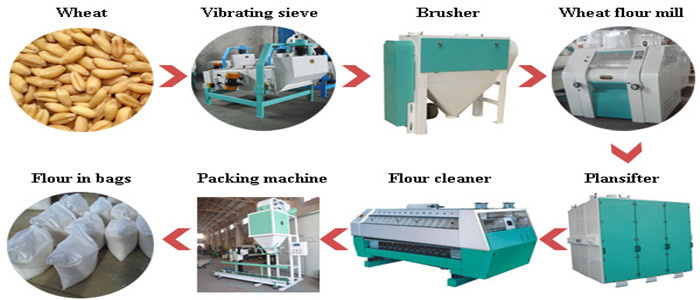

Wheat flour processing:Wheat----Vibrating sieve----Brusher----Wheat flour mill----Plansifter----Flour cleaner ----Packing machine ----Flour in bags.
Wheat-flour-milling-machines

Introduction for our company

Contact us

For more details about 20ton per 24 hours wheat flour mill wheat flour grinder,

You can contact us freely!

Luna Du

Sales Manager

Mobile:+86-15131196347

www.maizewheatmill.org

China and Australia Wheat Flour Mill Technology

China and South Africa Maize Mill Technology

Australia office; Brazil agent; South Africa office, Zambia office, Rd Congo office

Shijiazhuang Hongdefa Machinery Co., Ltd is a professional manufacture of wheat flour mill and maize mill, we provide high quality machine from 500kg/h to 50ton/h with different design according to our client needs, with European technology,

South Africa maize process, China wheat process, roll out unique and innovative wheat flour mill and maize mill plant.

The head office of Shijiazhuang Hongdefa Machinery Co., Ltd is located 4hours driving from Beijing, where we have approximately 100employees, a manufacturing facility of 30000square meters and 500 square meters of office space

Shijiazhuang Hongdefa Machinery have more than 30years experience in milling market.

Ethiopia 500T/24h wheat flour mill

Egypt: 250T/24h wheat flour mill

Brazil: 200T/24h wheat flour mill

South Africa 1500T/24h maize mill

Zambia: 200T/24h maize mill

Kenya: 150T/24h maize mill

More than 30countries
