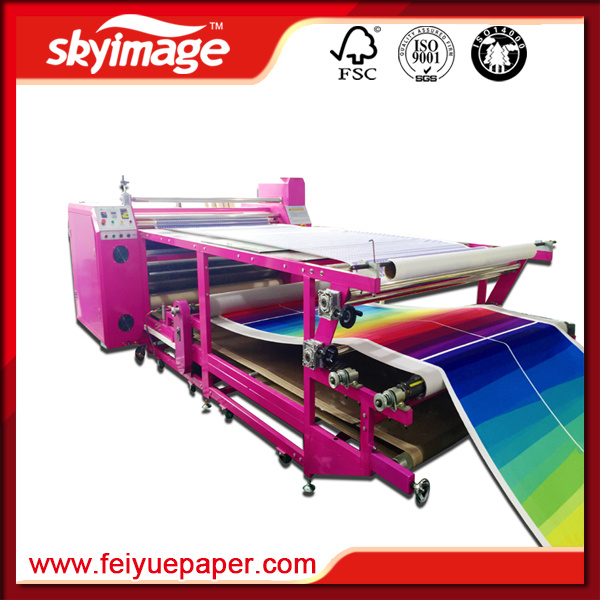

480mm*1.7m Oil Press Roll to Roll Heat Transfer Machine for Polyester Based Textiles
| Price: |
US $ 9166/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Specification:| Electric requirements: | 50hz380v or customized |
| Power: | 38kw |
| Heated model: | Oil heating system |
| Adjustable temper ranges: | 0-399° |
| Working temper: | 220°-230° |
| Heating system: | Digital adjustable temper control |
| Automatic system: | Frequency motor to control the speed |
| Production: | 3-8m/min |
| Diameter of heating drum: | 480mm |
| Length of heating drum: | 1800mm |
| Width of blanket: | 1680mm |
| Dimension: | 2500mm*800mm*1300mm |
| Working plate: | 1800mm*2500mm |
| Matched configuration: | Rewind paper/rewind cloth/unwind paper/unwind cloth system |
| Warranty: | 1 year |
| Packing size: | 2502500mm*1160mm*1560mm |
| Net weight: | 1700kg |
| Gross weight: | 1800kg |
Characteristics:
1, automatic device for deviation and correction of blanket---help you adjust the blanket automatically
2, explosion-proof device---protect the machine work in a safe condition
3, fabric counter system---count the fabric it print
4, peripheral oil tank outside---easy for you to add the oil
5, rewind fabric and cooling system---help to rewind the finished fabric, and make the fabric cold...
6, automatic pneumatic compression device---more convenient for the work of machine
Application:
Clothing industry (sportswear, uniforms, classes clothes, uniforms, bathing suits, diving suits, fashion, t-shirts, socks, denim)
Advertising industry (costumes, flags, banners, umbrellas, advertising products)
Bedding (sheets, blankets, quilt, mattress, mosquito nets, drapery, draperies, pillows, towels, pillow cases)
Household items (sofa sets, sofa cushions, mats, cushion, pillow, curtains, shower curtains, towels, bath towels, towel dry hair)
Outdoor supplies (tents, mountaineering bags, traveling bags, sleeping bags)
Shoes bags (cloth bags, bags, shopping bags, handbags, shoulder bags, woven bags, canvas shoes)
Jewelry accessories (scarves, scarf, scarves, shawls, gloves, wrist, masks, goggles, hats, hair bands)
Ribbon products (parapets, hair band, belt, tied belt, elastic belt, shoelaces, shoulder belt, gift belt, with pets).
Faq:
1.How wide is the machine?
1.2m width, 1.7m width machine;1.9m width machine
2.Does the press rolls the fabric once it is printed or you have to roll it on a different machine?
It can roll fabric after heat press, but we suggest you can roll it on other machine - roll yard machine to collect fabric as attachment, coz when finished printed , the fabric still has temperature about 90-150, if roll the printed fabric, the pattern become shape by pulled, and color,fabric will affect , more important if stretch fabric, we still advice to keep the stretch fabric in 5-6 hours after finished printing then roll it , or one night ,the color will more perfect.
3.Are you able to print on dark fabrics?If so how dark and on what contents?Can it print on stretch goods?
This press machine can press light color fabric,not dark fabric but can print on stretch fabric
4.How many yards or meters per hour?
150-200 meters per hours, depend on the fabric and the transfer speed.
5.Do you supply paper and ink and parts?
We also offer sublimation paper and sublimation ink!We provide one-stop services!
Contact info:
Nanjing fei yue paper industrial co., ltd
Tel:86-25-83228884
Fax:86-25-83228894
Web:Www.Feiyuepaper.Com & www.Skyimagepaper.Com
| Printing Plate: |
Heat Transfer Printing |
| Temp Range: |
0-399 |
| Power: |
15-42kw |
| Weight: |
1000-2600kg |
| Diameter Of Drump: |
480mm |
| Printing Width: |
1700mm |
| Blanket: |
DuPont Material |
| Thermal Oil: |
Mobil |
| Certificate: |
Ce |
| Type: |
Ink Jet |
| Structure: |
Rotary Letterpress |
| Color & Page: |
Multi-Colour Printing Press |
| Plate: |
Heat Transfer Printing |
| Printing Speed: |
3-8m/Min |
FeiYue Paper is a leading manufacturer of coated speciality papers in China. The company, which was founded in 2007, has a factory in SuZhou, trade compangy in NanJing and a global sales network.
Fei Yue Paper Inc specialized in manufacturing kinds of thermal transfer paper and print media.
Our main products including sublimation printing equipments and supplies such as sublimation transfer paper, inkjet sublimation inks, sublimation printers, heat press machines and transfer paper for cottons.
Sublimation is a type of phase transition, or a change in a state of matter, just like melting, freezing, and evaporation. Through sublimation, a substance changes from a solid to a gas without ever passing through a liquid phase. Dry ice, solid CO2, provides a common example of sublimation.

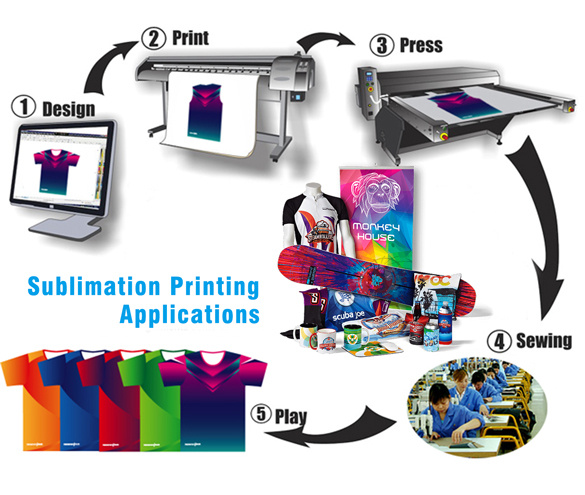

This is exactly what happens in sublimation printing. A sublimation printer prints the ink on a specially coated paper. The ink dries and turns into a solid. When heat and pressure is applied to the sublimation inks on the paper, it quickly turns to gas and is forced into the polyester substrate. When heat is taken away, the gas becomes trapped in the polyester permanently.
Dye Sublimation, as a process is really very simple. It is the method of applying an image to specially coated ceramics, metals and polyester cloth, using three main ingredients: Sublimation ink, heat and pressure. FeiYue Paper offer you one-stop sublimation printing service. The above mentioned devices and consumables can all be purchased in a single package to make it simpler for new users. We make it easy and fast for you to get your business up and running and ready for growth!
We committed to one-stop sublimation transfer printing solutions.
We run our own coating factory and heat press machine assembling workshop, thus to offer the most reasonable pricing and give the most profit to our clients.
Our factory covers 15000 square meters, and the fixed assets have reached of 40 million Yuan.
The products produced by us been widely applied to apparels like sportswear, swimsuit, basketball Jersey and so on. And also advertising industry and home internal like flags, banners, home textiles, and some hard substrates like ceramics, mugs, metals, snowboards etc.
FeiYue Paper strives for excellence. We work hard to produce the best specialty papers and graphic media to the digital dye-sublimation, industrial specialty and sewn products markets.
We are glad to provide brand name or do OEM to home and abroad clients.
Corporate Culture: High quality of product, High standard of customer service, Continously reformed production technology and high competitive rate.
Customer Base: Southeast Asia, Europe and America.
Service Concept: Always be tough on ourselves, do our best to meet your every demand. Keep a good and long business relations to customers.
Prospect: Strengthen the establishment of sales and marketing platform, which is the most basic economic foundation of future development. Promote and develop a boarder market. Have abundant capital reserves, personnel, technology and vertical network platform.
