| Prod Model: |
P20-LED curtain |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Panel Size: |
960*960mm |
| Grey Scale: |
14 Bit |
| Transparency: |
40% |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Configuration: |
1R,1G,1B |
| Scanning Mode: |
1/8 Scan |
| System Operating Platform: |
WIN XP |
| Display Type: |
LED Video Display |
| Application: |
Stage Performance |
| IP Rating: |
IP40 |
| Certification: |
RoHS |
| Pixel Pitch: |
20mm |
| Pixel Density: |
2500 Dots/ Sqm |
Product Description
Cheap P20 Indoor Stage LED Curtain Display to Creat Special Lighting Effect.
Features as below:
1. High transparency. Over 60%
2. SMD3528 LED, wide viewing angle up to 140 degree
3. With fast locks on all sides
4. Ultra-thin and super-light, easy to install and dismantle
5. Long viewing distance
6. High refresh over 1200Hz/s, no scan when taken photo.
ENBON LED mesh curtain with durable fresh color by adopting high quality LEDs;
SMD LED screen outdoor mesh with energy saving 24% by using high efficiency IC driver and improved PCB design;
Application:

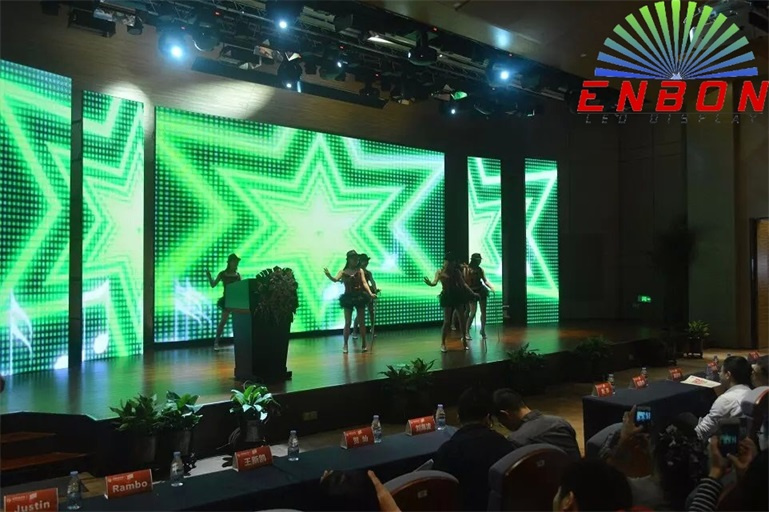

Indoor stage background, outdoor screen wall for a great campaign, ceremony and other activities. The widely used pixel pitch can be P10, P12.5, P16, P20
| Technical Prameters |
| PROJECT | P20 LED curtain display sreen indoor for rental |
| Pixel pitch | 20mm |
| Pixel density | 2500 Pixels/sqm |
| Module size(W*H) | 320 (mm)W *320(mm)H | |
| Module pixels(W*H) | 16 Pixels(W)*16 Pixels(H) | |
| Pixel configuration | 1Red 1Green 1Blue |
| Drive mode | constant current driving 1/4 scan |
| LED lamp type | SMD3528 |
| Cabinet size(W*H*D) | 960 W(mm)*960 H(mm) | |
| Cabinet resolution | 48 Pixels(W)*48 Pixels(H) | |
| Color scale | 65,536 degree |
| View angle(H/V) | 140/120 degree |
| Brightness (White balance) | ≥1300cd/sqm. |
| Power consumption(one cabinet) | Max:250W/sqm. Average:80W/sqm. |
| Operating Voltage | AC100V±10% or 220V ±10%; 50---60HZ |
| Net weight | 20 Kg/M 2 for Aluminum cabinet |
| Operating temperature | -20°C----+50°C (Customized power supply:-45°C---+60°C) |
| Operating humidity | 10%_95%RH |
| Life time | ≥100,000hours |
| MTBF | 5,000 hours |
| Whole Display Flatness | ≤0.3mm Juncture |
| Frame frequency | >60 Hz/s |
| Refresh rate | ≥2000Hz /s |
| Control distance | 100m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
| Power | 110V/220V±15% 50--60Hz |
| LED control system | LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable |
| Operating system | Windows 2000 / Windows Xp / Windows 7 |
| Protections for outdoor display | IP31 |
| Maintenance way | Rear Access |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 8, 000 square meters, with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.
AlllouruproductsthavevpassedeCECEFCCCandnRoHSHcertificateses70%0ofoouruproductstarerforoexportrandngoodsdarerexportedetotovere808countriesesWeWareranaLEDEcompanynyouocanacountnonoforogoodoqualitytandncompetitivevpricingngBesidesesyouocanaalsosexpectcexcellentnprersalelesellingnandnafteresalelservicesehererewhichccontainsnprofessionalaconsultationonfreeetrainingngfreeedrawingsgsinstallationoandn2 yearsrwarrantytyWeWwilllinspectcouruproductstinstalledeinidomesticimarketeperiodicallyly.
EnbonoisiequipedewithtadvancedemachinesesuchcasaAutomatedePickc& PlacecmachineneHighgSpeedeSMTMTWavevPeakaSolderingnmachineneReflowoSolderingnMachineneHighg& lowoTemperaturerAgingnroomomVibrationotestererWaterproofotestererAntitstatici& dustsfreeeworkshopoetctcModernrautomaticiequipmentntogetherewithtouruinnovativevengineersrsdedicatedeworkersrandnexperiencedesaleseandnserviceseteamamwe'rerthehrighthsuppliereyouocanatrustsforogoodosolutionsnforoalllyouruLEDEdisplayaprojectsts.
Contactcusuforoanaofferetoday!yOuruteamawilllrespondnini1 workingndayayWeWlookoforwardrtotbebyourugoodopartnereandngrowotogether!r
