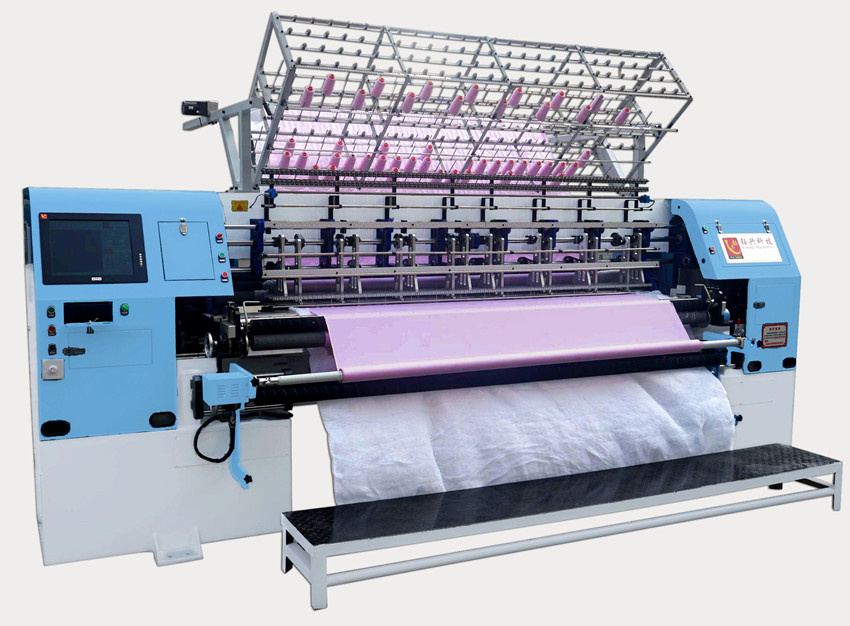

High Speed Computer Shuttle Multi-needle Quilting Machine YXS-94-2C/3C(3"/3"+3")
Compared with the old shuttle quilting machines, the output is higher, can reach max 195m/hour, rolling speed 800r/min, pattern quilting and stitch more precise, and running more steady.
Functions:
1. Adopt the advanced computer and mechanistic technology.
2. The needle bar running with neddle bar frame, no need to add extra lube and avoid the materials be soiled by lube.
3. Needle bar frame structure is more firm and durable, so that the cost of maintenance is cheaper.
4. Sadding rack and roller are drivern by servo equipment.
5. Principal axis uses the frequency conversion device.
6. Adjust speed by computer and the speed can reach 800r/min, the stitch can be set between 2 mm-6mm.
7.360° randon quilting and limitless multi-span and independent quilting.
8. Compensation function, an effective solution for looping pattern with thick material.
Advanced and practical testing upper thread broken techniques, the machine is auto-stop when thread is broken.
10. The infrared system, ake your operate more safe.
11. Pattern editing is easy to lear.
12. Ringing notice when start machine.
| Product Name | High Speed Computer Shuttle Multi-needle Quilting Machine |
| Model | YXS-94-2C/3C(3" /3" +3" )
|
| Size(L*W*H) | 5000*1200*1700mm |
| Weight | 3500kg |
| Quilting width | 2450mm |
| Needle bar space | 2B 76.2(3" ); 3B 152.4(3" +3" ) |
| Quilting thickness | ≤ 50mm |
| Rolling speed | 300-800r/min |
| Output | 0-195m/hour |
| Needle type | #16, #19 |
| X-axis movement | 254mm |
| Needle space | 25.4mm |
| Stitch | 2-6mm |
| Rated voltage(AC) | 380V/50HZ, /220V/60HZ |
| Power | 3.5KW |
