High Speed Computerized Lock Stitch Quilting Machine for Doing Comforter, Cushion, Bags

High Speed Computerized Lock Stitch Quilting Machine for Doing Comforter, Cushion, Bags
Price: US $ 10000-50000/Set
Trade Terms: FOB,CIF,EXW
Min Order: 1/Set
Pay Type: L/C,T/T

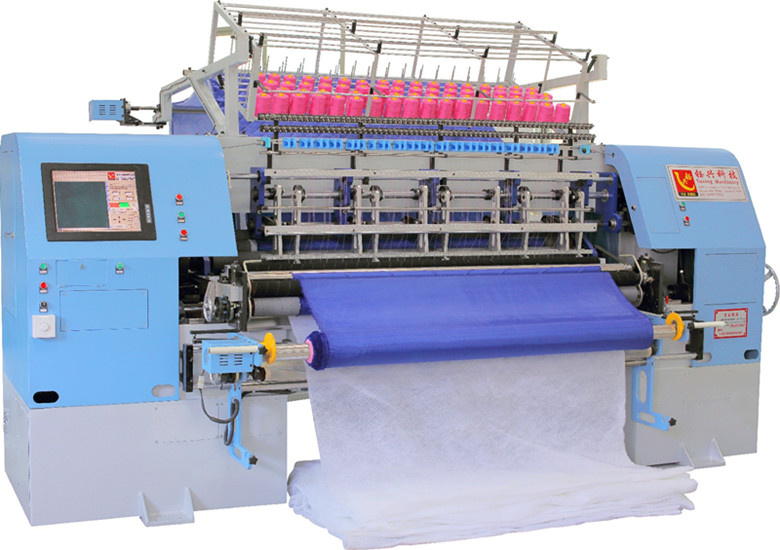

High speed computerized lock stitch quilting machine for doing garments , cushion etc
YXS-64-2C/ YXS-64-3C


This machine is updated ,compared with the common shuttle quilting machine , it has some feature :

1) Strengthen the whole construction stability .we adopt saddling rock guide rail ,steadying running,
   patterns are more precise and lower thread broken .

2) High-end shuttle machine is integral structure ,It's easy to transport and dismounting.

3) Needle bar and pressing block take the double rocker , low noise ,less maintenance and no need
   extra lube ,avoid the materials be soiled by lube .

4) Product speed is faster 30%--40%.

5) Equip import shuttle , auto-stop system when the thread broke by infrared and cloth going
   equipment with reverse function.

6) There's no need to adjust machine in certain processing thickness , operation is simpler .

Functions:
1.Machine adopt the advanced computer and mechanistic technology.
2.Needle bar running with needle bar frame,no need to add extra lube, avoid the materials be soiled
  by lube.

3.Needle bar frame structure is more firm and durable,so that the cost of maintenance is cheaper.
4.Saddling rack and roller are driven by servo equipment.

5.Principal axis uses the frequency conversion device.
6.Adjust speed by computer, the speed can reach 800r/min,the stitch can be set between 2 mm-6mm.

7.360 degree quilting and limitless multi-span and independent quilting.
8.Compensation function, an effective solution for looping pattern with thick material.

9.Advanced and practical testing upper thread broken techniques, the machine is auto-stop when thread is broken.
10.The infrared system ,make your operate more safe.

11.Pattern editing is easy to learn. Ringing notice when start machine


Specification:

Product Name

High Speed Computer Shuttle Multi-needle Quilting Machine

Model

YXS-64-2C/3C(3"/3"+3")

Size(L*W*H)

3900*1200*1700mm

Weight

3100kg

Quilting width

2450mm

Needle bar space

2C 76.2(3"); 3C 152.4(3"+3")

Quilting thickness

≤50mm

Rolling speed

300-800r/min

Output

0-195m/hour

Needle type

#16,#19

X-axis movement

254mm

Needle space

25.4mm

Stitch

2-6mm

Rated voltage(AC)

380V/50HZ,/220V/60HZ

Power

3KW




After-sale service :

1.Spare parts can be shiped with machines.

2.Usually for only one quilting machine, we need 1*20ft container for loading. If customer also
    need a cuting machine and a roller together, then 1*40ft container is needed.

3. All our machines are generally packed by plastic film. If needed, we can also pack machines in wooden case.

Company profile :
Yuxing machinery equipment technology co.ltd is located at Dongguan , China .

We have more than 10 years experience on manufacturing quilting machine . and all of our machines are of CE & ISO approved .  We specialized in computerized (high-end) shuttle lock stitch multi-needle quilting machine ,  computerized non-shuttle chain stitch multi-needle quilting machine ,  cutting machine ,  bobbin winder ,  and roller etc .

We always insist "Quality first , customer first ,  credit management ,  credit- oriented " purpose .

Prod Model: YXS-64-2C/3C
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 3900*1200*1700
Weight: 3100 Kg
Quilting Width: 1700 Mm
Quilting Thickness: 50 Mm
Needle Bar Space: 3", 3"+3"
Stitch: 2-6 Mm
Output: 0-195 M/H
Rolling Speed: 500-800 Rpm
Warranty: 1 Year
Servo Motor: Panasonic Servo Motor

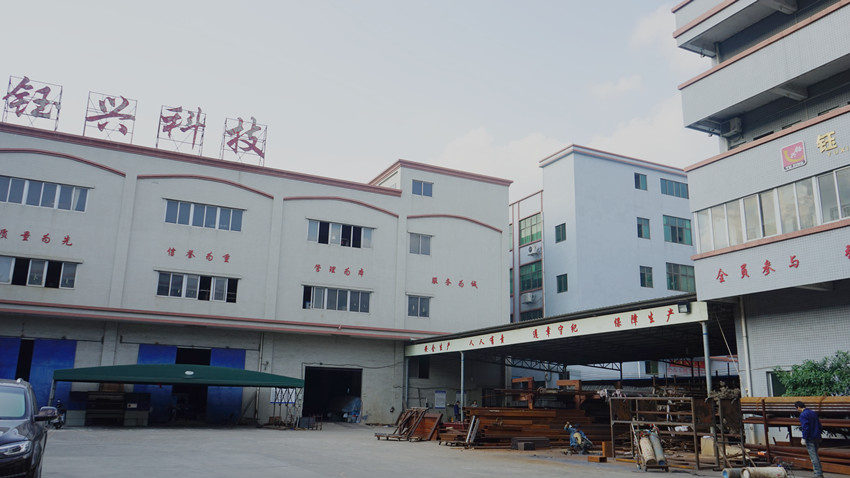

Yuxing Machinery Equipment Technology Co., Ltd is founded in 2002, located at Jiaoli Industrial Zone, Zhongtang Town, Dongguan City, Adjacent to the Dongguan bus station, connected the highway Guangzhou to Shenzhen and the Wuhuan Road, besides G107 with very convenient transportation. Our company produces the computerized high-end shuttle multi-needle quilting machine, computerized shuttle (lock stitch ) multi-needle quilting machine, non-shuttle(chain stitch) multi-needle quilting machine, quilting embroidery machine, cutting machine, and bobbin winder, with more than 10 kinds of producs, specialized in manufacturing computerized quilting machines, includng scientific research, process manufacturer and sales management and after service.

Successful implemented of the company into ISO9001: 2000 international Quality Managerment System, honored as "Private Scientific and Technological Enterprises"by Dongguan City Science&Technology office and Dongguan City Intellectual Property office. Our company owns about 200 workers. The machinery, automation, computers and over 20 technical engineers. It's good capability on products' development and improvement, owning lots of patents. In these years, Yuxing Machinery, owing to good quality and substantial price, have earned a hot market in China. We have established branches and dispatched technicians in over ten cities. At the same time, products are exported to Southeast Asia, Middle East, Europe, Oceania and Africa. Yuxing Machinery get a high credit standing at the correlative industry.

We always insist"Quality first, customer first, credit management, credit-oriented"purposes, in the highly competitive market conditions. We have been aggressive, innovative, self-developement in the competition, at the service of self-perfection, with modern business philosophy, excellent products, quality service to serve our customers.
