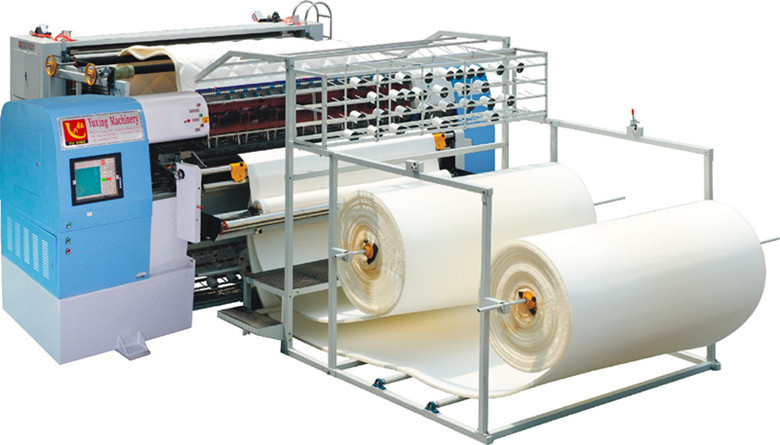

Computerized Non-shuttle Multi-needle Quilting Machine YXN-94-3C(2"+3"/3"+3")Feature:* 3 needle bar(5" and 6"), Patterns of 5 inch, 6 inch&8 inch can be processed with machine.
* Servo motors and drives are made in Japan Panasonic, frequency converters from Delta, needles from German.
* 200 patterns in computer for you to choose. You can also edit the patterns as you like. The computer can store 1000patterns
Function:1. Adopt the advanced process design.
2. Needle bar and pressing block take the double rocker avoid the materials be soiled by lube.
3. High rigidity machine body, perfect protecting equipment and steady-going control system.
4. X\Y motors are driven by servo system, and principal axis takes frequency ports system.
5. Test the working state of all sensors and computer in real time.
6. Auto-stop system when the bottom or upper thread broke by infrared. Auto lift needle and adjust the speed by computer.
7. Auto faults tips for servo motor system and transducer, which is convenient to eliminate problems.
8.360° Quilting and limitless multi-span and independent quilting.
Steady running, high speed, low noise, very thick material with precise quilting.
Ringing notice when start machine.
| Product Name | Computerized Non-shuttle (chain stitch) Multi-needle Quilting Machine |
| Model | YXN-94-3C(2" +3" /3" +3" ) |
| Size(L*W*H) | 4800*1600*2000mm |
| Weight | 4500kg |
| Quilting width | 2485mm |
| Needle bar space | 50.8, 76.2, (2" +3" ); 76.2, 76.2(3" +3" ) |
| Quilting thickness | <80mm |
| Rolling speed | 600-900r/min |
| Output | 10-230m/hour |
| Needle type | #21-#24 |
| X-axis movement | 410mm |
| Needle space | 25.4mm |
| Stitch | 2-8mm |
| Rated voltage(AC) | 380V/50HZ, /220V/60HZ |
| Power | 7KW |

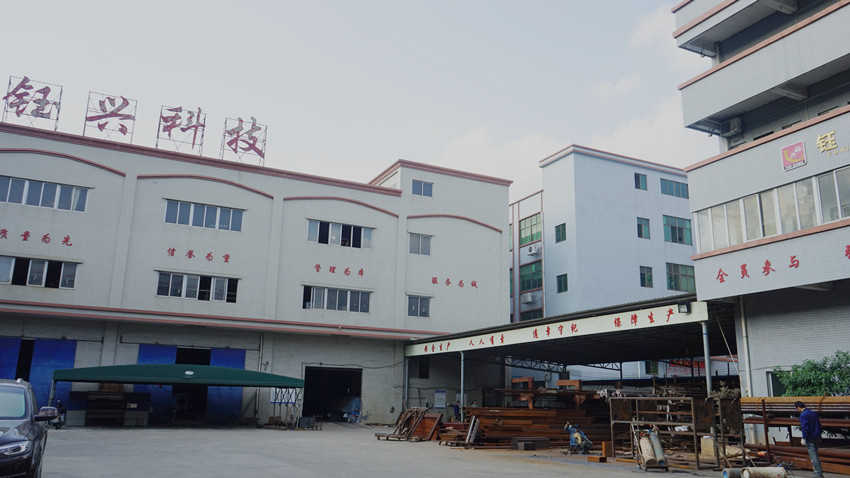

Yuxing Machinery Equipment Technology Co., Ltd is founded in 2002, located at Jiaoli Industrial Zone, Zhongtang Town, Dongguan City, Adjacent to the Dongguan bus station, connected the highway Guangzhou to Shenzhen and the Wuhuan Road, besides G107 with very convenient transportation. Our company produces the computerized high-end shuttle multi-needle quilting machine, computerized shuttle (lock stitch ) multi-needle quilting machine, non-shuttle(chain stitch) multi-needle quilting machine, quilting embroidery machine, cutting machine, and bobbin winder, with more than 10 kinds of producs, specialized in manufacturing computerized quilting machines, includng scientific research, process manufacturer and sales management and after service.
Successful implemented of the company into ISO9001: 2000 international Quality Managerment System, honored as "Private Scientific and Technological Enterprises"by Dongguan City Science&Technology office and Dongguan City Intellectual Property office. Our company owns about 200 workers. The machinery, automation, computers and over 20 technical engineers. It's good capability on products' development and improvement, owning lots of patents. In these years, Yuxing Machinery, owing to good quality and substantial price, have earned a hot market in China. We have established branches and dispatched technicians in over ten cities. At the same time, products are exported to Southeast Asia, Middle East, Europe, Oceania and Africa. Yuxing Machinery get a high credit standing at the correlative industry.
We always insist"Quality first, customer first, credit management, credit-oriented"purposes, in the highly competitive market conditions. We have been aggressive, innovative, self-developement in the competition, at the service of self-perfection, with modern business philosophy, excellent products, quality service to serve our customers.
