Computerized Shuttle Multi-Needle Quilting Sewing Machine (YXS-94-3B/2B)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Money Gram,Western Union |

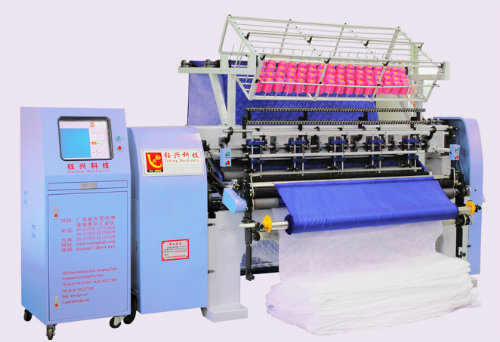

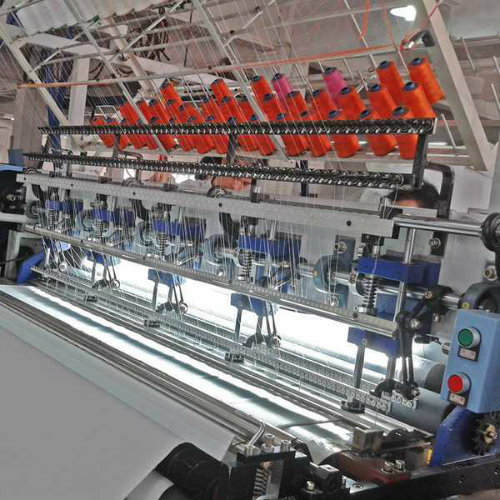

Computer Shuttle Multi-needle Quilting Machine
YXS-94-2B/YXS-94-3B
Description: Lock stitch quilting machine, be used to quilt polyester wadding and fabric together for garments, bedspread, pillow, etc
Function1. Adopt the advanced computer and mechanistic technology
2. Saddling rack and roller are drived by servo equipment
3. Principal axis uses the frequency conversion device
4. Adjust speed by computer and the speed can reach 500r/min, Stitch range 2mm-6mm
5. Multi-span and independent pattern quilting at will.
6. Compensation function, an effective solution for looping pattern with thick material
7. Auto lift needle and orientation brake system
8. Auto stop system when the thread is broken. (select function)
9. The infrared system make your operate more safe
10. Inset pattern and follow to work.
11. Convenient pattern editing function
12. Ringing notice when start machine
Parameter :| Product Name | Computer Shuttle (Lock Stitch) Multi-needle Quilting Machine |
| Model | YXS-94-2B/YXS-94-3B |
| Size(L*W*H) | 4900*1130*1610mm |
| Weight | 3000kg |
| Quilting width | 2450mm |
| Quilting thickness | 50mm |
| Rolling speed | 200-550r/min |
| Output | 10-150m/hour |
| Needle type | #16, #19 |
| X-axis movement | 260mm |
| Needle space | 25.4mm |
| Needle bar space | 2B 76.2(3" ); 3B 152.4(3" +3' ) |
| Stitch | 2-6mm |
| Rated voltage(AC) | 380V/50HZ 220V/60HZ |
| Power | 3.5KW |
Warranty:1.Under 1 year warranty, any spare parts for changing are free of charge.
2.After warranty, we supply spare parts with the lowest price.
3.If any problem that can not be solved, we also can arrange engineer to overseas for solving
the problem.
| Prod Model: |
YXS-94-3B/YXS-94-2B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Quilting Width: |
94 Inch |
| Rolling Speed: |
300-550 Rpm |
| Thickness: |
50 Mm |
| Use For: |
Garments, Sleeping Bag, Quilts, Bedspread etc |
| X-Axis: |
306 Mm |

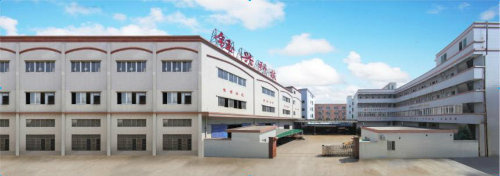

Yuxing Machinery Equipment Technology Co., Ltd is founded in 2002, located at Jiaoli Industrial Zone, Zhongtang Town, Dongguan City, Adjacent to the Dongguan bus station, connected the highway Guangzhou to Shenzhen and the Wuhuan Road, besides G107 with very convenient transportation. Our company produces the computerized high-end shuttle multi-needle quilting machine, computerized shuttle (lock stitch ) multi-needle quilting machine, non-shuttle(chain stitch) multi-needle quilting machine, quilting embroidery machine, cutting machine, and bobbin winder, with more than 10 kinds of producs, specialized in manufacturing computerized quilting machines, includng scientific research, process manufacturer and sales management and after service.
Successful implemented of the company into ISO9001: 2000 international Quality Managerment System, honored as "Private Scientific and Technological Enterprises"by Dongguan City Science&Technology office and Dongguan City Intellectual Property office. Our company owns about 200 workers. The machinery, automation, computers and over 20 technical engineers. It's good capability on products' development and improvement, owning lots of patents. In these years, Yuxing Machinery, owing to good quality and substantial price, have earned a hot market in China. We have established branches and dispatched technicians in over ten cities. At the same time, products are exported to Southeast Asia, Middle East, Europe, Oceania and Africa. Yuxing Machinery get a high credit standing at the correlative industry.
We always insist"Quality first, customer first, credit management, credit-oriented"purposes, in the highly competitive market conditions. We have been aggressive, innovative, self-developement in the competition, at the service of self-perfection, with modern business philosophy, excellent products, quality service to serve our customers.
