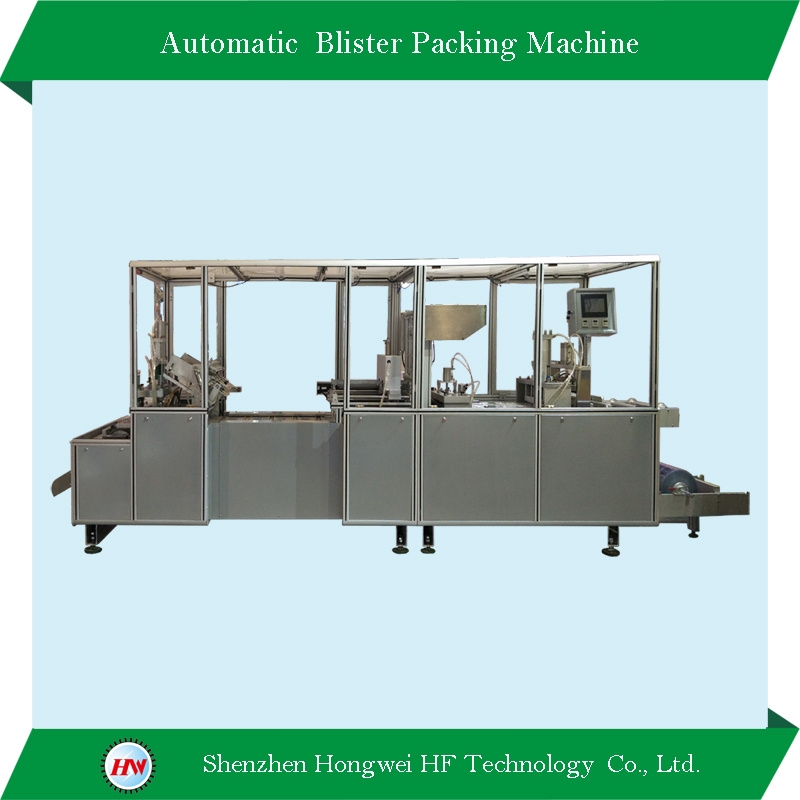

Disposable Syringe Automatic Blister Packing Machine

Applications:

A versatile and reliable automatic blister packing machine
Applicable to:
      Toothbrush, battery, stationery, medical Instruments, toys, small hardware, electronics parts and finished products, automotive parts, household applications, cosmetics and other cardboard and plastic blister package, such as Syringe, model vehicle, clipper, flashlight, battery, spark ignition plug, lipstick, coat hook, cleaning balls, razors, correction fluid tube, pencil and the like.

Specifications:

Features:

Simple construction and easy operation;

Chassis made out of Aluminum profile

Integrated material feeding, clamshell thermoforming, HF welding, punch cutting, finished  products transmit on one assembly;

Color LCD + touch screen interface and HMI and PLC-based control system, high output,  low noise, easy operation. High automation and humanization;

Photoelectric sensing, alert by Humming when shortage of PVC sheet or cardboard is  found;

The design of modular assembly makes convenient transport in and out of convey chains;

Separate plastic film rolls from printed cardboard feeding stations, saves much packing  materials;

High safety design. All doors are equipped with safety lock. The machine will shutdown  whenever improper opening of one door happens.

 Advantages:

 Flow packing line, high speed processing. It enjoys the huge advantages of saving space,  minimizing     productive cost;

Microcomputer (PLC based) control of the whole process. It is easy to adjust the technical  parameters and good for production management;

Automatic Cardboard-plastic blister packing assembly does not need molded clamshell. It  needs only rolls of PVC film and printed cardboard and the products to be packaged  automatically once for all;

Special method to pack the finished products. It extends lifetime of the cutting mould and  increases productivity much;

Film gripper convey chain ensure stable film feeding and convey, more reliable than roller  type convey method;

It is a versatile packing assembly line. User can process other products with the same  machine just by changing of moulds.

 Remarks:

We provide user with service of customization of Design and Fabricating tooling, mould and auto-feeder as per user's request and depending on the actual conditions of the products to be processed.
