Price: | Negotiable/Set |
---|---|
Min Order: | 1/Set |
Pay Type: | L/C,T/T,Western Union,Money Gram |
Specifications:
Model | HW-BP300 | HW-BP500 |
Rating Output | 15-20 Punch/Minute, 2-3 pcs/Mould | 15-20 Punch/Minute, 4-8 pcs/Mould |
Assembly Dimensions | 4800*780*1900mm | 6800*780*1900mm |
Net weight | Appropriate 0.8T | Appropriate 2T |
Molding Area | 200*300mm | 300*400mm |
Ambient Temperature | 18~30ºC | 18~30ºC |
Power Supply | 3-Phrase 380V | 3-Phrase 380V |
Compressed Air Pressure | 0.6MPa | 0.6MPa |
Max. Current | 15 A | 20 A |
Max. Power | 6 kw | 9 kw |
Features:
Simple construction and easy operation;
Chassis made out of Aluminum profile
Integrated material feeding, clamshell thermoforming, HF welding, punch cutting, finished products transmit on one assembly;
Color LCD + touch screen interface and HMI and PLC-based control system, high output, low noise, easy operation. High automation and humanization;
Photoelectric sensing, alert by Humming when shortage of PVC sheet or cardboard is found;
The design of modular assembly makes convenient transport in and out of convey chains;
Separate plastic film rolls from printed cardboard feeding stations, saves much packing materials;
High safety design. All doors are equipped with safety lock. The machine will shutdown whenever improper opening of one door happens.
Advantages:
Flow packing line, high speed processing. It enjoys the huge advantages of saving space, minimizing productive cost;
Microcomputer (PLC based) control of the whole process. It is easy to adjust the technical parameters and good for production management;
Automatic Cardboard-plastic blister packing assembly does not need molded clamshell. It needs only rolls of PVC film and printed cardboard and the products to be packaged automatically once for all;
Special method to pack the finished products. It extends lifetime of the cutting mould and increases productivity much;
Film gripper convey chain ensure stable film feeding and convey, more reliable than roller type convey method;
It is a versatile packing assembly line. User can process other products with the same machine just by changing of moulds.
Applications:

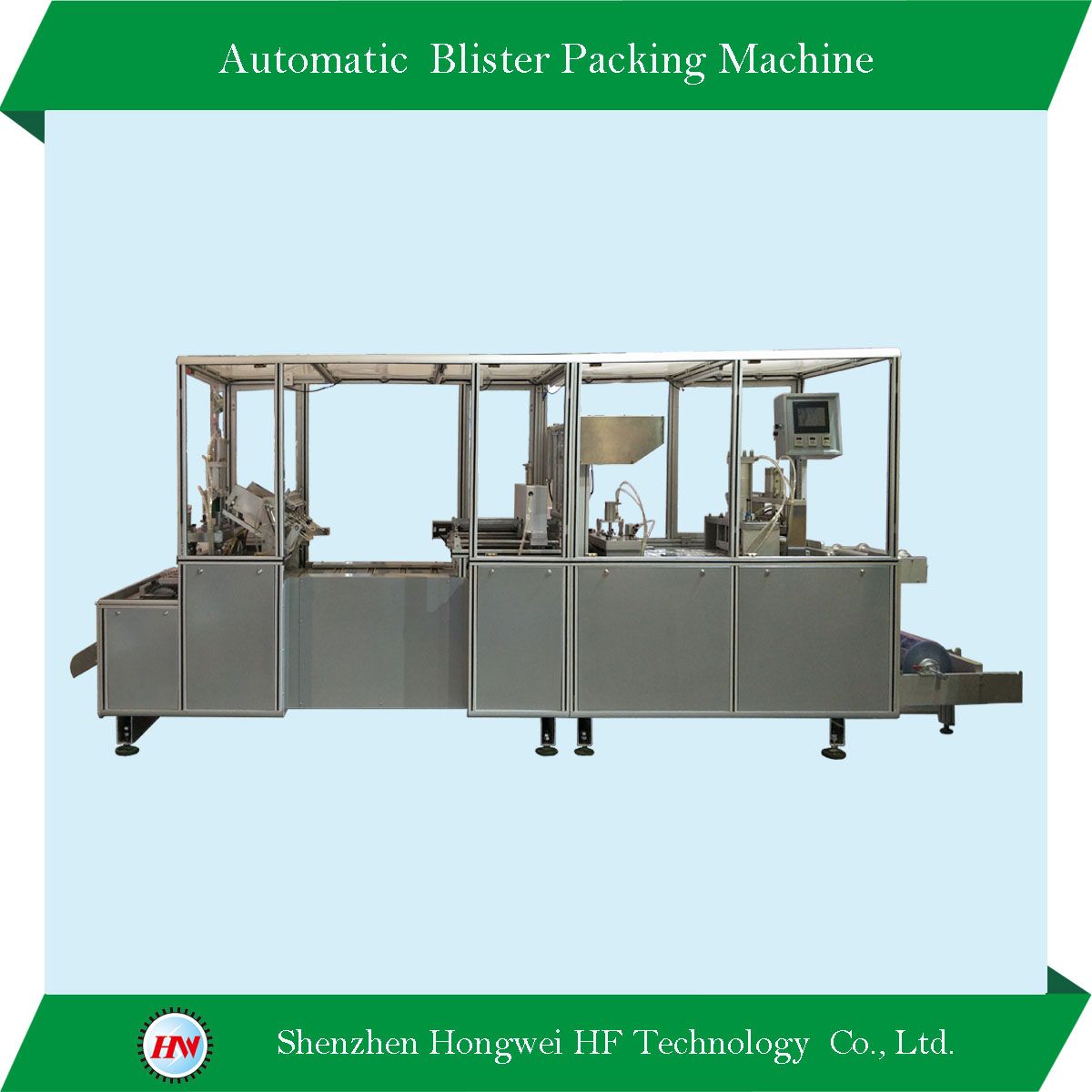

A versatile and reliable automatic blister packing machine
Applicable to:
Toothbrush, battery, stationery, medical Instruments, toys, small hardware, electronics parts and finished products, automotive parts, household applications, cosmetics and other cardboard and plastic blister package, such as Syringe, model vehicle, clipper, flashlight, battery, spark ignition plug, lipstick, coat hook, cleaning balls, razors, correction fluid tube, pencil and the like.
Remarks:
We provide user with service of customization of Design and Fabricating tooling, mould and auto-feeder as per user's request and depending on the actual conditions of the products to be processed.
Prod Model: | HW-BP500A |
---|---|
Construction: | Integrated Packing Assembly |
Application Field: | Healthcare and Medical |
Driven Type: | Pneumatic |
Automatic Grade: | Automatic |
Packaging Material: | Plastic |
Usage: | Inner |
Packaging Type: | Blister Packaging |
Type: | Custom Build |
