| Prod Model: |
HW-BP12K2R |
| Automatic Grade: |
Semi-Automatic |
| Application: |
Hair Care Products |
| Driven Type: |
Pneumatic |
| Material Type: |
Solid |
| Packaging Material: |
Plastic |
| Forming Species: |
Blister Package |
Product Description

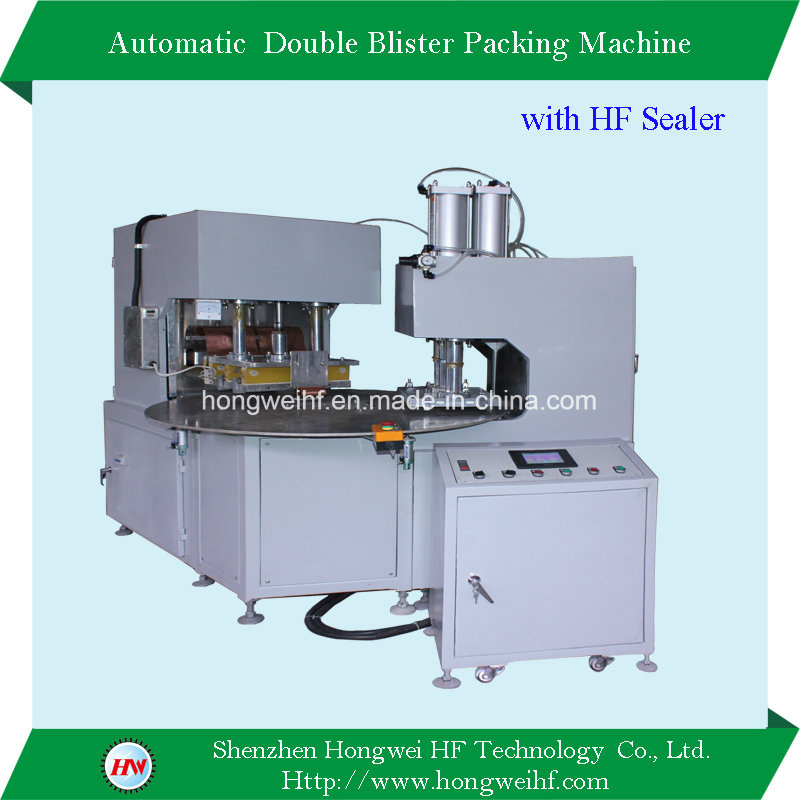

High Frequency Blister Sealing Machine
Applications:
Materials:
PVC (and materials contains PVC more than 10%), PET, PETG, APET, GAG, PU, TPU, EVA and cardboard
Products:
Toothbrush, Battery, Stationery, Food, Medical Instruments, Toys, Small hardware, Electronics parts and finished products, Automotive parts, Household applications, Cosmetics, healthcare and medical products, and other cardboard and plastic blister package, Such as Injector, Solid plastic, Model Vehicle, Clipper, Flashlight, Battery, Spark Ignition Plug, Lipstick, Coat Hook, Cleaning Balls, Razors, Correction Fluid, Pencil and the like.
Features
- Hongwei Special automatic tracking device with power change keeps same standard for each product, this help Save 15-20% power consumption compared with similar machine made by other manufacturer.
- High Q-value oscillation loop design, Low power consumption stable and reliable output
- Imported Cube HF oscillator system, Powerful output
- Imported "5557" or "2D21" High sensitive Anti-spark device protects mould
- High efficiency Push-plate design
- Pneumatically-driven
- 3 or 4 mould tray on a rotary table
- Cylinder Propping location device ensures precise plate position
Specifications
| Model | HW-BP12K2R | HW-BP15K2R |
Power Consumption | 12KW | 15 KW |
Power Supply | 380 V | 380 V |
Input Power | 12 KVA | 12 KVA |
Rectifier | Silicon Diode | Silicon Diode |
Oscillator Tube | 7T85RB | 7T69RB |
Max. Pressure | 650 Kg | 750 Kg |
Max. Gap between Electrodes | 250 mm | 250 mm |
Welding Head Travel | 175 mm | 175 mm |
Plate Size | 400 X 600 mm | 600 X 800 mm |
Time Adjustment | 0~10 S ( Adjustable) | 0~10 S ( Adjustable) |
Dimensions | 1000 X 1660 X 1730 mm | 1100 X 1660 X 1800 mm |
Net Weight | 400 Kg | - 500Kg
|
Shenzhen Hongwei High Frequency Technology, formerly named "Shenzhen Hongwei High Frequency Machine Equipment Co., Ltd. ", has been dedicated to the research and development of plastic HF welding and cutting and ultrasonic cleaning technology and manufacture high performance machines since it is founded in 1998.
Hongwei HF and Ultrasonic product lines include welding/cutting HF Welder, blister packaging machine, HF Pre-heating machine, ultrasonic welding machine, ultrasonic cleaning machine and various mould and tooling, which is applied widely in industry of
Medical equipment Auto Parts Toys Cosmetics
Tourism Oral Health Stationary Communications
Consumer Electronics Eyewear Footwear Helmet
Belt, Wallet and Bags Badge Brewery Small Hardware
Household Applications Sports Sign and Outdoor Advertisement
Thanks to the boom of Chinese manufacture industry in the last years, Hongwei is growing fast together with users from Yangtze River delta area and Pearl River Delta Area, the two main Chinese manufacture bases. Hundreds of factories are using Hongwei high Frequency and ultrasonic machines to produce various products for consumers all over the world.
Along with the industry migration from China, an increasing number of manufacturers from Japan, Mexico, Brazil, Bangladesh, India, Indonesia, Viet Nam, are using Hongwei HF and Ultrasonic machines in recent years.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
