Full Color Soft/Flex LED Curtain P9.375 for Indoor/Outdoor
Price: |
US $ 700/Square Meter |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Square Meter |
Pay Type: |
L/C,T/T,Paypal,Western Union |
Full Color P9.375 Soft LED Curtain/flexible curtain for indoor or outdoor use, with good waterproof IP65 and high light transmittance 25%
Product Advantages:
1. Transparent design, light transmittance up to 25%, good lighting and wind transparent, good heat dissipation,special design for stage background
2. Super slim with minimum thickness of 7mm and maximum thickness of 17mm
3.Ligh weight, single unit weight only with 1.85kgs
4.Adopt of metal connection component, fastness and durable
5.Easy bend for defferent shapes,like S, Circle, Curve etc, also can Foldable from Horizontal and Vertical
6.Streamline design and beautiful appearance
7.Good waterproof IP65, can used for outdoor environment
8.Single module design, can dismantle by single module, fast and easy to maintain
9.High definition,high gray scale, high contrast ratio and refresh rate, meet the request of HD vidicon

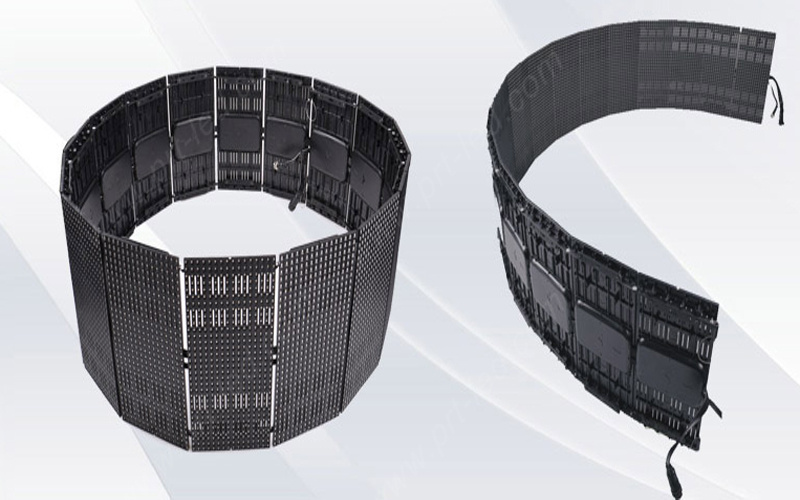

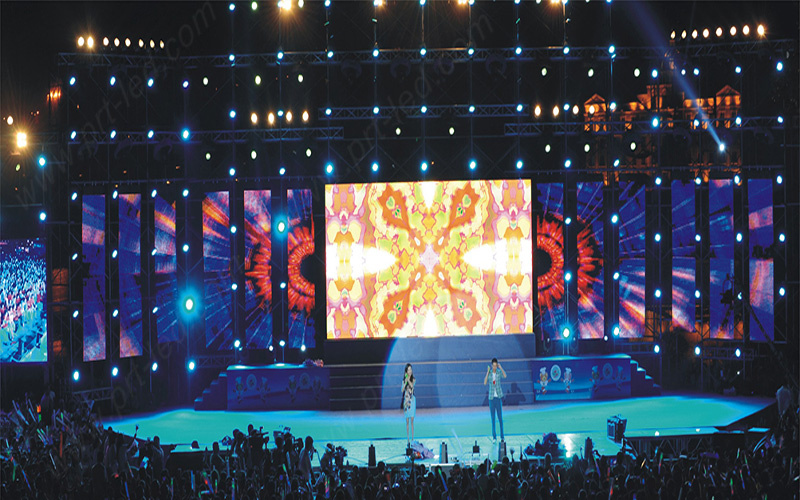

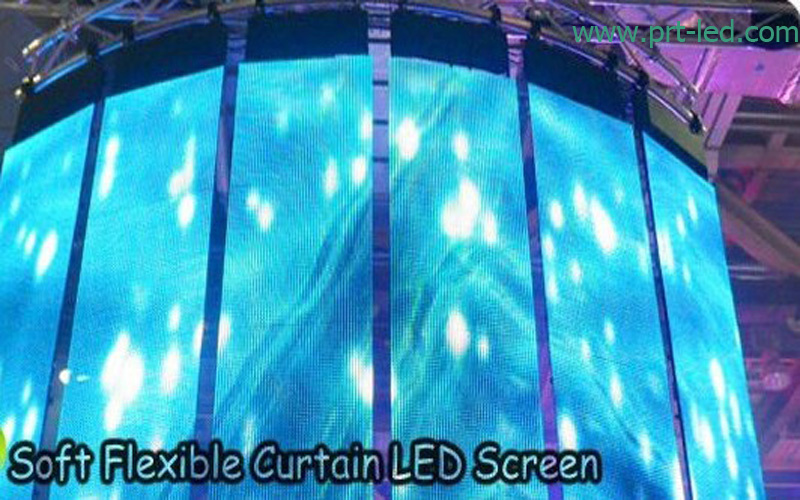

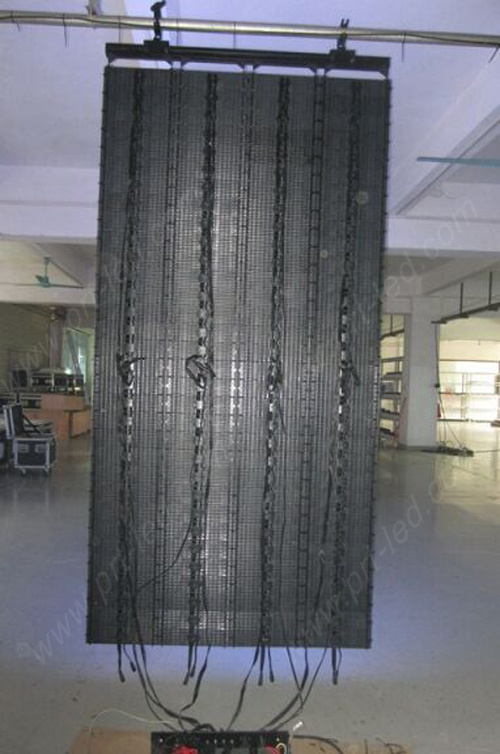

More pictures for reference:
Main parameter as below:Specificaion: |
Type Number | SLOR9375 | Unit module composition | L1×H6module |
Pixel pitch(MM) | 9.375 | Unit module pixel | L32×H96dot |
LED Standard | SMD3528 | Max.power consumption | 135W |
Pixel composition | 3 IN 1 | Module material | PC |
Pixel density(dot/m2) | 11377 | Protection level | IP 65 |
Demensions(mm) | L300*W150 | Viewing angle | 110° |
Module Power | 25W | Working temperature | -20ºC~+50ºC |
Module resolution(L×W) | 32*16 | Working humidity | 10%~90% RH |
Scan mode | 1/8 | Life span | ≥30,000 hours |
Grey | 65536 | Working voltage | AC 220 V / (110V) ±15% , 47~63 HZ |
Refresh rate(Hz) | ≥2000 | Signal transfer | Lan cable |
Brightness (CD/m2) | 2000 | Control system | LED FLASH Computer Control System |
Best viewing distance(M) | 9.5 | Computer platform | Windows XP,Windows 7 |
Unit module dimension | L300×H900mm | Video Sources available | DVD, VCD, VCR, TV, camera with PAL/NSTC |
Control case size | 535×200×150mm | Control pixel | L128×H192dot/L64×H384dot |
Control area dimension(mm) | L4×H2unit/L2×H4unit | Control case max.power | 1200W |
Control area dimension(mm) | W1200×H1800MM/W600×H3600MM |
|
|
Effetive control distance | ≤ 100 M (by LAN) , ≥ 100 M (by fiber optic with multi-module or single module) |
Prod Model: |
P9.375 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
LED Type: |
SMD3528 |
Module Size: |
300X150mm |
Transparency: |
25% |
IP Degree: |
65 |
Module Unit Demension: |
300X900mm |
Tube Chip Color: |
Full Color |
Display Function: |
Video Display |
Pixel Configuration: |
1R,1G,1B |
Scanning Mode: |
1/8 Scan |
Display Type: |
LED Video Display |
Application: |
Shopping Guide |
Certification: |
CCC |
Pixel Pitch: |
9.375mm |
Pixel Density: |
11377dots/Sq.M |
System Operating Platform: |
Window 7,XP |
IP Rating: |
IP65 |
PRT OPTOELECTRONIC Co., Ltd is located in Bao'an District of Shenzhen city, specializing in R&D, manufacturing Full Color LED display for outdoor and indoor advertising with many different pixel pitches, and many different design, owned 5 new-automatic production lines and advanced test equipments to control quality ensure high quality. And got the international standard certificates of ISO9001-2000 and 14001, CE, CCC, FCC, RoHS, gurantee high quality!
Our main products include Outdoor LED display, Indoor LED display, Rental LED Display, Stage backbround LED screen, LED Curtain, Sport stadium perimeter LED screen, Mobile LED screen, LED display modules etc. Also supply LED professional stage lights based as customer's requests.
As the growing, we have more than 150 staffs, mostly with rich working experience in this area for many years, and several professional engineers for production and after sale service.
We got a strong team for exporting business, members with rich exporting experience over ten years, to introduce better solutions based on customers' requirements professionally, and guarantee the products to be shipped out in time and smoothly, so we can provide our clients high quality products with competitive prices and excellent service, and have obtained a good reputation from our customers.
Our company's operating philosophy, "Quality is everything, Service is the key to success ", because our purpose is to let business done easily and trustingly, to save customer's searching time and purchase cost, solve problem on customer's position, to let everything to be "PERFECT"(abbreviated to"PRT" )!
PRT is a developing company, need hard work of our staffs, also need your large positive support, let us do business and develop together, "sincere cooperation, mutual benefit and common development" is our principle.
Please send your e-mail to us and call us directly, we will answer you as soon as we can.
