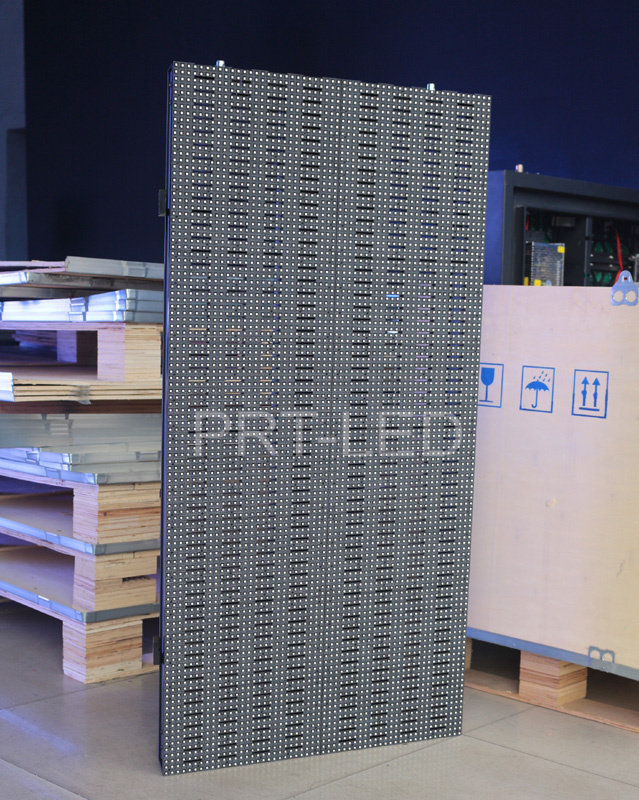

P6.25 Slim Aluminum Display Panel with certain chamfer angle for curved screen, arc-shaped screen for outdoor or indoor, also can for flat screen, with Panel size of 500x1000mm
Features:
1. SMD led encapsulation confirm wide view angle and good uniformity
2. Low power consumption,energy saving, long life span>100000Hours
3.Slim Aluminum cabinet ensure lightweight,easy to move with hands
4. Cabinet with +- 15 degree adjustable angle,and with adjuster to combine abnormal shaped led screen, like S shape, circle shape,wave shape,etc.
5. Easy and quick to assemble without tools in short time
6. No noise created,energy saving, good environment protection
7.Widely used for stage, concert ,show, banquet, wedding background for rental or fixed installation
8. This cabinet design also suit for indoor P3.91,P4.81,p5.68,P5.95,P6.25,P8.928 and outdoor P5.95,P6.25 and P8.928
P6.25 full Color LED Screen/Curtain Specification |
| Pixel pitch | 6.25mm |
| Pixel Configuration | 1R1G1B |
| LED component | SMD3535 |
| Size of module | 250mm*250mm |
| Resolution of module | 40x40 |
| Size of cabinet | 500mm*1000mm x 70mm |
| Resolution of cabinet | 80x160 |
| Material of Cabinet | Aluminum |
| Weight of Cabinet | 13KGS |
| Brightness | >5500cd/ |
| Density | 25600dots/ |
| Best viewing angle | 140 /140 |
| Pixel Configuration | 1R1G1B |
| Best viewing distance | 6-100M |
| Maximum power consumption | 1000W/ |
| Average power consumption | 550W/ |
| Driving method | 1/10 scan |
| Control method | Synchronization |
| Gray scale | 65536 |
| Colors | 256*256*256 |
| Color temperature | 3200-9300k |
| Uniformity | 97% |
| Working voltage | AC220V/110V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| Working humidity | 10% ~ 90% |
| MTBF | 10,000 hours |
| Frame frequence | 50/60Hz |
| Refresh frequence | >1920Hz |
| IP grade | IP65 |
| Life Span | 100,000 hours |
| Data transafer method | RJ45 |
| Pratical standard | CCC TUV-CE ETL etc. |
Effectivce Communication
Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
PRT OPTOELECTRONIC Co., Ltd is located in Bao'an District of Shenzhen city, specializing in R&D, manufacturing Full Color LED display for outdoor and indoor advertising with many different pixel pitches, and many different design, owned 5 new-automatic production lines and advanced test equipments to control quality ensure high quality. And got the international standard certificates of ISO9001-2000 and 14001, CE, CCC, FCC, RoHS, gurantee high quality!
Our main products include Outdoor LED display, Indoor LED display, Rental LED Display, Stage backbround LED screen, LED Curtain, Sport stadium perimeter LED screen, Mobile LED screen, LED display modules etc. Also supply LED professional stage lights based as customer's requests.
As the growing, we have more than 150 staffs, mostly with rich working experience in this area for many years, and several professional engineers for production and after sale service.
We got a strong team for exporting business, members with rich exporting experience over ten years, to introduce better solutions based on customers' requirements professionally, and guarantee the products to be shipped out in time and smoothly, so we can provide our clients high quality products with competitive prices and excellent service, and have obtained a good reputation from our customers.
Our company's operating philosophy, "Quality is everything, Service is the key to success ", because our purpose is to let business done easily and trustingly, to save customer's searching time and purchase cost, solve problem on customer's position, to let everything to be "PERFECT"(abbreviated to"PRT" )!
PRT is a developing company, need hard work of our staffs, also need your large positive support, let us do business and develop together, "sincere cooperation, mutual benefit and common development" is our principle.
Please send your e-mail to us and call us directly, we will answer you as soon as we can.
