Mattress Computerized Single-Needle Lock Stitch Sewing Machine (HF-DZ-1)

Mattress Computerized Single-Needle Lock Stitch Sewing Machine (HF-DZ-1)
Price: Negotiable/Set
Min Order: 1/Set
Pay Type: L/C,T/T
Mattress Computerized Single-Needle Lock Stitch Sewing Machine(HF-DZ-1)

HF-DZ-1High Speed Computerized Single Needle Quilting Machine is a new high efficiency and high automatic equipment developed by our company. It widely used to sewing many kind of beautiful patterns on the high grade cover of the mattress, bedding, home textile and so on.

Technical Characteristics:
1. Adopt advanced outsize rotary hook for sewing, auto thread-breaking checking and quilting. The presser foot can be adjusted to different thickness.
2. Equipped with high-capacity computer that can deal with various kinds of complicated patterns. Can run by continuous or interval way according to fabric and processing requirement.
3.360 degree-jump quilting, can sew hundreds of patterns, the maximum storage of patterns reaches 200.
4. Equipped with functions such as shift output counting, total output counting, pattern effect display, processing locus display, thread auto-cutting, needle auto-lifting, auto-stop when thread-breakage, etc.
5. Online vectorial angle correction and return parameter correction.
6. Adopt Japan servo motors for controlling ensuring more precision.
7. Low noise, low vibration, stable performance.
8. Special pattern-designing software can be exerted. Scanner-input can also be realized.
9. Auto cloth-feeding, pulling and cutting, Automatical flow, production can be finished once.


Technical Specification:
Quilting  width2350mm
Quilting  thickness≤ 70mm
Needle  model130/21
Stitch  length(2-6)mm
Rotating  speed  of  needle2500Rpm
Capacity(40-120)m/h
Total  power8.8kw
LubricationFully  Automatic  Standard
ControlPLC
Dimension  (L*W*H)8600× 3740× 1900mm
Voltage3-Phase, 380V, 50-60Hz
Gross  weight3500Kg

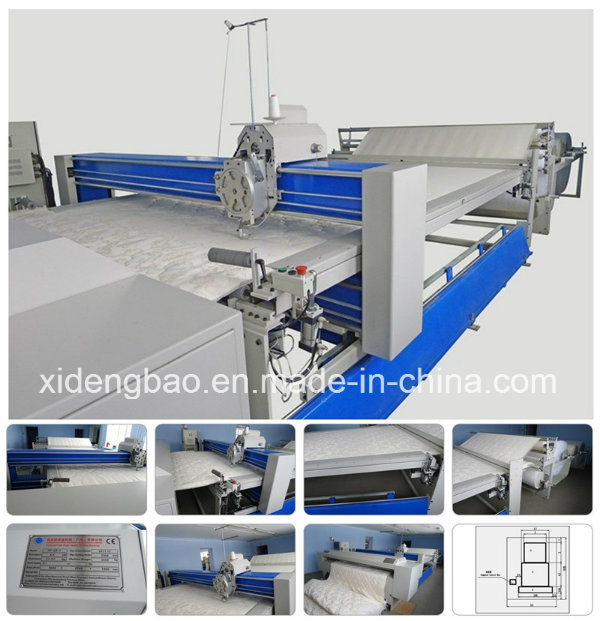

Product Pictures:

After-sale Service:


Company Exhibition:


CONTACT  US:

Tel : 0086-20-26292923, 0086-20-26275665
Fax : 0086-20-26276079
Mobile : 0086-18520519901
Website : http://www.mattressmachinery.net
Address : No.101, Building E, Jintai Industrial Zone, No.28 He long 1st Road, Jiahe Street,
Baiyun District, Guangzhou City, Guangdong Province, China
Prod Model: HF-DZ-1
Quilting Width: Less and Equal to 2350mm
Quilting Thickness: Less and Equal to 70mm
Needle Model: 130/21
Stitch Length: 2-6mm
Rotating Speed Of Needle: 2500rpm
Capacity: 40-120m/H
Total Power: 8.8kw
Overall Dimension: 8600*3740*1900mm
Power Supply: 3 Phase, 380V, 50Hz
Gross Weight: 3500kg
Guangzhou Xidengbao Mattress Machinery Co., Ltd. is a hi-tech enterprise who is specialized in manufacturing mattress machines, At present, the main products are bonnell spring machine, pocket spring machine, LFK spring machine, quilting machine, tape edge machine and mattress packing machine, etc. The company has a land area of 50000 square meters. It has a garden environment, canonical workshops, advanced production equipments, a group of senior engineers and professional developers. We have the ability to fulfill the scientific research, design, production, sales and supply good after service. We have been in this field for more than 20 years, and we are the No. One in this field on the mechanical design, production and the development of the software. All of the products have obtained patent in China. And we have passed ISO9001: 2000 Quality System.

Xidengbao enjoys a high prestige in the world with its high efficiency, easy operation and steady performance. The products have been sold abroad to Asia, Europe, America, Africa and Middle East, etc. They are popular and faithful for the customers.

We are grateful to our customers for their support and loyalty. In return, we will continue to work hard to supply high-quality machines with professional management and post-sale services to our customers.

Our determination is to provide excellent service to our customers.

Our goal is to provide sales support, service support and part support.

Xidengbao continues to work with input from customers so as to continue to make the better machines for the future.

Xidengbao' S focus is to improve customer demands by providing the best quality machines in the world with exceptional service and communication.
