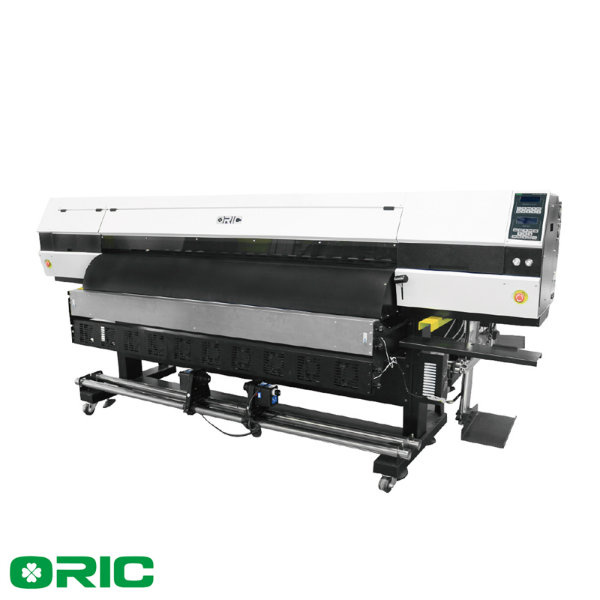

Oric 1 8m Sublimation Printer with Double Dx5 Print Head
| Price: |
US $ 6364/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Specifications:| Model | TX1802-E |
| Printing Technology | Piezoelectric Inkjet |
| Print Head | Dual DX5 Print Heads |
| Acceptable Media Width | 71.6in.(1820mm) |
| Acceptable Media Thickness | Maximum 39mil(1mm) |
| Acceptable Media Weight | 132.2lb.(60kg) |
| Printing Width | 70.8in.(1800mm) |
| Ink Cartridges Types | Dye Sublimation Ink |
| Ink Cartridges Capacity | 4*4 CISS(220ml Ink Cartridge With 1.5L Ink Tank),6*6 CISS(6color),8*8CISS(8color) Optional |
| Ink Cartridges Colors | 4colors(C,M,Y,BK),6colors,8colors |
| Printing Resolution | Maximum 1440dpi |
| Printing Speed 1 | 4pass(720x720dpi):376sqft(35sqm/h) |
| Printing Speed 2 | 6pass(720x1080dpi):258sqft(24sqm/h) |
| Printing Speed 3 | 8pass(720x1440dpi):193sqft(18sqm/h) |
| Media Heating System | Intergrated Post Heater & Infrared Dryer & Fan System |
| Interface | USB 2.0 |
| Power Supply | AC 220v+-10%, 50/60HZ |
| Dimensions(With Stand) | 125.3(W)X38.1(D)X54.5(H)in. |
| | 3213(W)X970(D)X1388(H)mm |
| Weight(With Stand) | 882lb.(400kg) |
| Package Dimensions | Entirety Packing: 132.8(W)X45.2(D)X62.3(H)in. 3880(W)X1150(D)X1610(H)mm |
| | Split Packing:132.1(W)X40.1(D)X40.1(H)in. 3360(W)X1020(D)X1020(H)mm |
| Package Weight | Entirety Packing:1102.5lb(500kg) |
| | Split Packing:1058.4lb.(480kg) |
| Environment | Power On: Temperature:59ºF to 90ºF(15ºC To 32ºC)Humidity:35 to 80% |
| | Power Off: Temperature:41ºF To 104ºF(5ºC To 40ºC)Humidity:20 To 80% |
Features:
1. Independent Research of Intelligent Inkjet Technology
This machine use independent research and development of intelligent inkjet technology,
Through intelligent control , it can make a variety of ink droplets of different sizes.It not only can show you the extreme resolution 1200dpi ,but also can accomplish the higher quality compared with the same type machines when it print in low resolution .
2. CISS Guarantee Printing Continuously
Stable continue ink supply system uses special algorithm to ensure the stability of ink supply when printing ,it solves the problem of short of ink because of ink supply.
3. Take-up Device Provide Perfect Experience
ER18 uses material fixed device to complete the process of sublimation paper. It can finish the material axle adjustment , the use of tension stick ensures the material enter into take-up device completely.
4. All-steel manufacturing ,every detail reflects our sincerity.
Cooperate with international brand like THK,IGUS, which lays a foundation for stability and durability.
Our Services:
1. We offer OEM/ODM Service.
2. We are integrated industrial and trade enterprises, We can offer the best ?international trading service.
3. We have been producing since 2009, Quality is the reason why we can stand on the top of industry, we can ?always give you the best quality control.
4. Fast delivery, We have plenteous production lines and scientific production management system to ensure the delivery time.
5. We have professional team working for overseas trading, which can save more of your valuable time.
Advantages:
Multiple Ink Combinations Gives the Perfect Expression about Image. Support multicolor-printing, besides CMYK four colors, LC and LM can be equipped to enhance the natural color transition, make high recognition to similar colors , and LLK increases controllability and sense of depth to printing colors.
Independent research of intelligent inkjet technology. This machine use independent research and development of intelligent inkjet technology,Through intelligent control ,it can make a variety of ink droplets of different sizes.It not only can show you the extreme resolution 1200dpi ,but also can accomplish the higher quality compared with the same type machines when it print in low resolution .
Variety Of Ink Configuration Show Perfect Performance. Supports variety of ink configuration ,It is equipped with color Lc and Lm to increase the color natural transition and improvethe recognition rate of similar color in the image beside C M Y L. Also , Lk and Lik can increase color control and sense of hierarchy.
Take-up Device Provide Perfect Experience. Use material fixed device to complete the process of sublimation paper. It can finish the material axle adjustment , the use of tension stick ensures the material enter into take-up device completely.
Wide application:
1.Printing on polyester and polymmid(Lycra, Nylon)fabrics used in sportswear and outdoor wear in general.
2.Printing on mixed synthetic fabrics(min 60% of synthetic fibres) used in sportswear and outdoor wear in general.
3.Printing on plastic substrates used in the manufacturing of sport equipment such as ski, snowboard, skateboard, windsurf, etc
4.Printing on every substrates (wood, cermics, glass) overprinted with polyester-based or polyammid-based coatings.
FEATURES AT A GLANCE
1.Superior Quality - predictable and consistent colour at resolutions up to 1440dpi
2.Superior Reliability -we can provide you with one year warranty
3.Superior Flexibility -large format suit a wide range of the size of sublimation paper
4.High Productivity - sellable production at up to 40m2/hr
5.Ultra-Low Running Costs - designed to minimise operator involvement, extremely low power consumption
6.Easy to Operate - all front-loaded consumables, upgraded easy-fill tank system
7.Easy to Install - with flexible USB & high speed Ethernet networking
Why Choosing Us?
1. Strict Quality Control: We have over 10 workers cooperating on Quality control both for the original Material and finished Goods. QC before delivery is also what we need for each order.
2. One stop Solution: We offer a wide range of sublimation paper, dye sublimation ink and Blanks. Making you able to source all the items you need.
3. Reasonable Pricing: We run our own coating factory and Heat Press Machine assembling Workshop, thus to offer the most reasonable pricing and give the most profit to our clients.
4. Fast Delivery: We offer one week delivery for most paper orders. And 2-3 weeks production lead time for other sublimation inks.
5. Responsible after sale service: As a responsible company, we never make any exercise for mistakes, clients comes first, any complaint is supposed to be settled in a responsible manner.
Nanjing Fei Yue Paper Industrial Co., LTD
Tel: 86-25-83228884
Fax: 86-25-83228894
Web: www.feiyuepaper.com
| Prod Model: |
ORIC |
| Printing Technology: |
Piezoelectric Inkjet |
| Ink Color: |
4 Colors, 6 Colors, 8 Colors Optional |
| Power Supply: |
AC 220V+-10%, 50/60Hz |
| Printhead: |
Double Dx-5 Printheads |
| Printing Width: |
1.8m |
| Printing Resolution: |
Maximum 1440dpi |
| Interface: |
USB 2.0 |
| Weight: |
882lb. (400kg) |
| Structure: |
Rotary Letterpress |
| Color & Page: |
Multi-Colour Printing Press |
| Printing Interface: |
USB2.0 |
| System Supported: |
Windows2000 |
| Plate: |
Sublimation Printing |
| Printing Speed: |
4pass(720X720dpi):753sqft(35sqm/H) |
FeiYue Paper is a leading manufacturer of coated speciality papers in China. The company, which was founded in 2007, has a factory in SuZhou, trade compangy in NanJing and a global sales network.
Fei Yue Paper Inc specialized in manufacturing kinds of thermal transfer paper and print media.
Our main products including sublimation printing equipments and supplies such as sublimation transfer paper, inkjet sublimation inks, sublimation printers, heat press machines and transfer paper for cottons.
Sublimation is a type of phase transition, or a change in a state of matter, just like melting, freezing, and evaporation. Through sublimation, a substance changes from a solid to a gas without ever passing through a liquid phase. Dry ice, solid CO2, provides a common example of sublimation.
This is exactly what happens in sublimation printing. A sublimation printer prints the ink on a specially coated paper. The ink dries and turns into a solid. When heat and pressure is applied to the sublimation inks on the paper, it quickly turns to gas and is forced into the polyester substrate. When heat is taken away, the gas becomes trapped in the polyester permanently.
Dye Sublimation, as a process is really very simple. It is the method of applying an image to specially coated ceramics, metals and polyester cloth, using three main ingredients: Sublimation ink, heat and pressure. FeiYue Paper offer you one-stop sublimation printing service. The above mentioned devices and consumables can all be purchased in a single package to make it simpler for new users. We make it easy and fast for you to get your business up and running and ready for growth!
We committed to one-stop sublimation transfer printing solutions.
We run our own coating factory and heat press machine assembling workshop, thus to offer the most reasonable pricing and give the most profit to our clients.

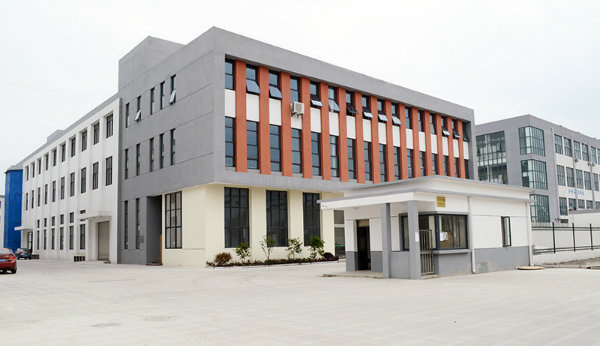

Our factory covers 15000 square meters, and the fixed assets have reached of 40 million Yuan.
