| Prod Model: |
P10.416 LED curtain |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Panel Size: |
500*1000*68mm |
| Operating Voltage: |
AC100V±10% or 220V ±10%; 50~60Hz |
| Net Weight: |
About 12 Kg/ Panels |
| Whole Display Flatness: |
>0.2mm Juncture |
| Refresh Rate: |
>1920Hz /S |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
300W / m² |
| Pixel Density: |
10000 dot / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Application: |
Stage Performance |
| Certification: |
CCC |
Product Description
Welcome to come to our Amazing product------P10.416 HD LED Curtain Display. It is brand new in this field as it is really versatile,
Because:
1) it can be used both outdoors and indoors, daytime and evening due-to that it is waterproof and high brightness by using SMD 3535 LED lamp.
2) Can work as stage main screen and LED curtain
3) You can just put it on ground, no need other structure (base), can save much work and costs.
4) Besides, the material of cabinet is die-casting aluminum, very strong and precise, ultra-thin and light weight, easy to assemble and dismantle.
5) Some clients like it also because the size of cabinet is 500MM*1000MM, easy to calculate the size of screen.
| Item | P10.416 LED curtain display |
| Pixel pitch | mm |
| Pixel density | 9216 Pixels/sqm |
| Pixel configuration | 1Red 1Green 1Blue |
| LED lamp type | SMD3535 |
| Cabinet size(W*H*D) | 500 mm(Width)*1000 mm(Height) |
| Cabinet resolution | 48 Pixels*96 Pixels |
| View angle(H/V) | 160/140 degree |
| Brightness (White balance) | ≥4500cd/sqm. |
| Power consumption(one cabinet) | 300W/pcs |
| Input Voltage | AC85-265 V |
| Crust Material | metal |
| Net weight | 10Kg / pcs |
| Operating temperature | -20°C----+50°C |
| Light transmittance | 98% |
| Operating humidity | 10%_95%RH |
| Life time | ≥100,000hours |
| MTBF | 5,000 hours |
| Whole Display Flatness | ≤0.5mm Juncture |
| Frame frequency | >60 Hz/s |
| Refresh rate | ≥1500Hz /s |
| Control distance | 100m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
| Power | 110V/220V±15% 50--60Hz |
| Control Model | SD Card Control System/LED Flash Computer Control System |
| Operating system | Windows 2000 / Windows Xp / Windows 7 |
| Protections | IP65 |
| Isolating Grade | CLASSE II |

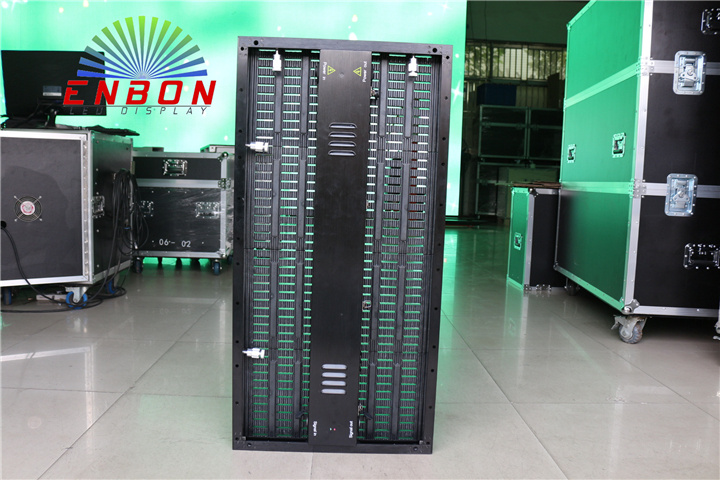

| Maintenance way | Rear Access |
| Accepting signal with video processor | lighting effects, words, graphics, flashes, videos, etc. |
Product details:
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 8, 000 square meters, with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.
AlllouruproductsthavevpassedeCECEFCCCandnRoHSHcertificateses70%0ofoouruproductstarerforoexportrandngoodsdarerexportedetotovere808countriesesWeWareranaLEDEcompanynyouocanacountnonoforogoodoqualitytandncompetitivevpricingngBesidesesyouocanaalsosexpectcexcellentnprersalelesellingnandnafteresalelservicesehererewhichccontainsnprofessionalaconsultationonfreeetrainingngfreeedrawingsgsinstallationoandn2 yearsrwarrantytyWeWwilllinspectcouruproductstinstalledeinidomesticimarketeperiodicallyly.
EnbonoisiequipedewithtadvancedemachinesesuchcasaAutomatedePickc& PlacecmachineneHighgSpeedeSMTMTWavevPeakaSolderingnmachineneReflowoSolderingnMachineneHighg& lowoTemperaturerAgingnroomomVibrationotestererWaterproofotestererAntitstatici& dustsfreeeworkshopoetctcModernrautomaticiequipmentntogetherewithtouruinnovativevengineersrsdedicatedeworkersrandnexperiencedesaleseandnserviceseteamamwe'rerthehrighthsuppliereyouocanatrustsforogoodosolutionsnforoalllyouruLEDEdisplayaprojectsts.
Contactcusuforoanaofferetoday!yOuruteamawilllrespondnini1 workingndayayWeWlookoforwardrtotbebyourugoodopartnereandngrowotogether!r
