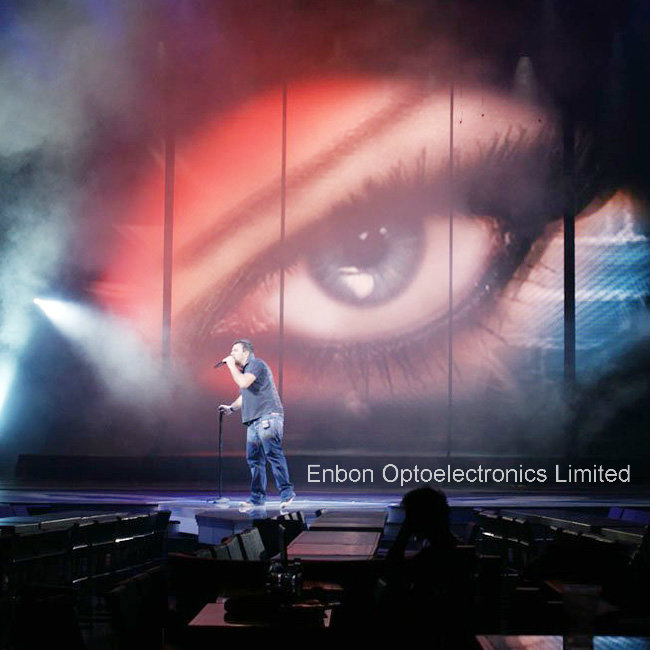

ENBON LED curtain can show clear video as wel as amazing lighting effect to create fantastic stage. It's High transparency LED video curtain for wind load and display amazing effect of transparence, lighting flashing, making the stage and people merging into the whole. It's always been an indispensable part of modern stages. It can be used both outdoors and indoors.
Features:
1. High brightness, over 4000nits, can be used both outdoor and inoor, daytime and evening
2. SMD3535 LED, wide viewing angle up to 140 degree,
3. Waterproof: IP65, no problem to work even it's raining.
4. High transparency, can create amazing
5. Long viewing distance, nice apperance
6. High refresh over 2500Hz/s, no scan when taken photo.
7. Ultra-thin and super-light, easy to install and dismantle
8. With fast locks on all sides
ENBON LED curtain with durable fresh color and high brightness by adopting high quality LEDs;
SMD LED screen outdoor mesh with energy saving 24% by using high efficiency IC driver and improved PCB design;
Application
Outdoor stage background, outdoor screen wall for a great campaign, ceremony and other activities.
| Model | P10.416 LED mesh curtain outdoor |
| Pixel pitch | 10.416mm |
| Pixel density | 9,216 dots /sqm |
| Module size(W*H) | 250 mm(width)*250 mm(height) |
| Module pixels(W*H) | 24 dots *24 dots |
| Pixel configuration | 1Red 1Green 1Blue |
| Drive mode | constant current driving 1/4 scan |
| LED lamp type | SMD3535 |
| Cabinet size(W*H*D) | 500mm*1000mm |
| Color scale | 65,536 degree |
| View angle(H/V) | 140/120 degree |
| Brightness (White balance) | about 5,000 nits |
| Power consumption(one cabinet) | Max:300W / cabinet , Average: 120W / cabinet |
| Net weight | 12Kg / cabinet |
| Operating temperature | -30°C----+60°C |
| Operating humidity | 10%-95%RH |
| Life time | ≥100,000hours |
| MTBF | 5,000 hours |
| Whole Display Flatness | ≤0.5mm Juncture |
| Frame frequency | 25-60 Hz/s |
| Refresh rate | ≥2,500Hz /s |
| Control distance | 100m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
| Inputting voltage | 90-264VAC 47--63Hz |
| LED control system | LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable |
| Operating system | Windows 2000 / Windows Xp / Windows 7 / windows 8 /8.1 / windows 10 |
| Protections for outdoor display | IP65 |
| Maintenance way | Rear Access |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 8, 000 square meters, with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.
AlllouruproductsthavevpassedeCECEFCCCandnRoHSHcertificateses70%0ofoouruproductstarerforoexportrandngoodsdarerexportedetotovere808countriesesWeWareranaLEDEcompanynyouocanacountnonoforogoodoqualitytandncompetitivevpricingngBesidesesyouocanaalsosexpectcexcellentnprersalelesellingnandnafteresalelservicesehererewhichccontainsnprofessionalaconsultationonfreeetrainingngfreeedrawingsgsinstallationoandn2 yearsrwarrantytyWeWwilllinspectcouruproductstinstalledeinidomesticimarketeperiodicallyly.
EnbonoisiequipedewithtadvancedemachinesesuchcasaAutomatedePickc& PlacecmachineneHighgSpeedeSMTMTWavevPeakaSolderingnmachineneReflowoSolderingnMachineneHighg& lowoTemperaturerAgingnroomomVibrationotestererWaterproofotestererAntitstatici& dustsfreeeworkshopoetctcModernrautomaticiequipmentntogetherewithtouruinnovativevengineersrsdedicatedeworkersrandnexperiencedesaleseandnserviceseteamamwe'rerthehrighthsuppliereyouocanatrustsforogoodosolutionsnforoalllyouruLEDEdisplayaprojectsts.
Contactcusuforoanaofferetoday!yOuruteamawilllrespondnini1 workingndayayWeWlookoforwardrtotbebyourugoodopartnereandngrowotogether!r
