P10 mm Indoor Video LED Curtain with High Lighting Transparency
Price: |
US $ 700-900/Square Meter |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Square Meter |
Pay Type: |
L/C,T/T,Western Union |

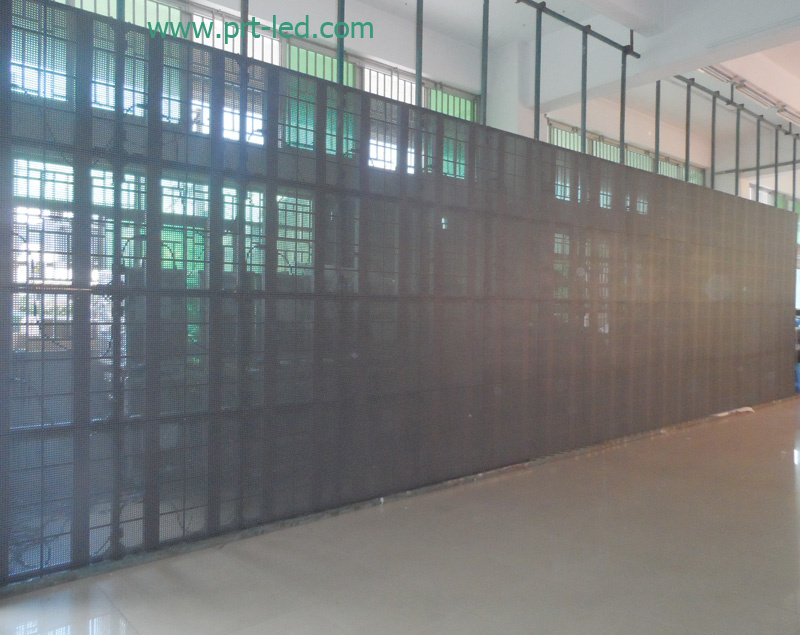

P10mm led mesh curtain for indoor display with good light transmission and light weight, better for stage background screen and window screen
Product Features:
1. SMD led encapsulation confirm wide view angle
2. Mesh design for good heat dissipation and good light transmission
3. High definition,smooth and good quality vision

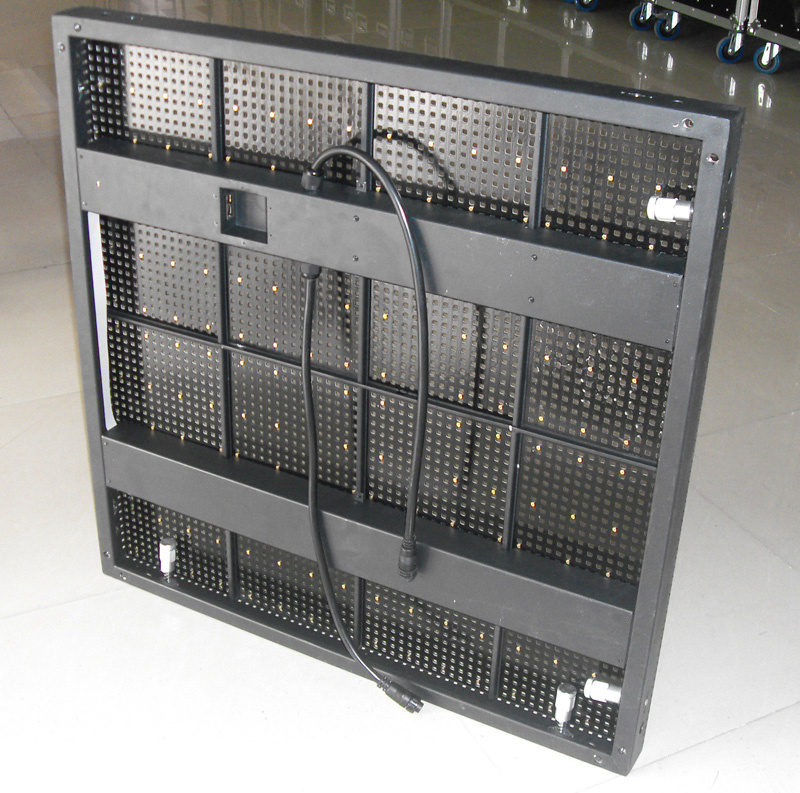

4. Aluminum cabinets ensure lower weight and lasting,anti-rust,long life time
5. New rotary lock and lifting structure,make instant install available

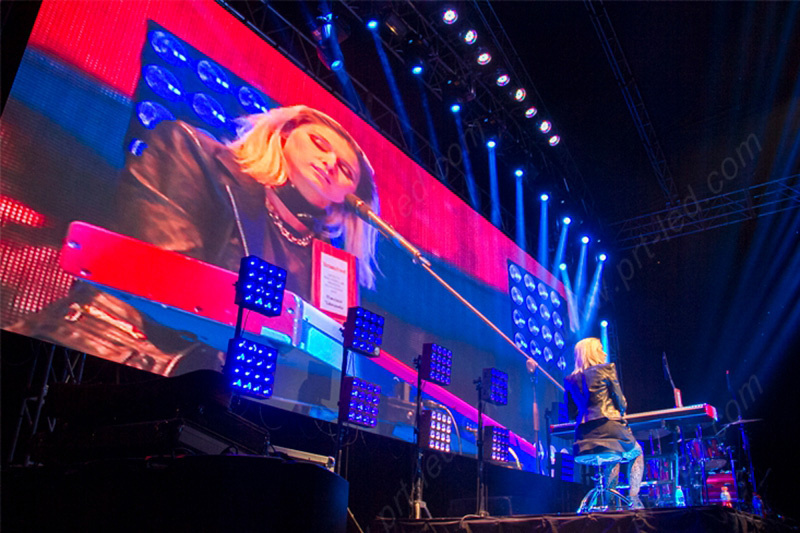

6. Can be fixed installation or for rental to meet the request of live broadcast, live meeting, banquet, party, stage etc
7. Widely used for commercial led display, stage led display,rental led display

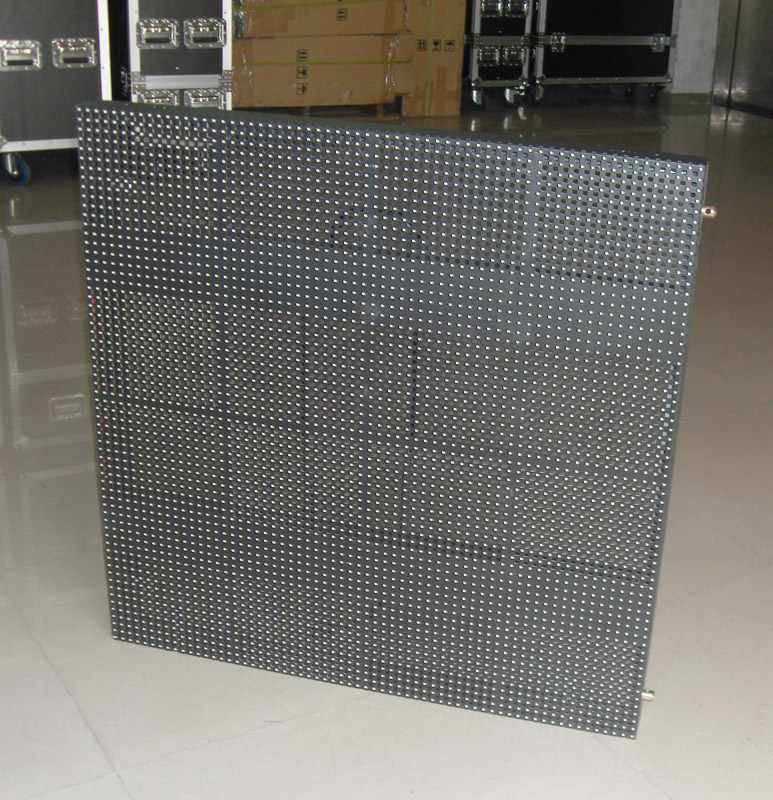

8.Cabinet size can be 640x640mm,400x800mm or 800x800mm as requestMore pictures for reference:
P10 Indoor full Color led mesh curtain |
Pixel pitch | 10mm |
Pixel Configuration | 1R1G1B |
LED component | SMD3528 |
Size of module | 320mm x 320mm |
Resolution of module | 32x32 |
Size of cabinet | 640mmx 640mm |
Resolution of cabinet | 64x64 |
Material of Cabinet | Aluminum |
Weight of Cabinet | <6.5KGS |
Brightness | >4500cd/sq.m |
Density | 10000dots/sq.m |
Best viewing angle | 140 /140 |
Best viewing distance | 10-100M |
Maximum power consumption | <600W/sq.m |
Average power consumption | <200W/sq.m |
Driving method | 1/8 scan |
Control method | Synchronization |
Gray scale | 65536 |
Colors | 256*256*256 |
Color temperature | 3200-9300k |
Uniformity | 97% |
Working voltage | AC220V±10% |
Working temperature | -20ºC~+50ºC±10% |
Working humidity | 10% ~ 90% |
MTBF | 10,000 hours |
Frame frequence | 50/60Hz |
Refresh frequence | >1500Hz |
IP grade | IP43 |
Life Span | 100,000 hours |
Data transafer method | RJ45 |
Pratical standard | CCC TUV-CE ETL etc. |
Effectivce Communication Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM |
Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
Prod Model: |
P10-IR |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
LED Encapsulation: |
SMD3528 |
Module Size: |
200X400mm |
Cabinet Size: |
800X800mm |
Cabinet Material: |
Aluminum Alloy |
Tube Chip Color: |
Full Color |
Display Function: |
Video Display |
Pixel Pitch: |
10mm |
Pixel Configuration: |
1R,1G,1B |
Display Type: |
LED Video Display |
Application: |
Shopping Guide |
IP Rating: |
IP43 |
Certification: |
CCC |
Pixel Density: |
10000dots/Sq.M |
Scanning Mode: |
1/5 Scan |
System Operating Platform: |
Win XP,Win 2000 |
PRT OPTOELECTRONIC Co., Ltd is located in Bao'an District of Shenzhen city, specializing in R&D, manufacturing Full Color LED display for outdoor and indoor advertising with many different pixel pitches, and many different design, owned 5 new-automatic production lines and advanced test equipments to control quality ensure high quality. And got the international standard certificates of ISO9001-2000 and 14001, CE, CCC, FCC, RoHS, gurantee high quality!
Our main products include Outdoor LED display, Indoor LED display, Rental LED Display, Stage backbround LED screen, LED Curtain, Sport stadium perimeter LED screen, Mobile LED screen, LED display modules etc. Also supply LED professional stage lights based as customer's requests.
As the growing, we have more than 150 staffs, mostly with rich working experience in this area for many years, and several professional engineers for production and after sale service.
We got a strong team for exporting business, members with rich exporting experience over ten years, to introduce better solutions based on customers' requirements professionally, and guarantee the products to be shipped out in time and smoothly, so we can provide our clients high quality products with competitive prices and excellent service, and have obtained a good reputation from our customers.
Our company's operating philosophy, "Quality is everything, Service is the key to success ", because our purpose is to let business done easily and trustingly, to save customer's searching time and purchase cost, solve problem on customer's position, to let everything to be "PERFECT"(abbreviated to"PRT" )!
PRT is a developing company, need hard work of our staffs, also need your large positive support, let us do business and develop together, "sincere cooperation, mutual benefit and common development" is our principle.
Please send your e-mail to us and call us directly, we will answer you as soon as we can.
