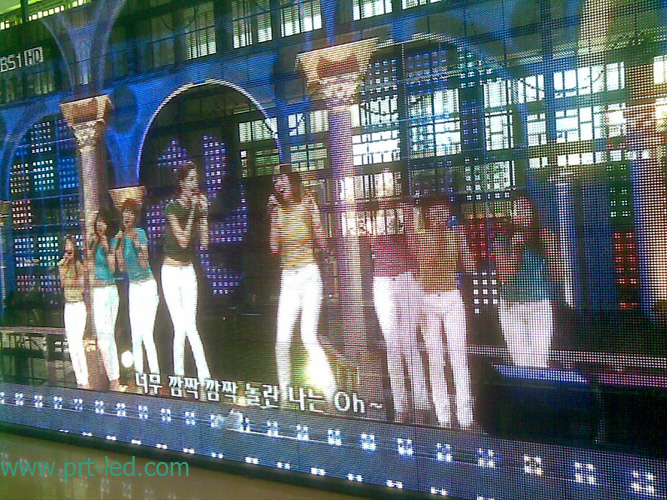

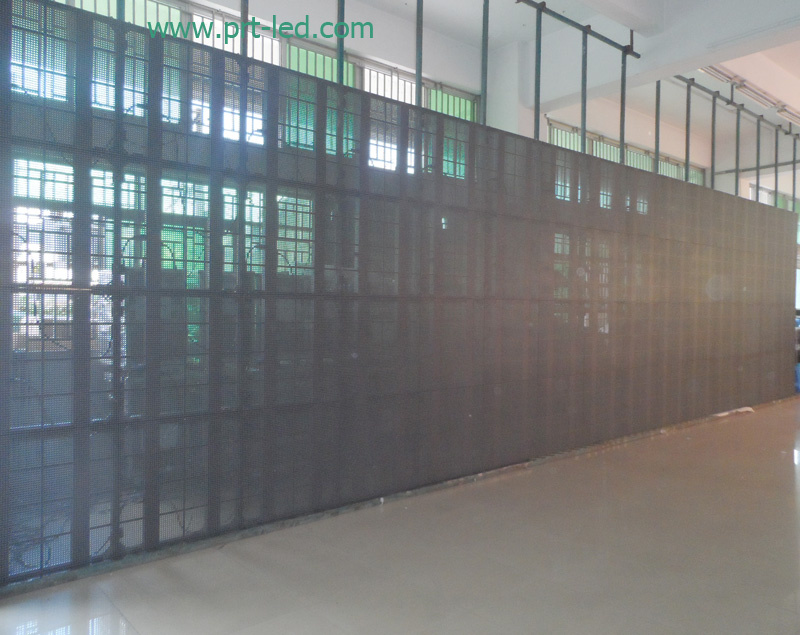

P12.5 Full Color LED Video Curtain with High Light Transmittance
| Price: |
US $ 600-800/Square Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T,Western Union |
P12.5 Full Color LED Video Curtain with mesh configuration for good light strasmittance, for indoor rental or fixed install, made with aluminum material with good heat dissipation and light weightProduct advantages:1.SMD led encapsulation confirm wide view angle
2.Mesh design for good heat dissipation and good light transmission
3.High definition,smooth and good quality vision
4.Aluminum cabinets ensure lower weight and lasting
5.New rotary lock and lifting structure,make instant install available
6.Can be fixed installation or for rental to meet the request of live broadcast, live meeting, banquet, party, stage etcMore led mesh curtain panels for reference:
| P12.5 Indoor full Color LED Mesh Screen Specification |
| Pixel pitch | 12.5mm |
| Pixel Configuration | 1R1G1B |
| LED component | SMD3528 |
| Size of module | 200mm x 400mm |
| Resolution of module | 16x32 |
| Size of cabinet | 800x800mm/400mm x 800mm x 60mm |
| Resolution of cabinet | 64x64/ 32x64 |
| Material of Cabinet | Aluminum profile |
| Weight of Cabinet | <10KGS |
| Brightness | >2500cd/sq.m |
| Density | 6400dots/sq.m |
| Best viewing angle | 140 /140 |
| Best viewing distance | 10-100M |
| Maximum power consumption | <500W/sq.m |
| Average power consumption | <220W/sq.m |
| Driving method | 1/8 Scan |
| Control method | Synchronization |
| Gray scale | 65536 |
| Colors | 256 x 256 x 256 |
| Color temperature | 3200-9300k |
| Uniformity | 97% |
| Working voltage | AC220V/110V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| Working humidity | 10% ~ 90% |
| MTBF | 10,000 hours |
| Frame frequence | 50/60Hz |
| Refresh frequence | >1500Hz |
| IP grade | IP31 |
| Life Span | 100,000 hours |
| Data transafer method | RJ45 |
| Pratical standard | CCC TUV-CE ETL etc. |
Effectivce Communication
Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
| Prod Model: |
P12.5 indoor |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Encapsulation: |
SMD3528 |
| Module Size: |
400X200mm |
| Cabinet Size: |
800X800mm |
| Best View Distance: |
10~50m |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Configuration: |
1R,1G,1B |
| Scanning Mode: |
1/8 Scan |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| IP Rating: |
IP43 |
| Certification: |
CCC |
| Pixel Pitch: |
12.5mm |
| Pixel Density: |
6400dots/Sq.M |
| System Operating Platform: |
Win XP,Win 2000,98,Win7/8 |
