| Prod Model: |
P6-soft led screen |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Encapsulation: |
SMD3528 |
| Best View Distance: |
>5m |
| Module Size: |
288X120mm |
| Module Resolution: |
48X20dots |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Pitch: |
6mm |
| Pixel Configuration: |
1R,1G,1B |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| Certification: |
CCC |
| Pixel Density: |
27777dots/Sq.M |
| Scanning Mode: |
1/10 Scan |
| System Operating Platform: |
Win XP,Win 2000 |
| IP Rating: |
IP64 |
Product Description

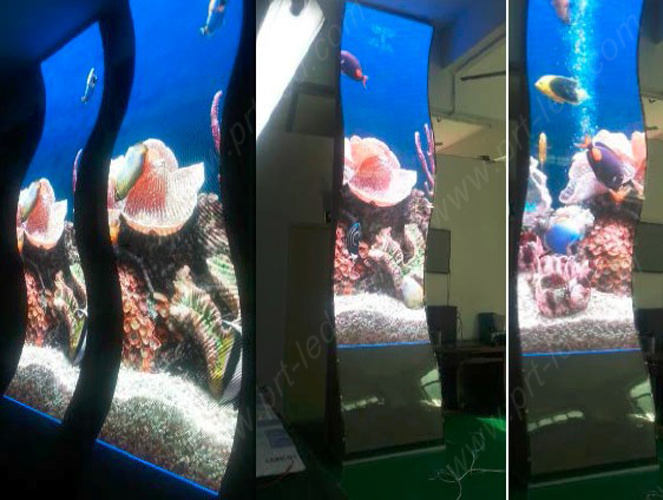

P6 Indoor Soft LED Curtain made with soft/flexible modules,to be different abnormal shaped led screen
Product Features:
1.Can be many different abnormal shapes with magnets and custom-made frames
2. SMD led encapsulation confirm wide view angle and light weight
3. High definition, Good uniformity
4. Can be fixed installation or for rental to meet the request of live broadcast, live meeting, banquet, party, etc
5. Widely used for commercial led display, advertising led display, stage led display, rental led display
| Item | Parameter |
|
| Pixel | Physical pixel pitch: 6 mm |
| Pixel configuration: 1R1PG1PB |
| Chip | Wave | Brightness | Packing |
| R | Opto | 620-623nm | 400mcd | SMD-3528 |
| G | Silan | 520+/_1nm | 1000mcd | SMD-3528 |
| B | Silan | 470+/_1nm | 200mcd | SMD-3528 |
| Module | Module resolution: 48X20 pixels |
|
| Module size: 288X120 mm |
| Electricity parameter | Brightness: ≥1500 nits |
| Brightness adjusted: 100 grade by software, or by Auto-optic induced |
| Color processing: 14bit |
| Display color: 4.4 trillion |
| Color temperature(k): 5000 - 9500 (choice by user) |
| Physical density: 27777 pixels/m2 |
| Whole display flatness: ≤ 1mm juncture |
| Best view distance: ≥ 5m |
| Best view angle: Horizontal ±80°, Vertical ±80° |
| Storage temperature: -35ºC ~ +85ºC Working temperature: -20ºC ~ +50ºC |
| Driving method: Constant driving current Scan: 1/10 |
| Refresh frequency: ≥ 800Hz |
| Frame rate: ≥ 60Hz |
| Humidity(RH): ≤ 90~95% |
| Protection grade: IP64 |
| Working Voltage: DC 5V |
| Power supply: AC 110 / 220V, 50/60Hz |
| Average power consumption: 400w/m2 |
| Max power consumption:800w/m2 |
| MTBF: 10, 000 hours |
| Screen lifetime: 100, 000 hours |
| Control system | Signal interface: DVI |
| Communication distance: Internet cable: ≤120m / Fiber cable: 1000m |
| Signal transfer mode: Pixels to pixels display synchronized |
