Table Printing Silk Screen Mesh

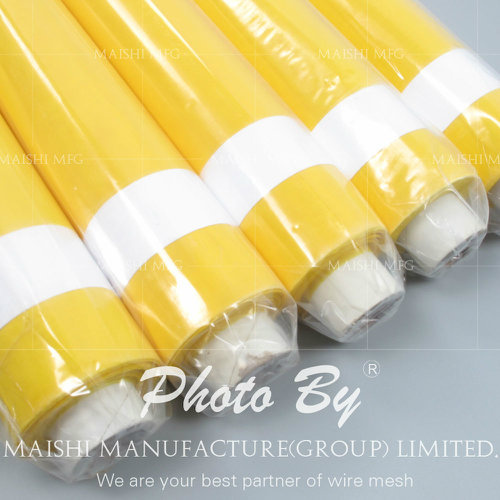

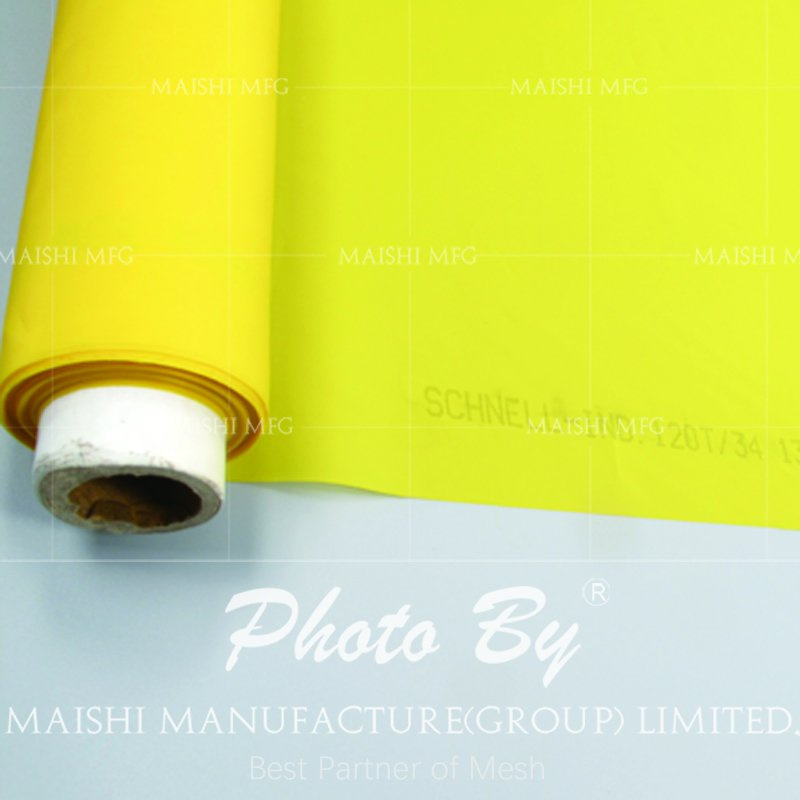

Table printing silk screen mesh
(High Tension, Low Elongation)



Characteristics: Most competitive price, high quality, low elongation and high tension strength
Color: yellow, white
Width: 0.6m-3.6m
Length per roll: 30m, 50m, 30yard, 60yard or by customer's request

Mainly market: Our mesh sells good to all around the world. Such as North America (USA, Canada, Mexico), South America( Braizil, Chile, Argentina, Peru etc.), European country (Germany, France, Italy,Poland, etc.), Asia (UAE, Iran, Thailand, Turkey, Pakistan, Bangladesh etc. )









Full Mesh Specifications of MAISHI GROUP:

TYPE	MEHS COUNT	APERTURE	THREAD DIAMETER	OPENING	THICKNESS	INK THROUGH VOLUME THEORETICALLY	TENSILE STRENGTH
	Mesh/inch	Micron	Micron	%	Micron	Cm3/m2	N/cm
6-400	15	1300	400	65	780-810	560	110
8-300	20	970	300	58	550-580	406	100
10-250	25	700	250	49	508-518	355	85
12-140	30	700	140	69	250-260	380	50
12-250	30	610	250	53	495-505	305	90
15-250	38	467	250	49	489-501	213	83
18-150	45	410	150	53	255-275	138	60
21-80	55	378	80	68	125-140	125	36
21-150	55	330	150	46	250-260	123	55
24-100	60	316	100	57	188-195	109	49
24-120	60	303	120	51	230-240	104	51
32-80	80	237	80	55	120-130	110	40
30-120	75	213	120	41	205-210	102	52
32-100	80	212	100	46	160-170	69	48.5
36-80	90	202	80	51	145-150	70	45
36-90	90	185	90	45	155-165	65	49
36-100	90	182	100	41	175-185	60	51
39-55	100	195	55	56	76-83	55	24
39-80	100	176	80	48	125-135	73	31
43-80	110	147	80	40.8	118-125	53	31
47-55	120	152	55	51	88-96	47.6	29
48-70	120	135	70	41	108-120	45.5	30
53-48	135	139	48	55	85-90	48	26
53-55	135	128	55	47	88-96	44.5	29
54-64	137	115	64	38.5	85-95	38.9	30
54-70	137	108	70	34	108-120	40	31
58-55	145	118	55	38	89-94	39.5	30
59-55	150	114	55	45	85-90	38	30
61-48	155	115	48	49	76-83	41	30
62-64	155	105	64	42	115-125	33	31
64-45	160	105	48	43	73-82	36.5	28
64-55	160	98	55	38	95-99	36.1	30
64-64	160	88	64	30	100-110	30.7	31
68-55	175	85	55	34	85-95	29.2	30
68-64	175	78	64	29	108-110	32.0	32
72-48	180	90	48	36	68-75	33.1	28
72-55	180	86	55	37	95-105	32.2	33
77-48	195	81	48	34	80-85	29.0	28
77-55	195	75	55	28	86-92	26.6	29
80-48	200	72	48	33	75-84	28.7	27
90-48	230	56	48	25	70-80	23.5	25
100-40	250	58	40	37	66-73	21.3	28.5
110-40	280	52	40	33	68-75	20.5	29.6
120-31	305	49	31	36	60-64	19.5	29
120-34	305	45	34	30.5	60-70	18.4	30.5
120-40	305	37	40	21	65-67	13.5	32
130-34	330	42	34	30	50-55	16.5	31
140-34	355	31	34	19.5	52-58	14.4	31
150-31	380	36	31	29	47-50	13.1	30.5
150-34	380	30	34	20.5	48-53	14.9	30.5
165-31	420	31	31	22.5	42-48	12.5	28.9

Packing: A: Folded the mesh each roll and then in carton. Suit for little quantity.
         B: With paper tube inside each roll and then in cartons. Suit for large quantity.

Factory Show:
· Dedicated and experienced weavers.
· Consistent quality products.
· On-time delivery.
· We have 15 R&D technical staffs,with more than 10 years experience.
· 80% repeat customers.
· Reasonable claim refund system.


Hebei maishi EXCELLENT SERVICE:

1) Samples sending: We can send you 2m samples freely for each size or at your request.
2) Delivery time: We always have stocks about 200-500m for 150T-31  380 mesh. So, we can delivery the goods within a short time.
3) Guarantee: The goods can be returned us or we ship extra mesh with your new order if you met problem of our mesh.
