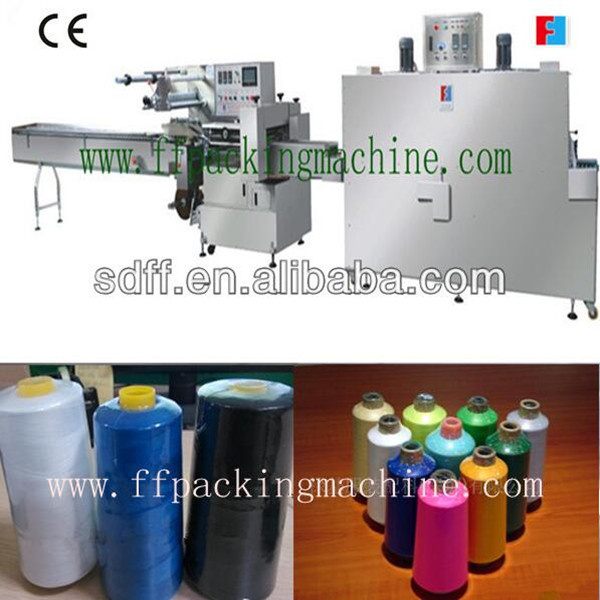

Full Automatic Sewing Thread Heat Shrink Wrapping Machine

Prod Model:	FFB
Service After Sale:	Engineers Available to Service Overseas
Material:	Carbon Steel, 304 Stainless Steel
Delivery Time:	25working Days
Warranty:	1 Year
Lifetime:	Over 10 Years
Application:	Medical
Packaging Materials:	Film

Product Description

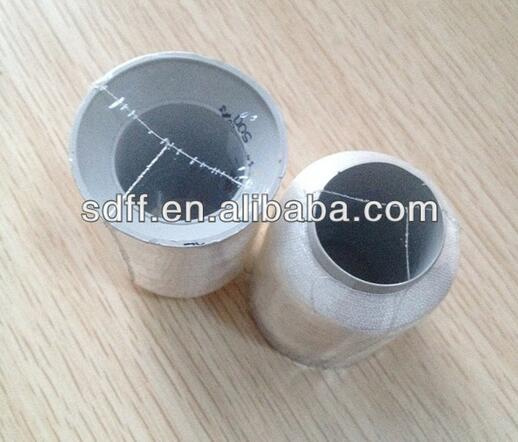

Full Automatic Sewing thread spool heat shrink wrapping machine

Qingdao Feifan Packing Machinery Co., Ltd. can offer all kinds of packaging machine with cheap price and high quality

1. 24years experience
2. Based Japan TOKIVA technology
3. Servo motor control
4. Touch screen,PLC control




Application: Shrink Wrapping Packaging Machine(FFB model) is suitable for packing sewing thread, books, magazines, bowls or barrels of convenience food, fruit, milk tea, fine dried noodle, slice buns, tableware (one-time disinfection tableware), several yoghurt cup, toothpaste, cosmetics, mosquito-repellent incense, batteries, and outer heat shrinkable packaging.

Feature of automatic sewing thread shrink wrapping machine:
1. Servo motor with high control precision realizedstep-less control and dynamic adjustment during operation.
2. Large color touch screen store, pick up, automatically adjust, track, find cutting point, alarm, indicate barriers, accumulatively count packs, bag length and speed automatic display, which can realize precise cut and seal.
3. With photo-cell detecting the color mark and dual-tracing system, this machine can effectively eliminate any packing error and avoid materials waste.
4. New type vertical sealing design makes the seal at low temperature, which effectively reduces the film burning and packing wastes.
5. Adjustable bag former and pitches enable the change of packing products more conveniently.
6. With timing belt transmission, this machine has appearance, lower noise and less shake.
7. Double temperature area in shrink stove can achieve automatic temperature control.
8. Efficient air circulation ensures the quality of contraction. 9. Redundant film resection and recovery device.

Paramter of automatic sewing thread shrink wrapping machine

FFB Parameter		FFB4512	FFB4515	FFB4518	FFB5912	FFB5915	FFB5918	FFB5921
Max film width(mm)		450	450	450	590	590	590	590
Pack speed(bag/min)		30-220	30-150	30-130	30-180	30-150	30-130	30-120
Pack size(mm)	Length	70-450	80-450	90-450	70-450	80-450	90-450	100-450
	Width	10-150	10-150	10-150	10-200	10-200	10-200	10-200
	Height	5-45	5-65	5-85	5-65	5-85	15-120	15-140
Electric Power Voltage(V)		220	220	220	220	220	220	220
Total power(kw)	Packaging machine	3.6	3.6	3.6	4	4	4	4
	Shrink Stove	16.5	16.5	16.5	16.5	16.5	16.5	16.5
Diminsion (mm)  L*W*H	Packaging machine	5700 ×1050×1700	5700 ×1050×1700	5700 ×1050×1700	5700 ×1250×1800	5700 ×1250×1800	5700 ×1250×1800	5700 ×1250×1800
	Shrink Stove	(2400-3000) ×600*1650
Total weight(kg)		1000	1000	1000	1000	1000	1000	1000

Our Service:
1. Guaranty: One Year
2. One set of tool kits will be provided with the machine.
3. Before delivery, we will adjust the machine to fit for your product.
4. Any question, you can mail/call us at any time. And our most experienced engineers are assigned to give consulting service, and always available for dispatching abroad.
5.Manual is in English.

Why Choose Us?
1.We are one of the biggest manufacturers on packing machines in China
2.We have more than 20years experience on manufacturing and exporting.
3.We have the excellent quality control.
4.We have the competitive price.
5.We have the completed sales and service team so that we can offer the best service
