| Prod Model: |
FFB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
5700*1250*1700 |
| Colour: |
Gray |
| Material: |
Carbon Steel |
| Applications: |
Shrink Packing Machine |
| Automatic Grade: |
Automatic |
| Driven Type: |
Electric |
| Material Type: |
Solid |
| Packaging Material: |
Film |
| Application: |
Industrial Product |
| Forming Species: |
Film |
| Packaging Type: |
Film |
Product Description

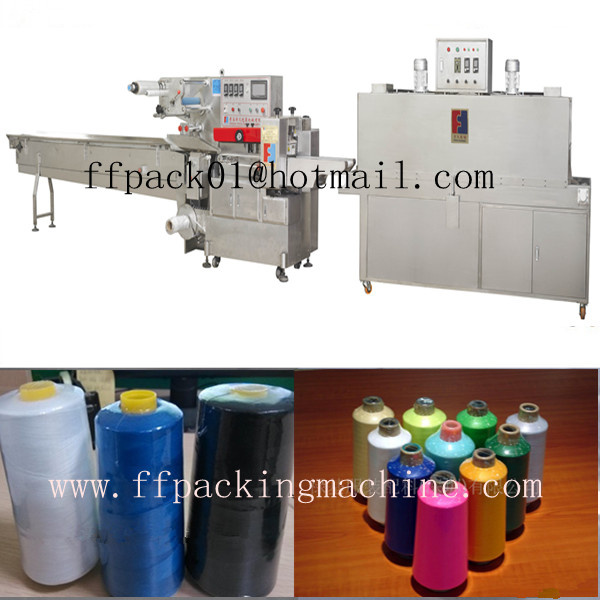

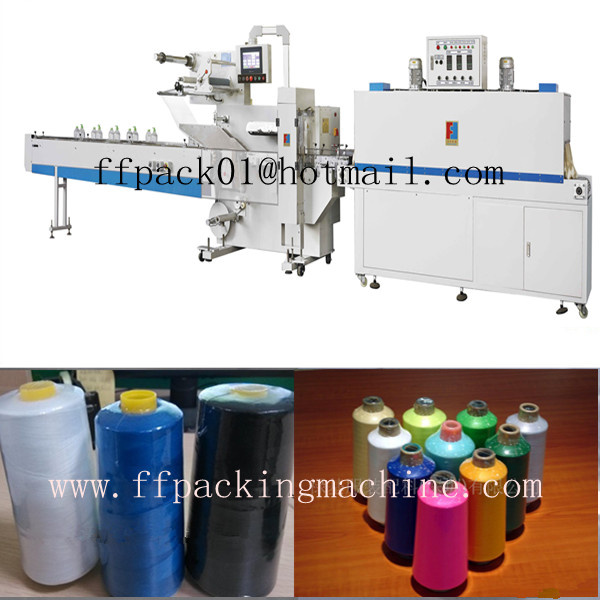

sewing thread horizontal flow packaging machine
Jpana Tokiwa technology
compact design
easy operate
Main performance and structural characteristics
1. servo motor control, bag length can be set and cut in one step, saving time and bags.
2. Computer interface operation, convenient and quick parameter setting.
3. PLC control, stable performance available for upgrade.
4. High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5. Temperature independent PID control, more suitable for packaging different materials.
6. Self failure diagnosis, clear failure display; positioned stop function, without knife sticking and film wasting.
7. Using double encoder enables stable performance.
8. Strengthened blade holder makes compact sealing
9. Optional air filling device achieves broad application.
10. Selected code system achieves credible Packaging.
11. Simple and automatic packaging achieves high speed and saving labor.
12. Optional material-cutting proof device, guarantee for using.
13. Multipurpose packaging, suitable for various packaging to similar type of product.
14. Alternative English and Chinese language display.
Model
Spec | FFB4512 | FFB4515 | FFB4518 | FFB5912 | FFB5915 | FFB5918 | FFB5921 |
| Film Width(mm) | 450 | 450 | 450 | 590 | 590 | 590 | 590 |
Size of Package
L: Length(mm)
B: Width(mm)
H: Height(mm) | L: 70-400
B: 10-150
H: 5-45 | L: 80-450
B: 10-150
H: 5-65 | L: 90-450
B: 10-150
H: 15-85 | L: 70-450
B: 10-200
H: 5-65 | L: 80-450
B: 10-200
H: 5-85 | L: 90-450
B: 10-200
H: 30-75 | L: 100-450
B: 10-200
H: 15-140 |
Packing Speed
(Bag/min ) | 30-220 | 30-150 | 30-130 | 30-180 | 30-150 | 15-120 | 30-120 |
| Dimension (mm) | 5700× 1050× 1700 | 5700× 1250× 1800 |
| Weight(kg) | 1000 | 1000 | 1000 | 1000 | 1200 | 1200 | 1200 |
| Main Power | Single phase 220V, 50HZ |
| Total Power | 3.6KW | 3.6KW | 3.6KW | 4KW | 4KW | 4KW | 4KW |
Optional device
1. Coder
2. Ruled the closure round
3. Reticulate side molding or
4. Large touch screen
