| Prod Model: |
FFB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
5700*1250*1700 |
| Colour: |
Gray |
| Material: |
Carbon Steel |
| Weight: |
1000kg |
| Automatic Grade: |
Automatic |
| Driven Type: |
Electric |
| Material Type: |
Solid |
| Packaging Material: |
Film |
| Application: |
Industrial Product |
| Forming Species: |
Film |
| Packaging Type: |
Film |
Product Description

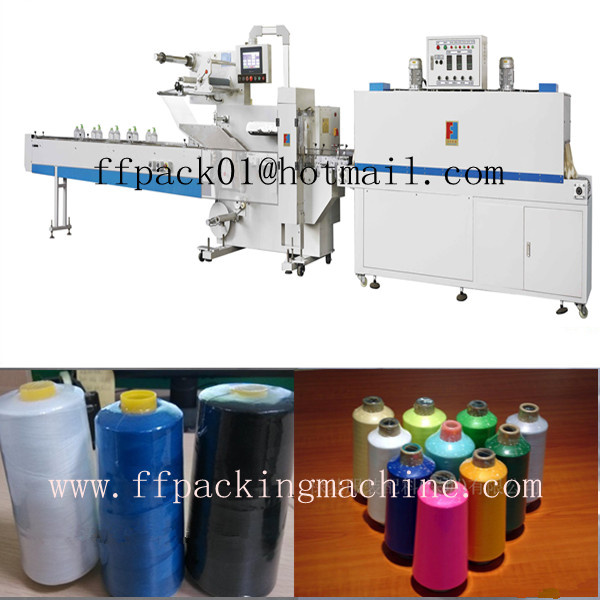

sewing thread flow packaging machine
compact design
easy operate
Main performance and structural characteristics
1. full servo motor control, bag length can be setting and cutting, without air conditioning go.
2. Man-machine interface, convenient parameter setting.
3. Self-diagnostics, fault can been seen at a glance.
4. High sensitivity photoelectric eye color tracing, digital input cut position which makes the cutting position more accurate.
5. Temperature independent PID control, and better suited to a variety of packaging materials
6. Positioned stop function, without sticking knife or wasting film.
7. Powertrain simple, it reliable, more convenient maintenance software implementation of all control posts to facilitate the function of restructuring and technological upgrading, never backward.
Optional device
1. Coder
2. Ruled the closure round
3. Reticulate side molding or
4. Large touch screen
Tecnical Data
Model
Spec | FFB4512 | FFB4515 | FFB4518 | FFB5912 | FFB5915 | FFB5918 | FFB5921 |
| Film Width(mm) | 450 | 450 | 450 | 590 | 590 | 590 | 590 |
Size of Package
L: Length(mm)
B: Width(mm)
H: Height(mm) | L: 70-400
B: 10-150
H: 5-45 | L: 80-450
B: 10-150
H: 5-65 | L: 90-450
B: 10-150
H: 15-85 | L: 70-450
B: 10-200
H: 5-65 | L: 80-450
B: 10-200
H: 5-85 | L: 90-450
B: 10-200
H: 30-75 | L: 100-450
B: 10-200
H: 15-140 |
Packing Speed
(Bag/min ) | 30-220 | 30-150 | 30-130 | 30-180 | 30-150 | 15-120 | 30-120 |
| Dimension (mm) | 5700× 1050× 1700 | 5700× 1250× 1800 |
| Weight(kg) | 1000 | 1000 | 1000 | 1000 | 1200 | 1200 | 1200 |
| Main Power | Single phase 220V, 50HZ |
| Total Power | 3.6KW | 3.6KW | 3.6KW | 4KW | 4KW | 4KW | 4KW |
As an integrated manufacturing company, Qingdao FeiFan Packing Machinery Co., Ltd mainly focuses on R&D, producing, marketing and service of the packing machine and relative supporting products. The products includes horizontal flow wrap machine, automatic shrink packing machine, cellophane overwrapping machine, reciprocating flow wrap machine and auto-feeding system. They are used intensively in the filed of food, sweets, cosmetic, and pharmaceutical industries. For example, they can be used in the packing for medicine, instant noodles, milk, bow packed noodle, biscuit, bread, cake, frozen food, paste, cosmetic products, sausage, soap, sterilized food ware, bandage, moisture, metals, paper box, medicine box and cosmetic production box and so on.
Our company always takes the quality as the life blood for living, and the man power as the base for development. We have introduced the technology & drawings and cells from developed countries. In addition, we have created computer-controlled automatic packing machine based on international advanced technology. Depending on the advanced technology and excellent after-sale service, we have established long term business relationship with both home and overseas famous companies, for whom we have been authorized to be the exclusive supplying manufacturer on packing machine.
Looking into the future, we will go on to hold the idea of honesty cooperation, develop together, insist on the spirit of honesty, integration, practice and innovation, implement the tenet of meeting your demand as our pursuit, all above as our safeguard for development.
We are looking forward to establish good cooperation for both side of development and bright future.
